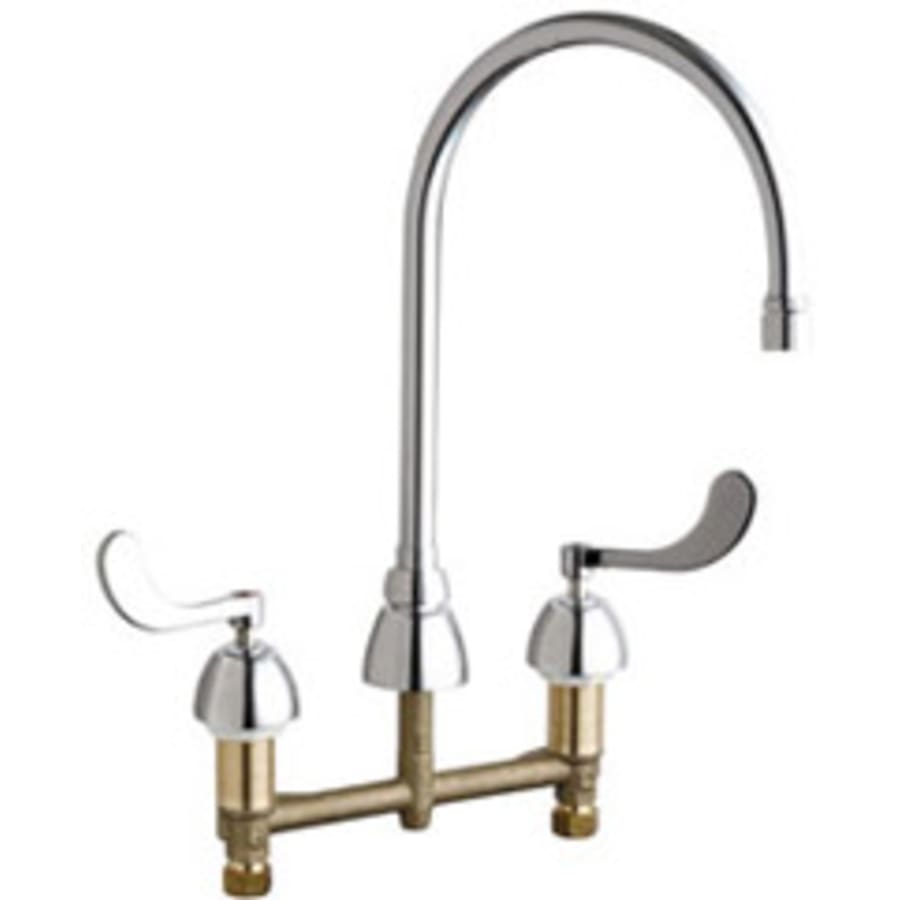

Chicago Faucets 786-GR8AE3V317XKAB hot and cold water sink faucet 2.2 GPM 8 inch fixed centers 8 inch gooseneck spout 4 inch wristblade handle

Product Description

The CHICAGO FAUCETS 786-GR8AE3V317XKAB is a hot and cold water sink faucet designed with 8-inch fixed centers. It features an 8-inch restricted swing gooseneck spout and a 2.2 GPM vandal-proof Softflo aerator. The faucet is equipped with a ceramic 1/4-turn operating cartridge and 4-inch wristblade handles, suitable for commercial applications. It includes 1/2 inch NPSM supply inlets.

• Features 8-inch fixed centers and an 8-inch restricted swing gooseneck spout.
• Equipped with a 2.2 GPM vandal-proof pressure compensating Softflo aerator.
• Includes a ceramic 1/4-turn operating cartridge and 4-inch wristblade handles.

Product Highlights

Features ECAST construction with less than 0.25% lead content, solid brass construction, and is ADA compliant.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 786-GR8AE3V317XKAB
• Country of Origin: USA

Technical Specifications

• Fixed Centers: 8 inches
• Spout Type: Gooseneck
• Spout Length: 8 inches
• Aerator Flow Rate: 2.2 GPM
• Aerator Type: Vandal Proof Pressure Compensating Softflo
• Handle Type: 4 inch Wristblade
• Cartridge Type: Ceramic 1/4-Turn Operating
• Supply Inlets: 1/2 inch NPSM
• Riser Connection: Coupling Nut for 3/8 inch or 1/2 inch Flexible Riser
• Finish: Polished Chrome
• Overall Height: 11.25 inches
• Spout Height: 6 inches
• Spout Reach: 8 inches
• Required Installation Holes: 3
• Maximum Deck Thickness: 1.375 inches
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Number of Handles: 2
• Drain Assembly Included: No
• Escutcheon Included: No
• Filtering: No
• Sidespray: No
• Soap Dispenser Included: No
• Faucet Type: Kitchen Faucet
• Handle Material: Metal
• Installation Type: Deck Mounted
• Material: Brass
• Pre Rinse: No
• Pullout Spray: No
• ADA Compliant: Yes
• Approved for Commercial Use: Yes
• ASME Code: A112.18.1
• CA Drought Compliant: No
• Certifications: ANSI, ASME, NSF, CSA
• CSA Code: B125.1
• Eco Friendly: Yes
• Lead Leaching Certified NSF/ANSI 61: Yes
• Low Lead Compliant: Yes
• Spout Swivel: 120 Degrees
