Chicago Faucets 786-GN8AE29XKABCP Series Deck-mounted Manual Faucet with 8 inches Centers

Product Description

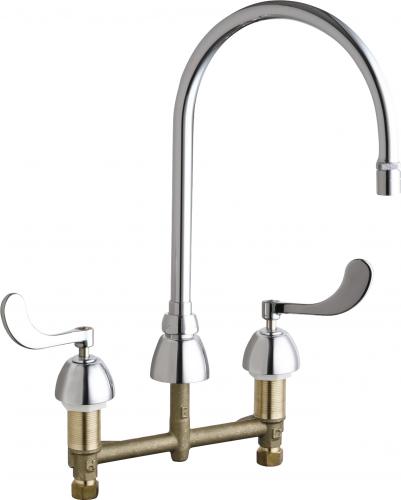

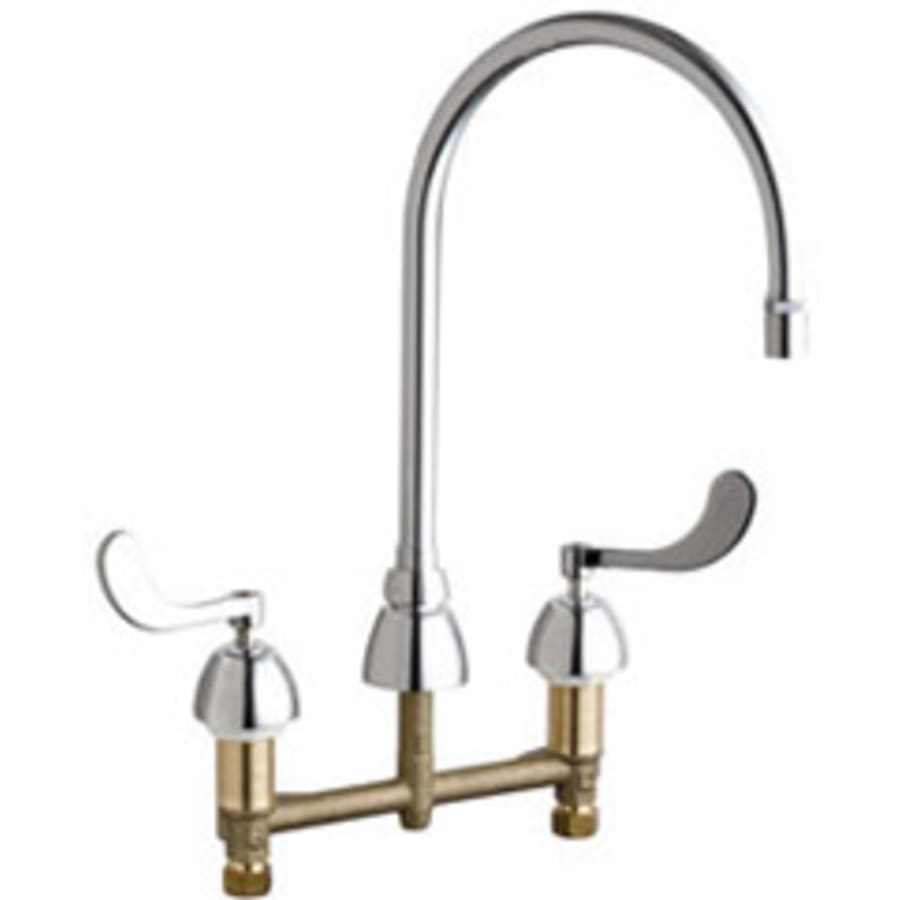

The CHICAGO FAUCETS 786-GN8AE29XKABCP is a deck-mounted manual faucet with 8" centers. It features an 8" rigid/swing gooseneck spout and a pressure compensating laminar flow non-aerating outlet at 2.2 GPM. Designed for commercial use, it includes 4" wristblade handles and ceramic 1/4-turn operating cartridges.

• Features a gooseneck spout that swivels 360 degrees for full sink access.
• Constructed from solid brass with a chrome plated finish.
• Equipped with ceramic 1/4-turn operating cartridges.

Product Highlights

This commercial grade faucet is designed for durability and ease of use, perfect for high-demand environments.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 786-GN8AE29XKABCP
• Country of Origin: USA

Technical Specifications

• 8" Rigid/swing gooseneck spout: GN8AJKABCP
• Pressure compensating laminar flow non-aerating outlet, 2.2 GPM: E29JKABCP
• 4" Wristblade handle (pair): 317-PRJKCP
• Ceramic 1/4-turn operating cartridge, left-hand: 377-XKLHJKABNF
• Ceramic 1/4-turn operating cartridge, right-hand: 377-XKRHJKABNF
• 8" fixed centers: None
• Handles include color-coded index: None
• 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser: None
• Polished chrome: None
• Manufacturer: Chicago
• Model #: 786-GN8AE29XKABCP
• Spout Type: Gooseneck
• Overall Height: 13 1/8"
• Spout Height: 7.375 in.
• Spout Reach: 8 in.
• Required Installation Holes: 3
• Flow Rate: 2.2 gallons-per-minute
• Maximum Deck Thickness: 1 3/8"
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Faucet Centers: 8 in.
• Height: 13.125 in.
• Max Deck Thickness: 1.375 in.
• Spout Swivel: 360 Degrees
• Water Connection: 1/2"
• Faucet Holes: 3
• Spout Length: 8 Inches
• Faucet Width: 16 Inches
• Faucet Height: 13 1/8 Inches
• Cartridge Type: Ceramic
• Features: ADA Compliant, NSF Certified
• Finish: Chrome
• Handle Type: Wrist
• Material: Brass
• Mounting Style: Deck Mounted
• Mounting Type: Concealed Base
• Pressure Rating: 20 - 125 PSI
• Rough In: 8 Inches
• Spout Clearance: 7 3/8 Inches
• Sprayer: Without Sprayer
• Temperature Rating: 40 - 140 Degrees F
• Type: Faucets
• Water Inlet Size: 1/2 Inches
