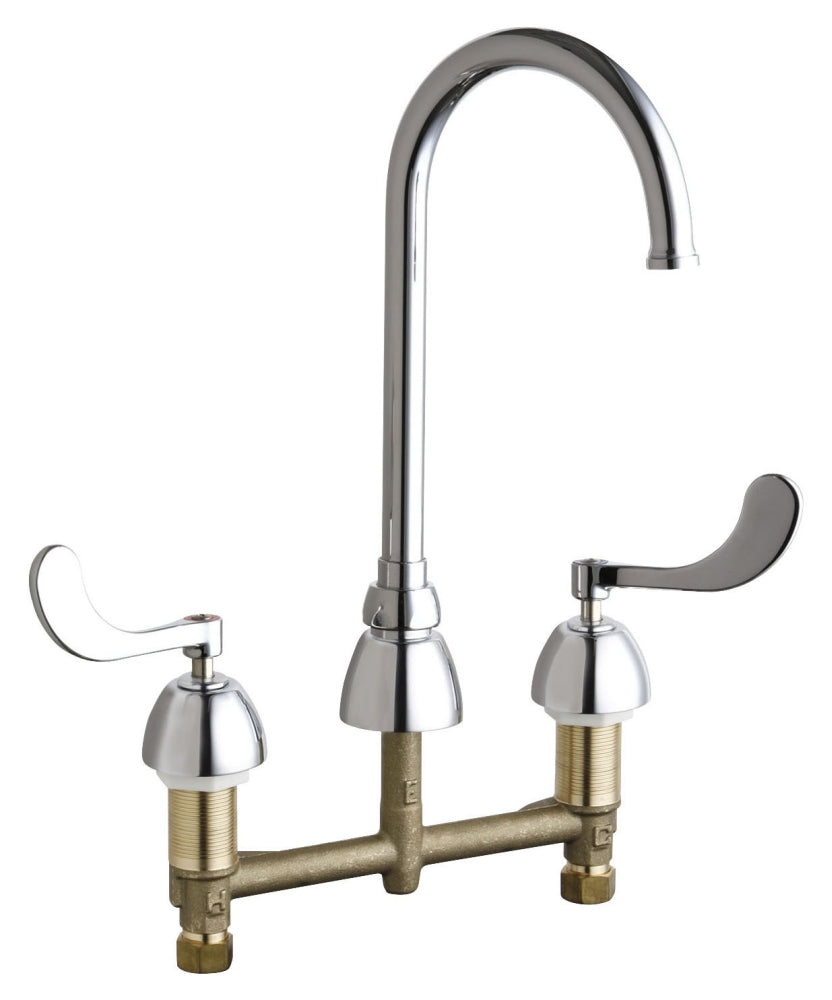

Chicago Faucets 786-GN2FCABCP Kitchen Faucet 1.5 gpm Deck Mounted

Product Description

The Chicago Faucets 786-GN2FCABCP is a two-handle bathroom sink faucet designed for deck mounting. It features a rigid gooseneck spout offering a height of eleven and five-eighths inches. The inlet size is one-half inch and the faucet operates at a flow rate of one point five gallons per minute. This model is designed for easy control with wrist blade handles, ensuring a reliable user experience.

• Deck mounted, two-handle configuration.
• Flow rate of 1.5 GPM, providing efficient water usage.
• Constructed from durable cast brass material.

Product Highlights

This faucet is compliant with ADA and various plumbing standards. It features a flow control aerator that is vandal resistant. Both spout and body are made from cast brass with a chrome plated finish for durability.

Product Information

Standard Information

• Model Number: 786-GN2FCABCP
• Manufacturer: Chicago Faucets

Technical Specifications

• Type: 2-Handle, Concealed Deck Mount
• Inlet Size: 1/2 Inch
• Spout Type: Rigid/Swing, Gooseneck

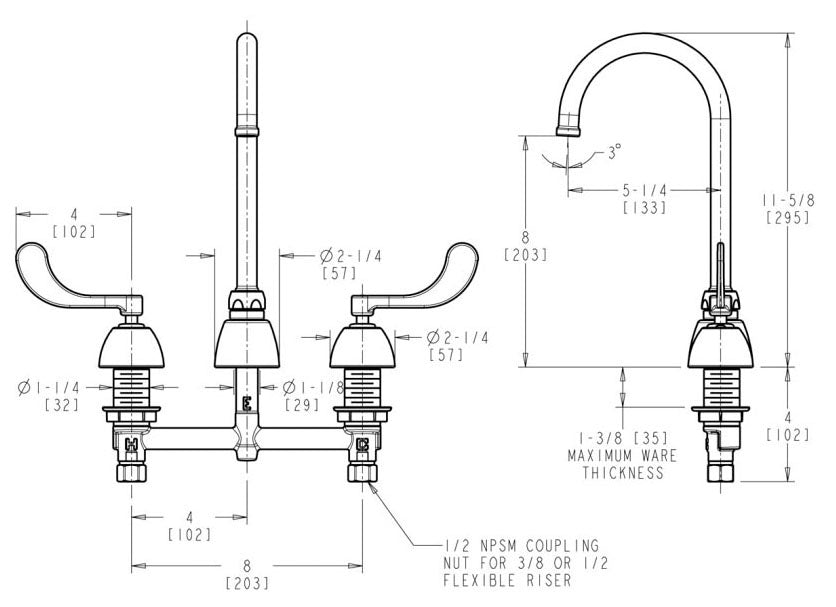

• Spout Dimensions: 11-5/8 Inch Height x 5-1/4 Inch Reach
• Handle Type: Wrist Blade, 1/4 Turn
• Body Material: Cast Brass
• Spout Material: Cast Brass
• Color/Finish: Chrome Plated
• Aerator Type: Flow Control, Vandal Resistant
• Inlet Connection: NPSM
• Faucet Hole Center: 8 Inch
• Applicable Standards: ADA, ASME A112.18.1, ICC/ANSI A117.1, CSA B125.1, NSF/ANSI 61/372
• Pressure Rating: 20 to 125 PSI
• Temperature Rating: 40 to 140 Degrees F
