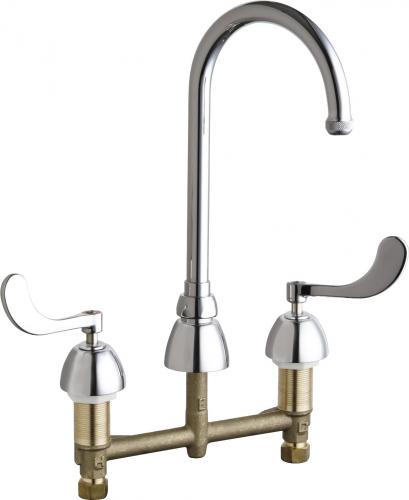

Chicago Faucets 786-GN2AFCE1ABCP 786 series deck-mounted manual faucet 1.5 GPM 8 inch centers 5-1/4 inch rigid/swing gooseneck spout

Product Description

The CHICAGO FAUCETS 786-GN2AFCE1ABCP is a deck-mounted manual faucet designed with 8-inch fixed centers. It features a 5-1/4 inch rigid/swing gooseneck spout and a Quixtop outlet with a single screen for full flow. This faucet includes 4-inch Wristblade handles and Quaturn compression operating cartridges. A 1.5 GPM laminar flow control insert is integrated into the spout inlet, with 1/2 inch NPSM supply inlets for flexible risers.

• Deck-mounted manual faucet with 8-inch fixed centers.
• Features a 5-1/4 inch rigid/swing gooseneck spout and 1.5 GPM laminar flow control.
• Equipped with 4-inch Wristblade handles and Quaturn compression operating cartridges.

Product Highlights

ADA compliant, ASME A112.18.1/CSA B125.1 compliant, and NSF/ANSI/CAN 61 compliant.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 786-GN2AFCE1ABCP
• Country of Origin: USA

Technical Specifications

• Spout Type: 5-1/4" Rigid/swing gooseneck spout (GN2AFCJKABCP)
• Outlet Type: Quixtop™ outlet with single screen design, full flow (female) (E1JKABRCF)
• Handle Type: 4" Wristblade handle (pair) (317-PRJKCP)
• Left-hand Cartridge: Quaturn® compression operating cartridge (377-XTLHJKABNF)
• Right-hand Cartridge: Quaturn® compression operating cartridge (377-XTRHJKABNF)
• Flow Rate: 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet
• Centers: 8 inches fixed
• Handle Feature: Handles include color-coded index
• Supply Inlets: 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Package Quantity: 1
• Faucet Spout Reach: 5.25"
• Application: Bathroom
• Overall Height: 11.625 in.
• Spout Height: 7.75 in.
• Required Installation Holes: 3
• Maximum Deck Thickness: 1.375 in.
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Spout Swivel: 360 Degrees
• Handle Material: Metal
• Installation Type: Deck Mounted
• Material: Brass
• Number Of Handles: 2
• Approved for Commercial Use: Yes
• Country Of Origin: USA
