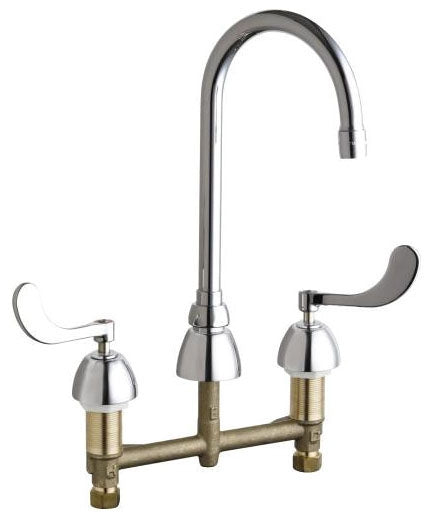

Chicago Faucets 786-E3ABCP Kitchen Faucet 2 Handle Deck Mount 1/2 Inch

Product Description

The Chicago Faucets 786-E3ABCP is a 2-handle deck-mounted kitchen faucet. It features a rigid/swing gooseneck spout with a flow rate of 2.2 GPM. This faucet is designed for kitchen sinks with fixed centers of eight inches.

• Two metal wrist blade handles
• Threaded inlet connection
• Includes a vandal-proof aerator

Product Highlights

This faucet includes a durable ECAST design, which ensures low lead content and long-lasting performance. It is compliant with various standards including ADA, ASME, and NSF.

Product Information

Standard Information

• Manufacturer: Chicago Faucets
• MPN: 786-E3ABCP

Technical Specifications

• Type: 2-Handle, Deck Mount
• Flow Rate: 2.2 GPM
• Spout Type: Rigid/Swing, Gooseneck

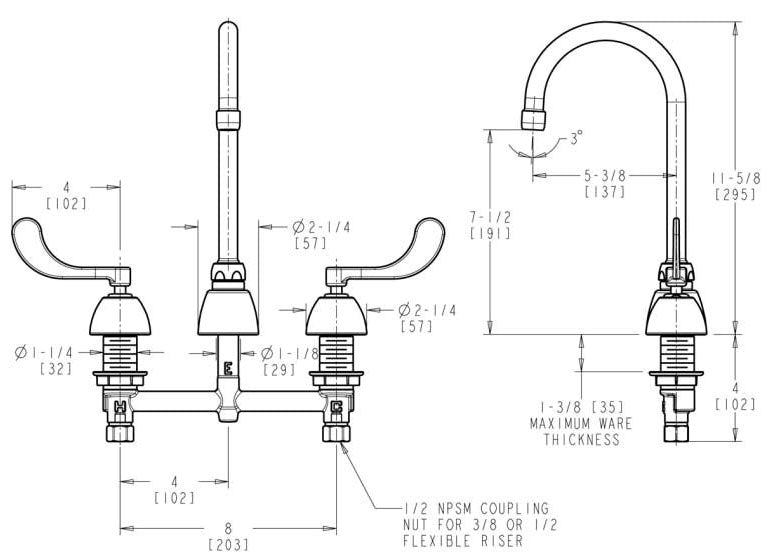

• Spout Dimensions: 11-5/8 Inch Height x 7-1/2 Inch Clearance x 5-3/8 Inch Reach
• Handle Type: Wrist Blade
• Inlet Size: 1/2 Inch
• Faucet Hole Center: 8 Inch
• Material: Brass
• Color/Finish: Chrome Plated
• Inclusions/Features: Quaturn Rebuildable Compression Cartridge, 16-Point Tapered Broach
• Applicable Standard: ADA, ASME A112.18.1/CSA B125.1, ANSI/ICC A117.1, NSF/ANSI 61/372
• Pressure Rating: 20 to 125 PSI
• Temperature Rating: 40 to 140 Deg F
