Chicago Faucets 772-LESAB sink faucet less spout

Product Description

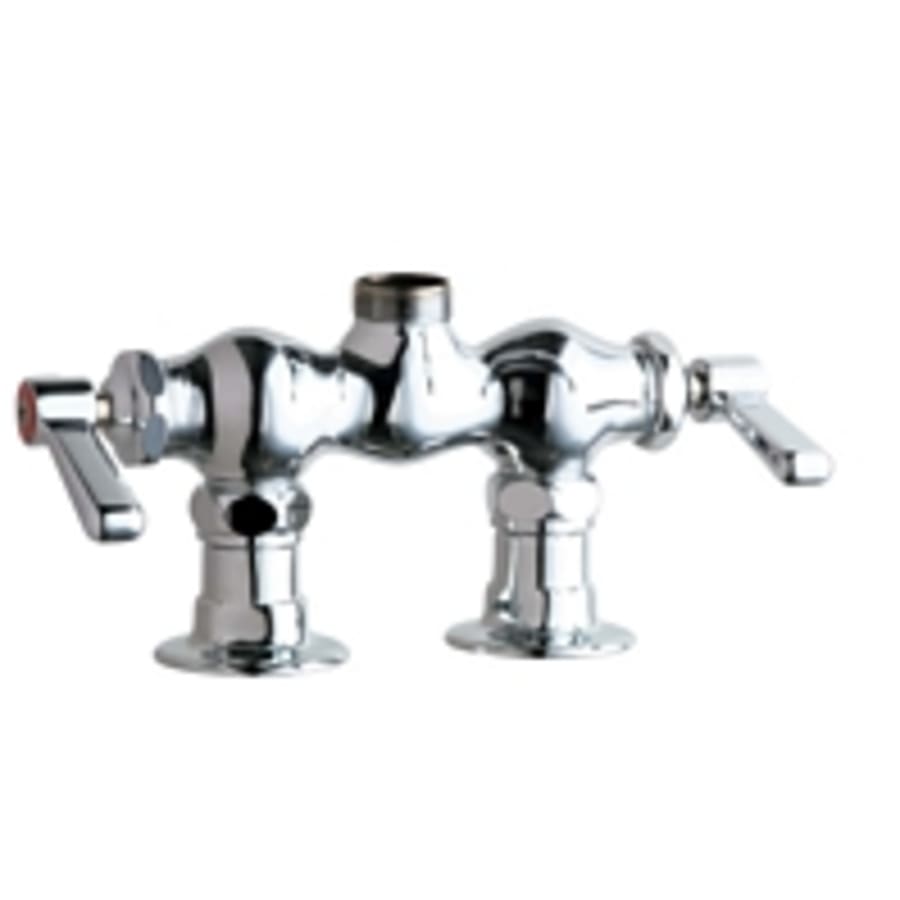

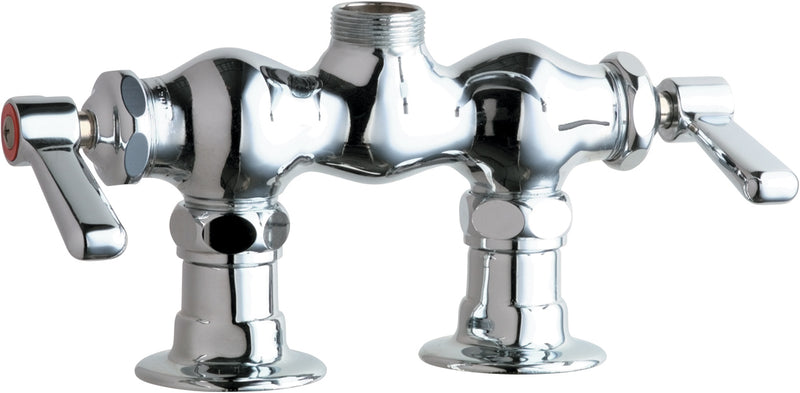

The CHICAGO FAUCETS 772-LESAB is a hot and cold water sink faucet with deck mounting and 3-3/8" fixed centers. It features a 2-3/8" lever handle and requires separate purchase of a spout. Constructed with ECAST material, it contains less than 0.25% lead content by weighted average.

• 3-3/8" Fixed Centers
• Spout Not Included (purchase separately)
• Vandal Proof 2-3/8" Lever Handle, Sixteen-Point Tapered Broach

Product Highlights

This deck-mounted service sink faucet features lever handles and a Quaturn compression operating cartridge.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 772-LESAB
• Country of Origin: USA

Technical Specifications

• Less Spout: S0
• 2-3/8" Lever handle (pair): 369-PRJKCP
• Quaturn compression operating cartridge, right-hand: 1-099XTJKABNF
• Quaturn compression operating cartridge, left-hand: 1-100XTJKABNF
• Straight 2" inlet supply arm with integral flange: WJKABCP
• 3-3/8" fixed centers: None
• Handles include color-coded index: None
• Polished chrome: None
• Brand: Chicago Faucets
• MPN: 772-LESAB
• Manufacturer: Chicago
• Model #: 772-LESAB
• Required Installation Holes: 2
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Connection: 1/2"
• Faucet Centers: 3.375 in.
• Water Connection: 1/2"
• Faucet Holes: 2
