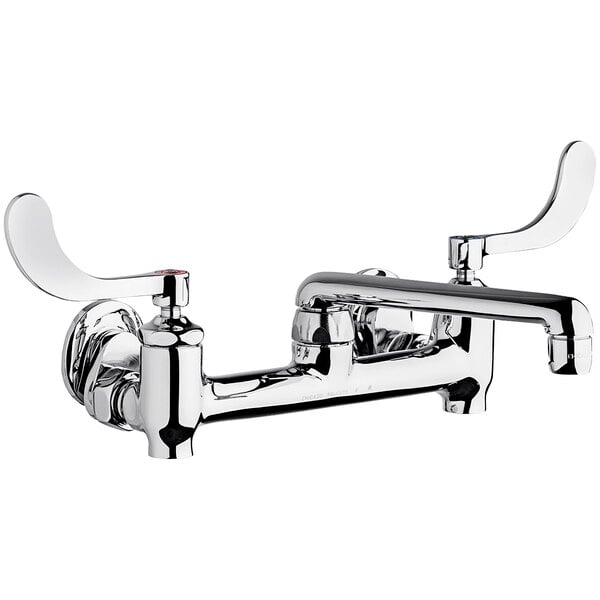

Chicago Faucets 640-S6E35-317YAB Series Wall-Mounted Manual Faucet 1.5 GPM

Product Description

The CHICAGO FAUCETS 640-S6E35-317YAB is a wall-mounted manual faucet with adjustable centers. It features a 6" S-type swing spout and a 1.5 GPM pressure compensating Softflo aerator. The faucet also includes 4" wristblade handles with a color-coded hot and cold index to easily maintain a comfortable water temperature.

• 6" S-type swing spout with 1.5 GPM Softflo aerator
• 4" wristblade handles with color-coded index
• Wall mounting saves space and allows for easy maintenance

Product Highlights

This polished chrome faucet is easy to install and simple to maintain. It features a 7/8" offset inlet supply arm with a 1/2" NPT female thread inlet.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 640-S6E35-317YAB

Technical Specifications

• Spout: 6" S-type swing spout (S6LEOJKAB)
• Aerator: Pressure compensating Softflo aerator, 1.5 GPM (E35JKABCP)
• Handles: 4" Wristblade handle (pair) (317-PRJKCP)
• Cartridge, right-hand: Ceramic 1/4-turn operating cartridge, right-hand (1-099XKJKABNF)
• Cartridge, left-hand: Ceramic 1/4-turn operating cartridge, left-hand (1-100XKJKABNF)
• Body: 8"
• Inlet: 7/8" offset inlet supply arm with 1/2" NPT female thread inlet
• Finish: Polished chrome
• Adjustable Arms: 7-1/4" - 8-3/4"
• Handle: 317-PR - Vandal Proof 4" Wristblade Handle, Sixteen-Point Tapered Broach
• Cartridge: Ceramic 1/4-Turn Operating Cartridge
• Inlet Supply Arm: 7/8" Offset Inlet Supply Arm with 1/2" NPT Female Thread Inlet
• Slip Flange: 2-5/16" Diameter Slip Flange
• Features: Integral Stop Valves for Servicing the product
• Construction: ECAST construction with equal to or less than 0.25% lead content by weighted average
• Center Distance: 6-1/4 to 9-3/4 in
• Commercial/Residential: Commercial
• Connection Size: 1/2 in
• Connection Type: FNPT
• Flow Rate: 1.5 gpm
• Handle Type: Lever
• Material: Brass
• Mounting Type: Wall
• Number of Faucet Holes: 2
• Number of Handles: 2
• Side Spray(Y/N): No
• Spout Height: 2-1/2 in
• Spout Reach: 6 in
• Spout Type: Swivel
• Spray Pattern: Aerated
• Valve/Cartridge Type: Ceramic Quarter Turn
• Spout Length: 6 Inches
• Faucet Width: 16 Inches
• Faucet Height: 2 1/2 Inches
• Cartridge Type: Ceramic
• Faucet Centers: 8 Inches
• ADA Compliant: ADA Compliant
• Mounting Style: Wall Mounted
• Pressure Rating: 125 PSI
• Rough In: 8 Inches
• Spout Clearance: 1 Inch
• Temperature Rating: 140 Degrees F
• Type: Faucets
• Water Inlet Size: 1/2 Inches
