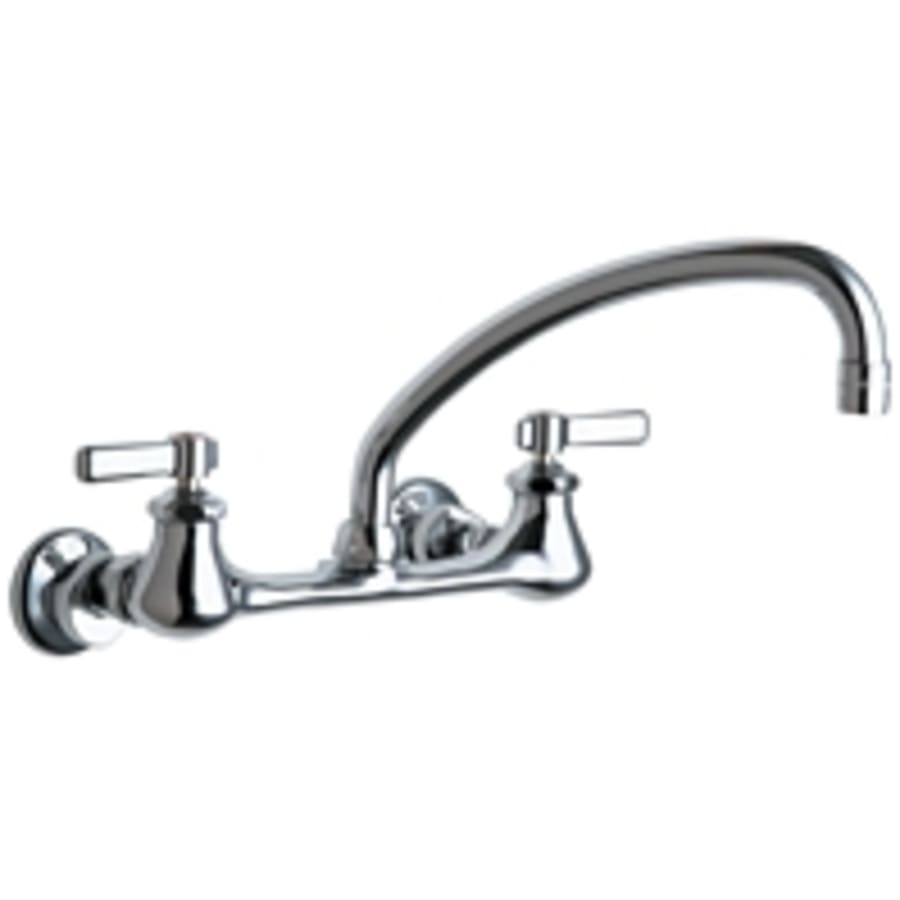

Chicago Faucets 540-LDL9E35ABCP Wall-Mounted Manual Faucet 1.5 GPM

Product Description

The CHICAGO FAUCETS 540-LDL9E35ABCP is a wall-mounted manual faucet with adjustable centers. It features an adjustable arm with 7-1/4" - 8-3/4" centers. Designed with a 9 1/2" L-type swing spout, this faucet combines functionality with style. The unit is equipped with a pressure compensating Softflo aerator that releases a soft, non-splashing flow of water at 1.5 GPM.

• Wall-mounted manual faucet with adjustable centers
• Adjustable arms 7-1/4" - 8-3/4" centers
• ADA Compliant

Product Highlights

This commercial grade faucet is manufactured with quality materials and is ADA and low lead compliant.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 540-LDL9E35ABCP
• Country of Origin: USA

Technical Specifications

• Spout: 9-1/2" L-type swing spout (L9LEOJKAB)
• Aerator: Pressure compensating Softflo aerator, 1.5 GPM (E35JKABCP)
• Handles: 2-3/8" Lever handle (pair) (369-PRJKCP)
• Cartridge, Right-Hand: Quaturn compression operating cartridge, right-hand (1-099XTJKABNF)
• Cartridge, Left-Hand: Quaturn compression operating cartridge, left-hand (1-100XTJKABNF)
• Supply Arm: 3/8" Offset inlet supply arm (GJKABCP)
• Body: 8" body, adjustable arms 7-1/4" - 8-3/4" centers
• Inlet: 1/2" NPT female thread inlet
• Finish: Polished chrome
• Handles include: color-coded index
• Spout Length: 9 1/2 Inches
• Faucet Width: 12 3/4 Inches
• Faucet Height: 6 5/8 Inches
• Cartridge Type: Compression
• Faucet Centers: 8 Inches
• Features: ADA Compliant
• Flow Rate: 1.5 GPM
• Handle Type: Lever
• Material: Brass
• Mounting Style: Wall Mounted
• Mounting Type: Adjustable
• Pressure Rating: 125 PSI
• Rough In: 8 Inches
• Spout Clearance: 4 1/4 Inches
• Spout Type: Swing
• Temperature Rating: 140 Degrees F
• Type: Faucets
• Water Inlet Size: 1/2 Inches
• Overall Height: 6 5/8" (measured from mounting surface to highest point on faucet)
• Spout Height: 4 1/4" (measured from mounting surface to spout outlet)
• Spout Reach: 9 1/2" (measured from center of faucet body to center of spout outlet)
• Required Installation Holes: 2
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Connection: 1/2" Connection - designed for use with standard U.S. plumbing supply bibs
• Application: Kitchen
• Special Features: Lead-Free
• Style: Lever Handle
• Installation Type: Wall Adjustable 7-1/4 - 8-3/4 in
• Brand: Chicago Faucets
• Model: 540-LDL9E35ABCP
• Buy American Act Compliant: Yes
