Chicago Faucets 540-LDL8E35ABCP Series Wall-mounted Manual Faucet with Adjustable Centers

Product Description

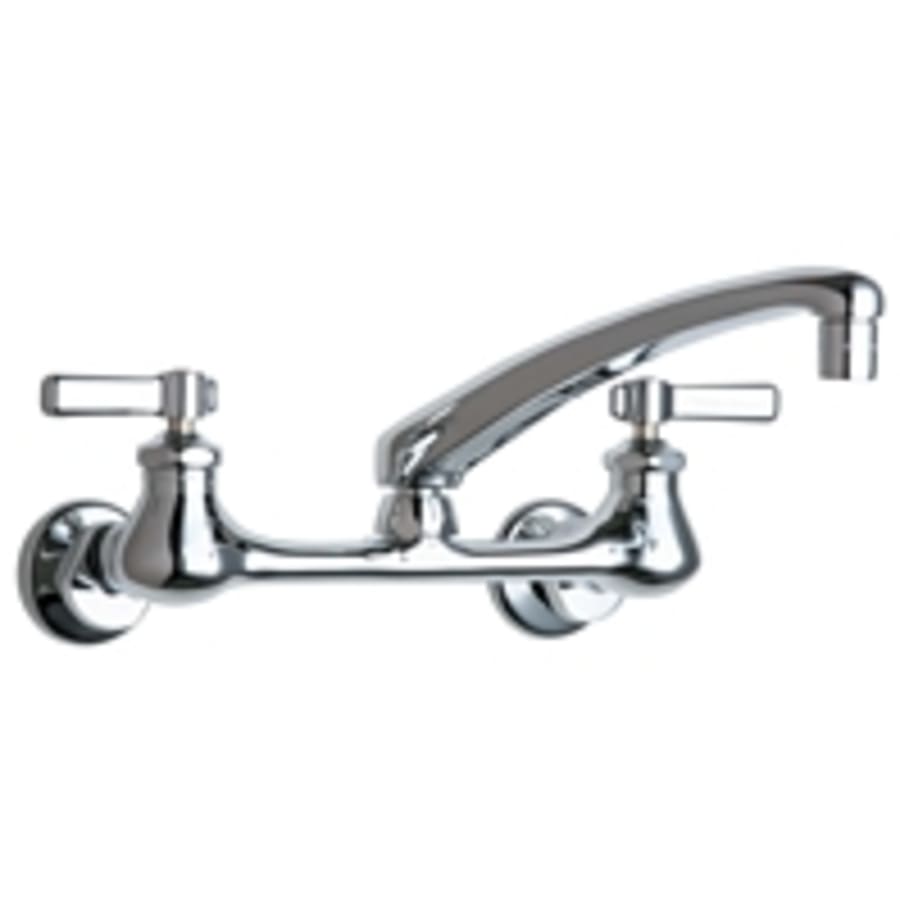

The CHICAGO FAUCETS 540-LDL8E35ABCP is a wall-mounted manual faucet with adjustable centers. It features an 8" L-type swing spout and a pressure compensating Softflo aerator with a 1.5 GPM flow rate. The faucet includes 2-3/8" lever handles and Quaturn compression operating cartridges for both right and left-hand operation.

• Adjustable Centers
• Wall-mounted
• Durable, cast brass construction

Product Highlights

This wall-mounted manual faucet is designed for commercial use and is ADA compliant. It features solid brass construction and a polished chrome finish.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 540-LDL8E35ABCP
• Country of Origin: USA

Technical Specifications

• Spout: 8" L-type swing spout (L8LEOJKAB)
• Aerator: Pressure compensating Softflo aerator, 1.5 GPM (E35JKABCP)
• Handles: 2-3/8" Lever handle (pair) (369-PRJKCP)
• Cartridge, Right-Hand: Quaturn compression operating cartridge, right-hand (1-099XTJKABNF)
• Cartridge, Left-Hand: Quaturn compression operating cartridge, left-hand (1-100XTJKABNF)
• Supply Arm: 3/8" Offset inlet supply arm (GJKABCP)
• Body: 8" body, adjustable arms 7-1/4" - 8-3/4" centers
• Inlet: 1/2" NPT female thread inlet
• Finish: Polished chrome
• Spout Length: 8 Inches
• Faucet Width: 12 3/4 Inches
• Faucet Height: 4 3/4 Inches
• Cartridge Type: Compression
• Faucet Centers: 8 Inches
• Features: ADA Compliant
• Flow Rate: 1.5 GPM
• Handle Type: Lever
• Material: Brass
• Mounting Style: Wall Mounted
• Mounting Type: Adjustable
• Pressure Rating: 125 PSI
• Rough In: 8 Inches
• Spout Clearance: 3 1/4 Inches
• Spout Type: Swing
• Temperature Rating: 140 Degrees F
• Type: Faucets
• Water Inlet Size: 1/2 Inches
• Overall Height: 4 3/4" (measured from mounting surface to highest point on faucet)
• Spout Height: 3.25 in.
• Spout Reach: 8 in.
• Required Installation Holes: 2
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Handles Included: Yes
• Water Connection: 1/2" Connection - designed for use with standard U.S. plumbing supply bibs
• Flow Rate (GPM): 1.5
• Height: 4.75 in.
• Valve Included: Yes
• Faucet Holes: 2
• Handle Material: Metal
• Installation Type: Wall Mounted
• Number Of Handles: 2
• Valve Type: Ceramic Disc
• ADA: Yes
• Approved for Commercial Use: Yes
• ASME Code: A112.18.1
• Certifications: NSF, ANSI, ASME, CSA
• CSA Code: B125.1
• Eco Friendly: Yes
• Lead Leaching Certified NSF/ANSI 61: Yes
• Low Lead Compliant: Yes
• Made in America: Yes
• Manufacturer: Chicago
• Model #: 540-LDL8E35ABCP
• Application: Kitchen
• Special Features: Lead-Free
• Style: Lever Handle
