Chicago Faucets 540-LDGN8AE35ABCP 540 Series Wall-mounted Manual Faucet with Adjustable Centers

Product Description

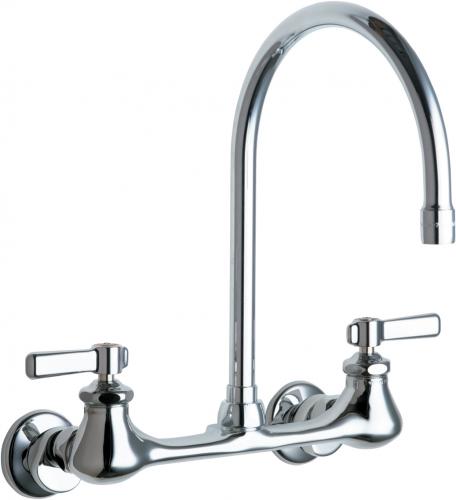

The CHICAGO FAUCETS 540-LDGN8AE35ABCP is a wall-mounted manual faucet with adjustable centers. It features an 8" rigid/swing gooseneck spout and a pressure compensating Softflo aerator with 1.5 GPM. The faucet also includes lever handles with color-coded index and Quaturn compression operating cartridges for both right and left-hand operation.

• Features handles with color-coded index
• ADA ANSI/ICC A117.1 compliant
• Certified to WaterSense by ICC-ES

Product Highlights

This manual faucet features adjustable centers, a gooseneck spout, and vandal-proof lever handles, making it suitable for commercial and public restroom applications.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 540-LDGN8AE35ABCP

Technical Specifications

• Spout: 8" Rigid/swing gooseneck spout (GN8AJKABCP)
• Aerator: Pressure compensating Softflo aerator, 1.5 GPM (E35JKABCP)
• Handles: 2-3/8" Lever handle (pair) (369-PRJKCP)
• Cartridge (Right): Quaturn compression operating cartridge, right-hand (1-099XTJKABNF)
• Cartridge (Left): Quaturn compression operating cartridge, left-hand (1-100XTJKABNF)
• Inlet Supply Arm: 3/8" Offset inlet supply arm (GJKABCP)
• Body: 8" body, adjustable arms 7-1/4" - 8-3/4" centers
• Inlet: 1/2" NPT female thread inlet
• Finish: Polished chrome
• Style: Lever Handle
• Flow Rate: 1.5 gpm
• Aerator Flow Rate: 1.5 GPM
• Brand: Chicago Faucet
• Center Distance: 8 in
• Connection Size: 1/2 in
• Connection Type: FNPT
• Material: Cast Brass
• Mounting Type: Wall
• Spout Height: 6 in
• Spout Reach: 8 in
• Spout Type: Rigid/Swivel Gooseneck
• Spray Pattern: Aerated
• Valve/Cartridge Type: Quaturn Compression
