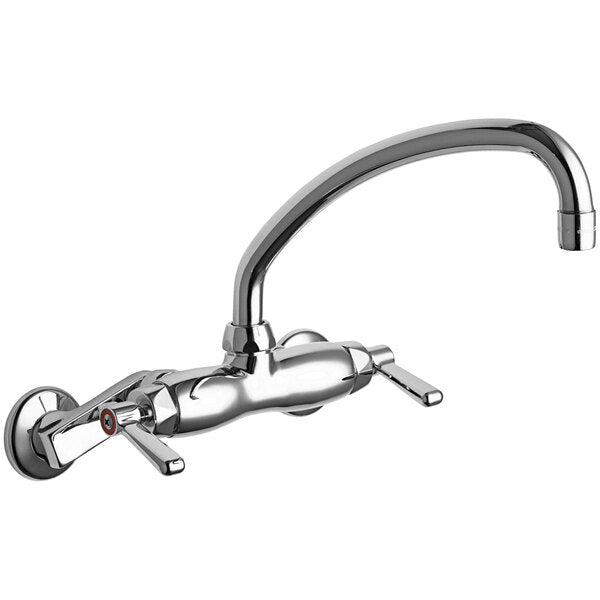

Chicago Faucets 445-L9E35ABCP Wall-mounted Manual Faucet 1.5 GPM

Product Description

The CHICAGO FAUCETS 445-L9E35ABCP is a wall-mounted manual faucet with adjustable centers. Features a 9-1/2" L-type swing spout and a pressure compensating Softflo aerator with a 1.5 GPM flow rate. Includes 2-3/8" lever handles and Quaturn compression operating cartridges. Designed with a 3-3/8" body and adjustable arms for 3" - 8-3/8" centers.

• Wall-mounted manual faucet with adjustable centers
• 9-1/2" L-type swing spout
• Pressure compensating Softflo aerator, 1.5 GPM

Product Highlights

Wall-mounted faucet with L-type swing spout, Softflo aerator, lever handles and Quaturn compression operating cartridges.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 445-L9E35ABCP
• Country of Origin: USA

Technical Specifications

• Spout: 9-1/2" L-type swing spout (L9LEOJKAB)
• Aerator: Pressure compensating Softflo aerator, 1.5 GPM (E35JKABCP)
• Handles: 2-3/8" Lever handle (pair) (369-PRJKCP)
• Cartridge, Right-hand: Quaturn compression operating cartridge, right-hand (1-099XTJKABNF)
• Cartridge, Left-hand: Quaturn compression operating cartridge, left-hand (1-100XTJKABNF)
• Inlet supply arm: 2-1/2" Offset inlet supply arm (HJKABCP)
• Body: 3-3/8" body, adjustable arms 3" - 8-3/8" centers
• Handle Index: Handles include color-coded index
• Finish: Polished chrome
• Overall Height: 7 1/4" (measured from mounting surface to highest point on faucet)
• Spout Height: 4 5/8" (measured from mounting surface to spout outlet)
• Spout Reach: 8" (measured from center of faucet body to center of spout outlet)
• Required Installation Holes: 2
• Flow Rate: 1.5 gpm
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Connection: 1/2"
• Faucet Centers: 3 - 8 3/8 Inches
• Water Connection: 1/2"
• Spout Length: 9 1/2 Inches
• Faucet Height: 7 1/8 Inches
• Cartridge Type: Compression
• Features: ADA Compliant
• Material: Brass
• Mounting Style: Wall Mounted
• Mounting Type: Adjustable
• Pressure Rating: 125 PSI
• Rough In: Adjustable
• Spout Clearance: 4 5/8 Inches
• Spout Type: Swing
• Temperature Rating: 140 Degrees F
• Type: Faucets
• Water Inlet Size: 1/2 Inches
• Brand: CHICAGO FAUCETS
• Product Type: Faucet
• Center Distance: 8 in
• Commercial/Residential: Commercial
• Connection Size: 1/2 in
• Connection Type: FNPT
• Domestic/Import: Domestic
• Valve/Cartridge Type: Quaturn Compression
