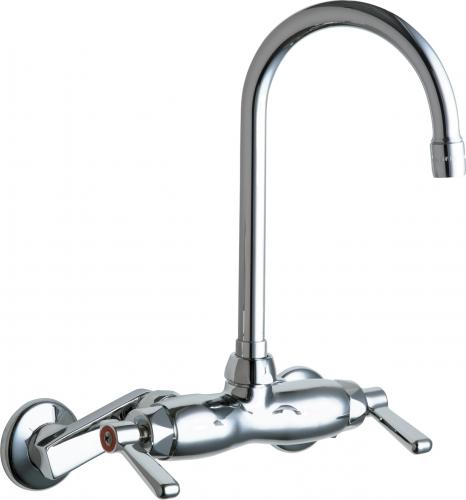

Chicago Faucets 445-GN2AE3ABCP Sink Faucet 5-1/4 inches Gooseneck Spout

Product Description

The CHICAGO FAUCETS 445-GN2AE3ABCP is a wall-mounted manual faucet with adjustable centers. It features a 3-3/8" body with adjustable arms from 3" - 8-3/8" centers and a 5-1/4" rigid/swing gooseneck spout. Designed for durability and reliability, this commercial-grade faucet is suitable for kitchen applications.

• Equipped with a pressure compensating Softflo aerator, 2.2 GPM.
• Features 2-3/8" lever handles with color-coded index.
• Constructed with ECAST with equal to or less than 0.25% lead content by weighted average.

Product Highlights

This faucet is ADA and low lead compliant, ensuring safe and easy operation. Its Quaturn cartridge allows for quarter-turn operation, reducing wear and drips.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 445-GN2AE3ABCP
• Country of Origin: USA

Technical Specifications

• Spout: 5-1/4" Rigid/swing gooseneck spout (GN2AJKABCP)
• Aerator: Pressure compensating Softflo aerator, 2.2 GPM (E3JKABCP)
• Handles: 2-3/8" Lever handle (pair) (369-PRJKCP)
• Cartridge, right-hand: Quaturn compression operating cartridge, right-hand (1-099XTJKABNF)
• Cartridge, left-hand: Quaturn compression operating cartridge, left-hand (1-100XTJKABNF)
• Inlet supply arm: 2-1/2" Offset inlet supply arm (HJKABCP)
• Body: 3-3/8" body, adjustable arms 3" - 8-3/8" centers
• Handles include: color-coded index
• Finish: Polished chrome
• Package Quantity: 1
• Mounting: Wall-Mounted
• Application: Kitchen
• Flow Rate: 2.2 gpm
• Style: Lever Handle
• Spout Height: 6-1/2" (measured from bottom of spout to outlet)
• Spout Reach: 5-3/8" (measured from center of faucet body to cneter of spout outlet)
• Required Installation Holes: 2
• Faucet Centers: 3"-8" (center-to-center distance between installation holes)
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140 degrees Fahrenheit
• Connection: 1/2" - designed for use with standard U.S. plumbing supply bibs
• Center Distance: 3-3/8 in
• Commercial/Residential: Commercial
• Connection Size: 1/2 in
• Connection Type: FNPT
• Domestic/Import: Domestic
• Material: Brass
• Number of Faucet Holes: 2
• Number of Handles: 2
• Side Spray(Y/N): No
• Spout Type: Gooseneck
• Spray Pattern: Aerated
• Valve/Cartridge Type: Quaturn Compression
• Wall Flange: 2-5/16" included
• Product Type: Bathroom Sink Faucet
• Lever Handles: 2-3/8" included with faucet
