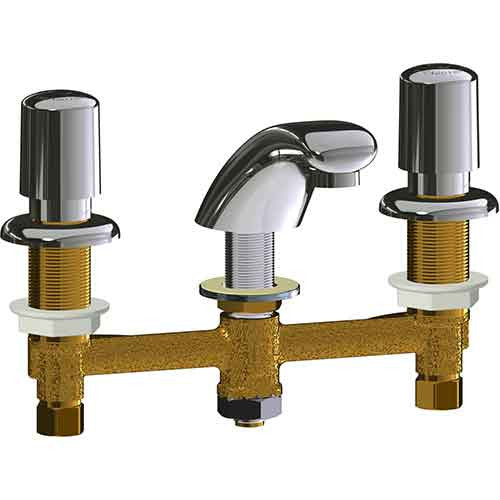

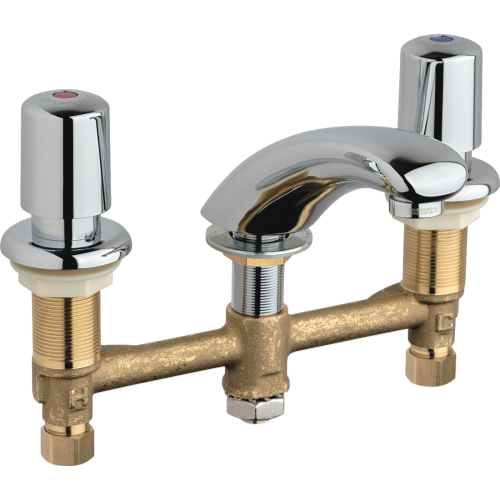

Chicago Faucets 404-VE2805-765ABCP Series Deck-Mounted Metering Faucet 8 inches Centers

Product Description

The CHICAGO FAUCETS 404-VE2805-765ABCP is a deck-mounted metering faucet with 8" centers. It features a pressure-compensating Econo-Flo non-aerating laminar spray, operating at 0.5 GPM. The faucet includes a 2" MVP metering push handle and an MVP metering cartridge and actuator. Designed for concealed hot and cold water, it's ideal for lavatory applications.

• Pressure compensating Econo-Flo non-aerating laminar spray, 0.5 GPM
• 0.25 gal/cycle (0.95 L/cycle) max
• 2" MVP metering push handle (pair)

Product Highlights

Deck-mounted metering faucet with 8" centers, Econo-Flo spray, and MVP metering push handle.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 404-VE2805-765ABCP

Technical Specifications

• Pressure compensating: Econo-Flo non-aerating laminar spray, 0.5 GPM (E2805JKABCP)
• Cycle: 0.25 gal/cycle (0.95 L/cycle) max.
• Handle: 2" MVP metering push handle (pair) (765-PRJKCP)
• Cartridge: MVP metering cartridge and actuator (667-780KJKABNF)
• Centers: 8" fixed centers
• Inlets: 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Package Quantity: 1
• Manufacturer Part Number: 404-VE2805-765ABCP
• Brand: Chicago Faucets
• Spray: Pressure compensating Econo-Flo non-aerating laminar spray, 0.5 GPM (E2805JKABCP)
• Product Type: Item
