Chicago Faucets 404-E70-317XKABCP Series Deck-mounted Manual Faucet 0.5 GPM

Product Description

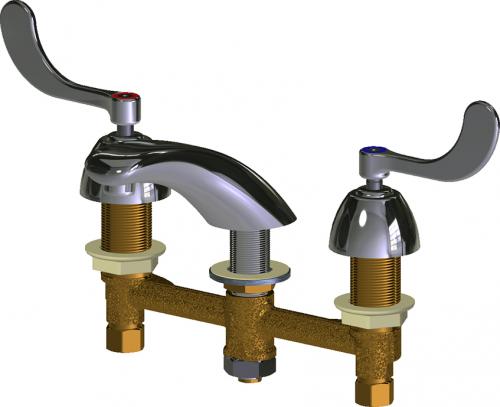

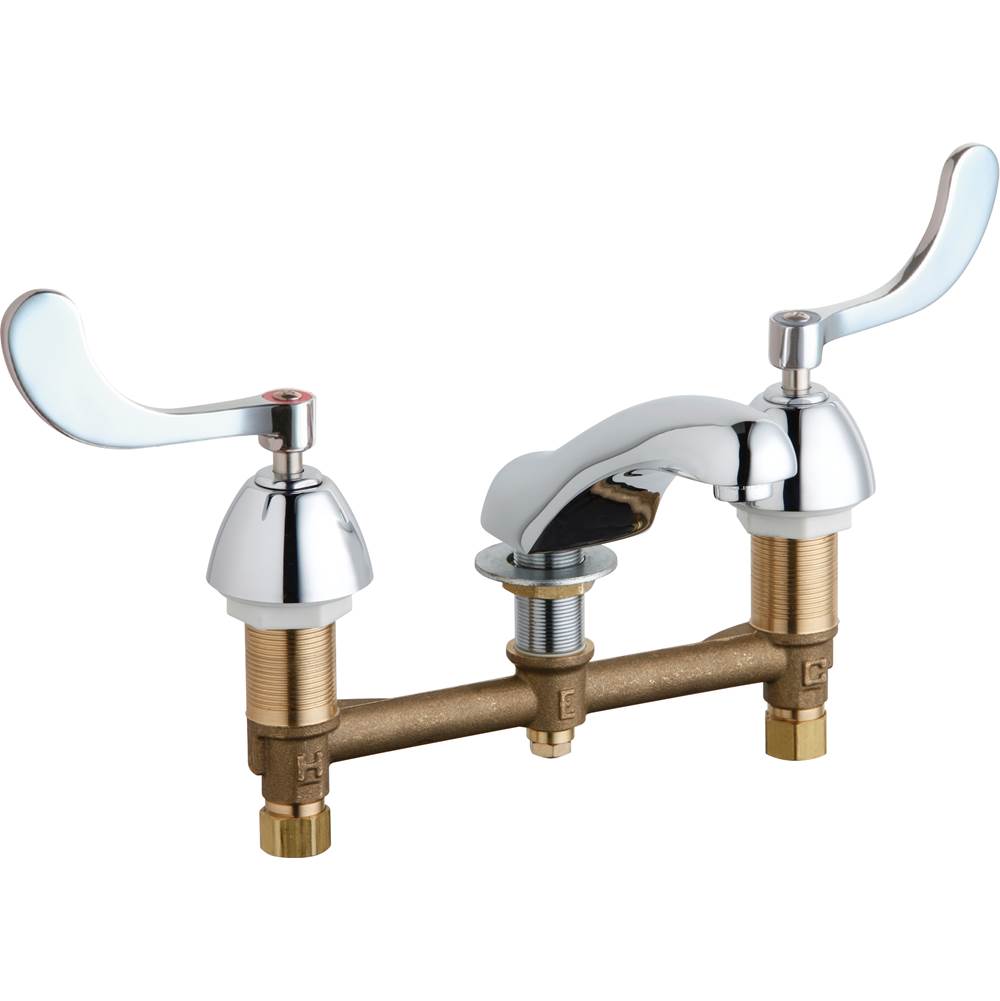

The CHICAGO FAUCETS 404-E70-317XKABCP is a deck-mounted manual faucet with 8" fixed centers. This hot and cold water sink faucet features a 0.5 GPM pressure compensating non-aerating laminar flow outlet and 4" wristblade handles. It also includes ceramic 1/4-turn operating cartridges for both the left and right-hand sides.

• Features 8" fixed centers.
• Equipped with a 0.5 GPM non-aerating laminar outlet.
• Includes vandal-proof 4" wristblade handles.

Product Highlights

This Chicago Faucets manual faucet is designed for concealed hot and cold water sink applications, offering durability and precise water control.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 404-E70-317XKABCP

Technical Specifications

• Pressure compensating non-aerating laminar flow outlet: 0.5 GPM (E70JKABCP)
• 4" Wristblade handle (pair): (317-PRJKCP)
• Ceramic 1/4-turn operating cartridge, left-hand: (377-XKLHJKABNF)
• Ceramic 1/4-turn operating cartridge, right-hand: (377-XKRHJKABNF)
• 8": fixed centers
• Handles include: color-coded index
• 1/2" NPSM supply inlets and coupling nut for: 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Centers: 8" Fixed Centers
• Spout: 5" Center to Center Rigid Cast Brass Spout
• Outlet: 0.5 GPM (1.9 L/min) Non-Aerating Laminar Outlet
• Handle: Vandal Proof 4" Wristblade Handle, Sixteen-Point Tapered Broach
• Cartridge: Ceramic 1/4-Turn Operating Cartridge
• Inlets: 1/2" NPSM Supply Inlets and Coupling Nut for 3/8" or 1/2" Flexible Riser
• Style: Wristblade Handle
• Flow Rate: 0.5 gpm
