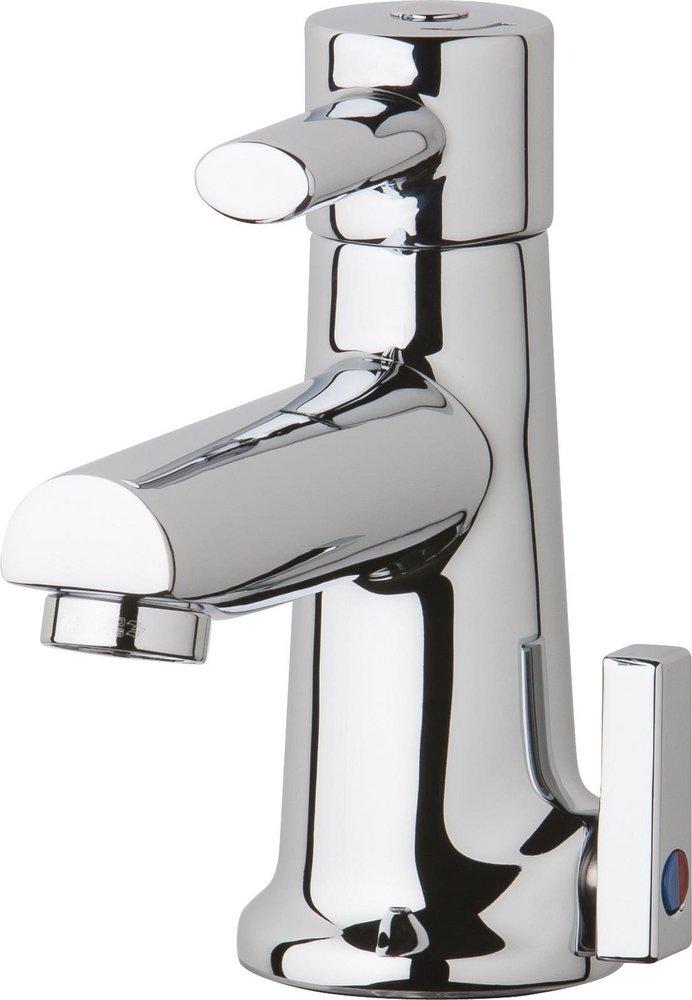

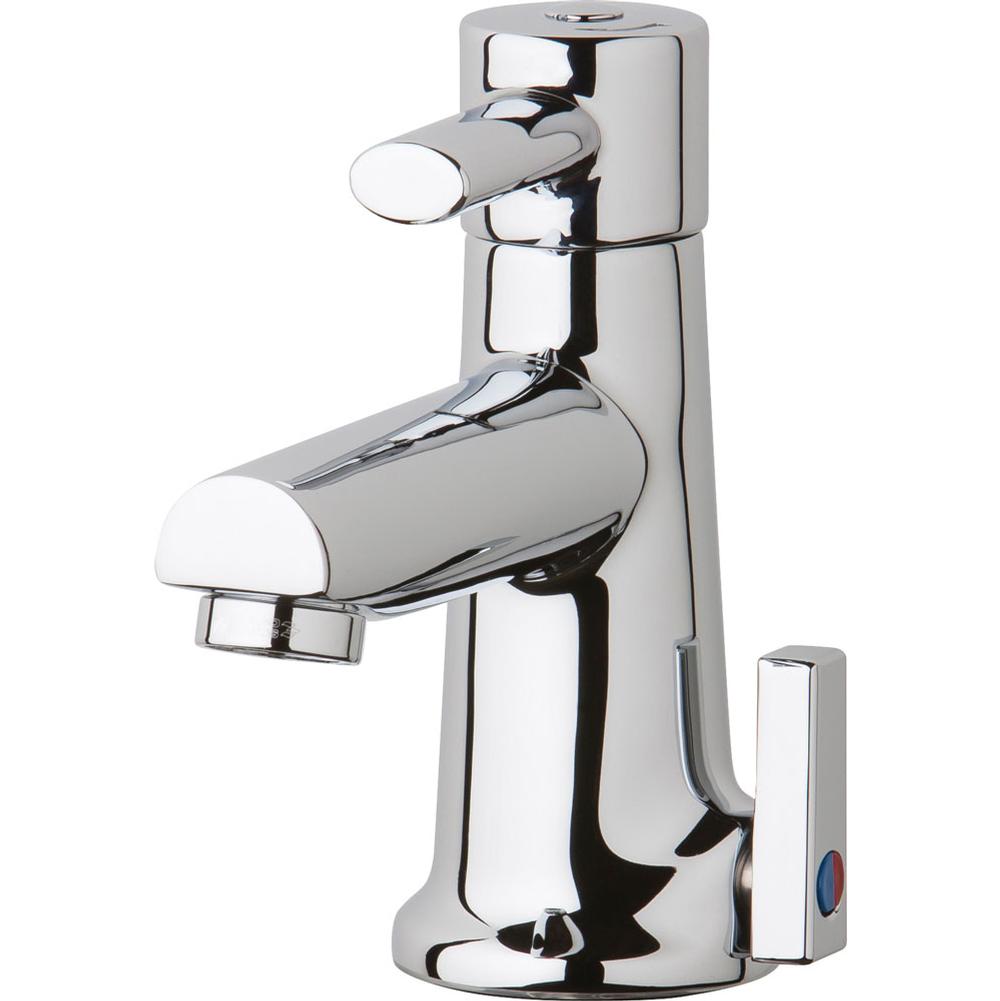

Chicago Faucets 3512-E2805AB Series Deck-mounted Manual Faucet 0.5 GPM

Product Description

The CHICAGO FAUCETS 3512-E2805AB is a deck-mounted manual faucet with single-hole mounting. It features a pressure compensating Econo-Flo non-aerating laminar spray, a ceramic 1/4-turn operating cartridge, and a user-adjustable temperature control mixer. Designed for commercial and residential applications, this faucet combines quality materials and workmanship.

• Single-hole mounting with side valve
• Dual supply for hot and cold water service with flexible hoses
• User adjustable temperature control mixer

Product Highlights

This faucet is ADA and lead law compliant. It is suitable for both commercial and residential use.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 3512-E2805AB

Technical Specifications

• Pressure compensating Econo-Flo non-aerating laminar spray: 0.5 GPM (E2805JKABCP)
• Handle kit: 2-1/2" Lever handle kit for 3510 Series (3500-015JKCP)
• Cartridge: Ceramic 1/4-turn operating cartridge, left-hand (377-XKLHJKABNF)
• Temperature control: User Adjustable Temperature Control Mixer with Hot Water Adjustment Limit Stop (up to 85% / 95% of Available Hot Water)
• Mounting: Single-hole with side valve
• Supply: Dual Supply for Hot and Cold Water Service
• Finish: Chrome Plate Finish
• Package Quantity: 1
• Product Type: Single Hole Bathroom Sink Faucet
• Manufacturer: Chicago
• Model #: 3512-E2805AB
• ADA Compliant: Yes
• ANSI: ANSI 372, ANSI 61 Section 9, ANSI A117.1
• ASME: ASME A112.18.1
• Application: Commercial, Residential
• Bathroom Faucet Type: Monoblock
• CEC Compliant: For Sale in CA
• CSA Certified: CSA B125.1
• Cartridge Type: Ceramic Disc
• Collection: 3512 Series
• Color Finish Category: Chromes
• Color Finish Name: Polished Chrome
• Faucet Center Size: 4 in
• Faucet Material: Brass
• Faucet Mount: Deck Mount
• Flow Rate: 0.5 gpm
• Handle Included: Yes
• Lead Law Compliance Level: Lead Free and Lead Leaching Compliant
• Lead Law Compliant: Yes
• NSF: NSF 372, NSF 61 Section 9
• NSF Certified: Yes
• Number of Handles: Single Handle
• Number of Holes: 1 Hole
• Proposition 65: WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• UPC: 611943553913
• Spout Type: 4" Center to Center Integral Cast Brass Spout
