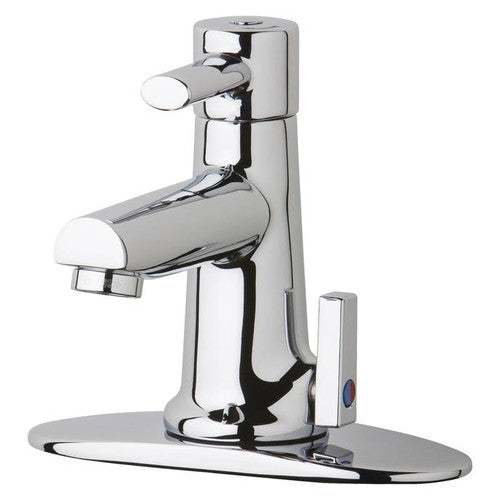

Chicago Faucets 3512-4E2805AB Series Deck-mounted Manual Faucet 4 inches Centers

Product Description

The CHICAGO FAUCETS 3512-4E2805AB is a deck-mounted manual faucet with 4" centers. It features a user-adjustable temperature control mixer with a hot water adjustment limit stop, and a pressure-compensating Econo-Flo non-aerating laminar spray. Designed for hot and cold water mixing, it ensures durability and consistent performance.

• Features 4" fixed centers.
• Includes a 4" cover plate kit.
• Equipped with ceramic 1/4-turn operating cartridge.

Product Highlights

This faucet offers precise temperature control and reliable operation for commercial and residential applications.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 3512-4E2805AB

Technical Specifications

• Part Number: 3512-4E2805AB
• Pressure compensating Econo-Flo non-aerating laminar spray: 0.5 GPM (E2805JKABCP)
• Centers: 4" fixed centers
• Includes: 4" cover plate kit
• Supply: Dual supply for hot and cold water service
• Finish: Polished chrome
• Package Quantity: 1
• Spout: 4" Center to Center Integral Cast Brass Spout
• Spray: E2805AB - 0.5 GPM (1.9 L/min) Vandal Proof Pressure Compensating Econo-Flo Non-Aerating Spray
• Cartridge: 377-XKAB - Ceramic 1/4-Turn Operating Cartridge
• Hoses: Stainless Steel Hoses Included
• Temperature Control: User Adjustable Temperature Control Mixer with Hot Water Adjustment Limit Stop (up to 85% / 95% of Available Hot Water)
• Cover Plate: Includes 4" Cover Plate Kit
• Lead Content: ECAST construction with equal to or less than 0.25% lead content by weighted average
• Manufacturer: Chicago
• Model #: 3512-4E2805AB
• Hose: Stainless Steel Hose Included
• Mixer: User Adjustable Temperature Control Mixer with Hot Water Adjustment Limit Stop (up to 85% / 95% of Available Hot Water)
