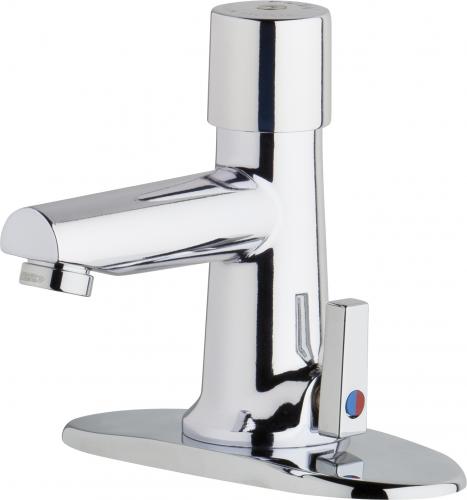

Chicago Faucets 3502-4E39VPABCP Deck-mounted Metering Faucet with 4 inches Centers

Product Description

The CHICAGO FAUCETS 3502-4E39VPABCP is a deck-mounted metering faucet with 4" centers. It features a pressure compensating Econo-Flo non-aerating outlet and a user adjustable temperature control mixer with hot water adjustment limit stop. This faucet is easy to install and operate, reducing water use compared to conventional faucets.

• 4" Fixed Centers
• 4" Center to Center Integral Cast Brass Spout
• 0.35 GPM Vandal Proof Pressure Compensating Econo-Flo Non-Aerating Outlet

Product Highlights

This metering faucet is designed for durability and water conservation, suitable for commercial and public restrooms.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 3502-4E39VPABCP

Technical Specifications

• Pressure compensating Econo-Flo non-aerating outlet: 0.35 GPM (E39VPJKABCP)
• 1-5/8" MVP metering push handle: (3500-004KJKCP)
• Actuator assembly: (3300-103KJKABNF)
• User adjustable temperature control mixer with hot water adjustment limit stop: (up to 85% / 95% of available hot water)
• Centers: 4" fixed centers
• Supply: Dual supply for hot and cold water service, flexible supply hoses included
• Finish: Polished chrome
• Package Quantity: 1
• Spout: 4" Center to Center Integral Cast Brass Spout
• Outlet: 0.35 GPM (1.3 L/min) Vandal Proof Pressure Compensating Econo-Flo Non-Aerating Outlet
• Cartridge: MVP Metering Cartridge, Adjustable Cycle Time Closure
• Hose: Stainless Steel Hose Included
• Mixer: User Adjustable Temperature Control Mixer with Hot Water Adjustment Limit Stop (up to 85% / 95% of Available Hot Water)
• Center Distance: 4 in
• Connection Size: 3/8 in
• Connection Type: Compression Thread
• Dimensions: 6-1/2 in W x 6 in H
• Flow Rate: 0.35 gpm
• Maximum Deck Thickness: 1-1/4 in
• Mounting Type: Deck
• Series: 3500
• Spout Height: 2-3/4 in
• Spout Reach: 4 in
• Spout Type: Integral
• Spray Pattern: Vandal-Resistant Non-Aerated
• Type: Manual
• Valve/Cartridge Type: Auto Timed Metering
• Service: Dual Supply for Hot and Cold Water
• Hoses: Stainless Steel Included
• Construction: ECAST construction with equal to or less than 0.25% lead content by weighted average
• Brand Name: Chicago Faucets
• MPN: 3502-4E39VPABCP
• UPC: 611943127619
