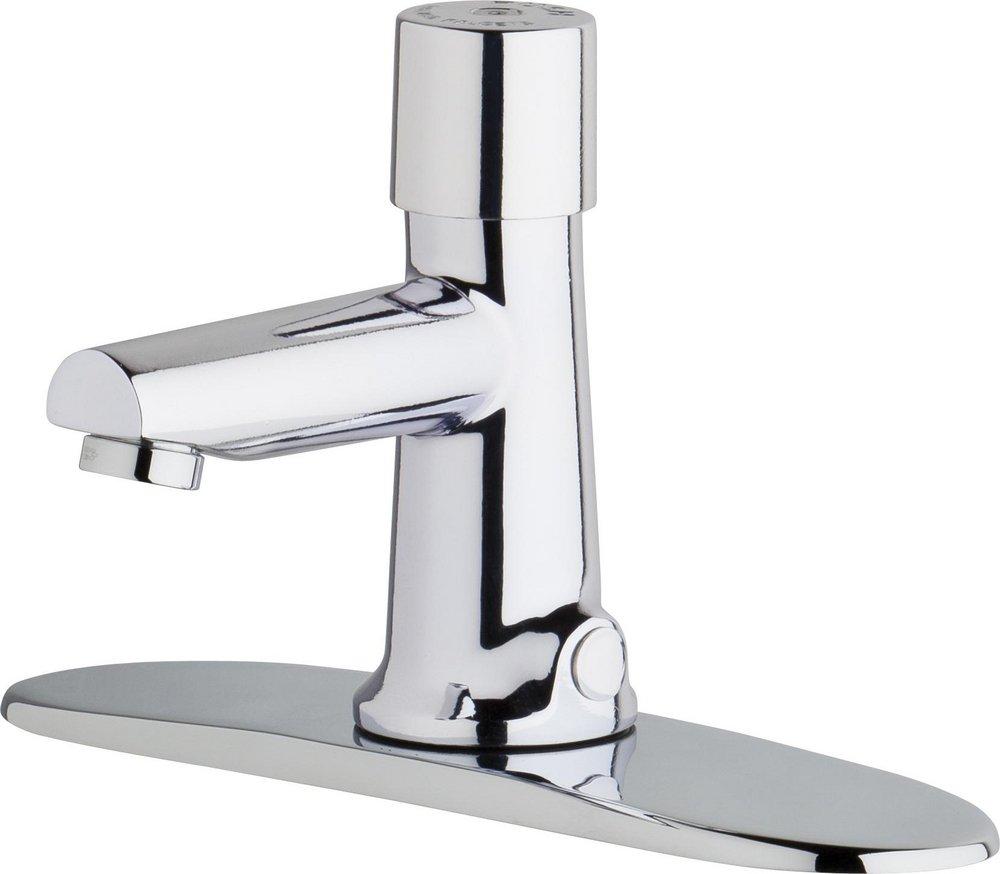

Chicago Faucets 3501-8E39VPABCP Lav Faucet, Manual Metering

Product Description

The CHICAGO FAUCETS 3501-8E39VPABCP is a hot and cold water metering mixing sink faucet with manual metering. It features an adjustable cycle time closure and is constructed with ECAST with equal to or less than 0.25% lead content by weighted average. Stainless steel hoses are included. It features a concealed internal temperature control mixer with hot water adjustment limit stop.

• Hot and Cold Water Metering Mixing Sink Faucet
• Manual Metering
• Adjustable Cycle Time Closure

Product Highlights

This lavatory faucet features 8" fixed centers and a 4" center to center integral cast brass spout. The outlet is a 0.35 GPM vandal proof pressure compensating Econo-Flo non-aerating outlet.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 3501-8E39VPABCP

Technical Specifications

• Fixed Centers: 8"
• Spout: 4" Center to Center Integral Cast Brass
• Outlet: E39VPAB - 0.35 GPM (1.3 L/min) Vandal Proof Pressure Compensating Econo-Flo Non-Aerating
• Cartridge: MVPAB - MVP Metering Cartridge, Adjustable Cycle Time Closure
• Water Service: Dual Supply for Hot and Cold Water Service
• Hoses: Stainless Steel Included
• Temperature Control: Concealed Internal Temperature Control Mixer with Hot Water Adjustment Limit Stop
• Finish: Chrome Plate
• Construction: ECAST® construction with equal to or less than 0.25% lead content by weighted average
• Brand: Chicago Faucets
• MPN: 3501-8E39VPABCP
• ADA Compliant: Yes
• ANSI: ANSI 61-9, ANSI 372, ANSI A117.1
• ASME: ASME A112.18.1
• Built-in Stops: No
• CEC Compliant: For Sale in CA
• CSA Certified: CSA B125.1
• Cartridge Type: Metering, Single Push Button
• Color Finish Category: Chromes
• Color Finish Name: Polished Chrome
• Deck Plate Included: Yes
• Faucet Connection Size: 3/8 in
• Faucet Height: 6 in
• Faucet Material: Brass
• Faucet Mount: Deck Mount
• Flow Rate: 0.35 gpm
• GSA Approved: No
• IAPMO Listed: No
• Institutional Faucet Type: Service
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• NSF: NSF 61-9, NSF 372
• NSF Certified: Yes
• Number of Holes: 1 Hole
• Scald Guard: No
• Spout Height: 2-3/4 in
• Spout Reach: 4 in
• UL Listed: No
• Vacuum Breaker: No
• Vandal Resistant: Yes
• WaterSense Labeled: No
