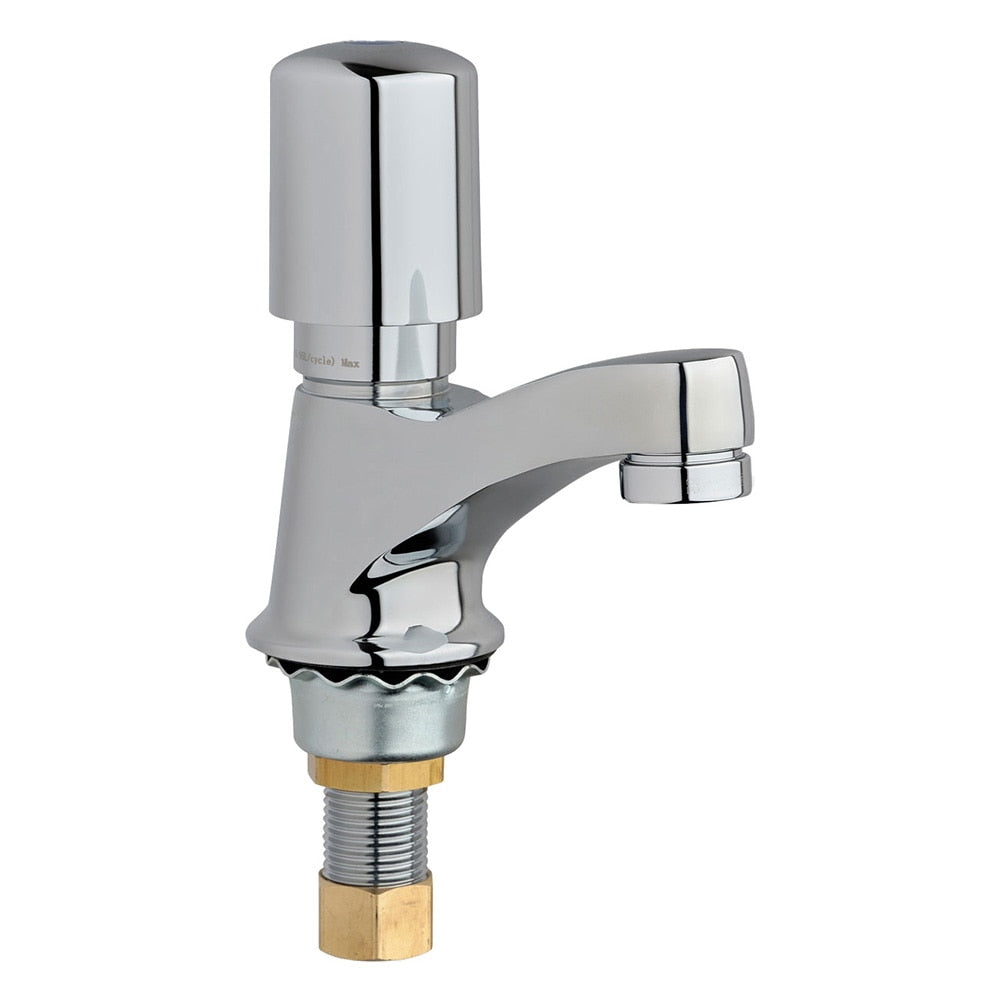

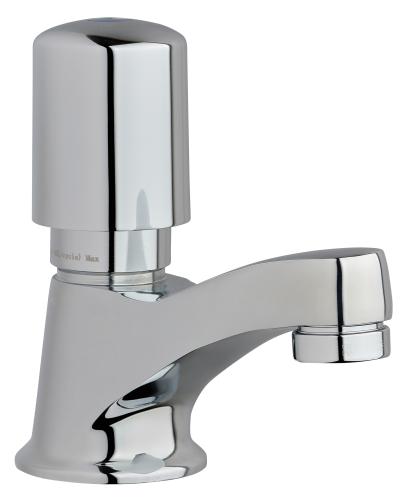

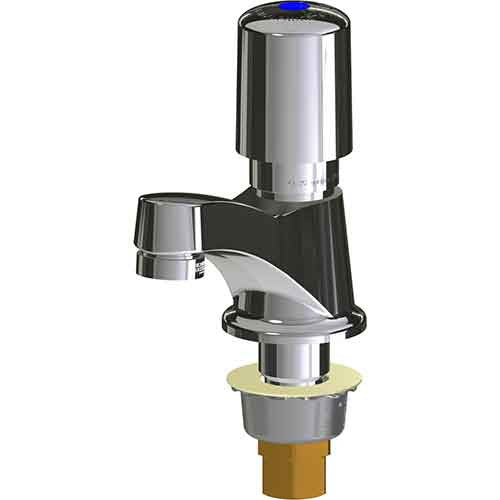

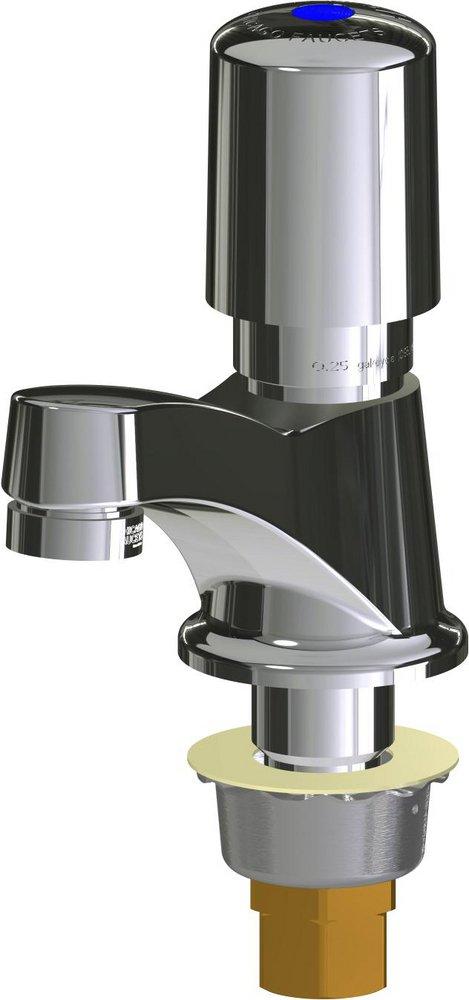

Chicago Faucets 333-E2805-765PSHAB Metering Faucet 0.5 GPM

Product Description

The CHICAGO FAUCETS 333-E2805-765PSHAB is a deck-mounted metering faucet designed for single-hole, single-supply installations. It features a vandal-proof design and a pressure-compensating Econo-Flo laminar spray that delivers consistent water flow at 0.5 GPM. Its MVP metering cartridge ensures water conservation with an adjustable run time from 2 to 25 seconds.

• Single-hole, deck-mounted configuration
• ECAST construction with ≤0.25% lead content
• 0.5 GPM Econo-Flo non-aerating laminar spray (E2805JKABCP)

Product Highlights

Ideal for commercial restrooms and public facilities. Complies with ADA, CALGreen, and NSF standards for safety and sustainability.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 333-E2805-765PSHAB
• Country of Origin: Domestic

Technical Specifications

• Pressure Compensating: Econo-Flo non-aerating laminar spray, 0.5 GPM (E2805JKABCP)
• Cycle: 0.25 gal/cycle (0.95 L/cycle) max.
• Handle: 2" MVP metering push handle (765-PSHJKCP)
• Cartridge: MVP metering cartridge and actuator (667-780KJKABNF)
• Mounting: Single-hole
• Inlet: 1/2" NPSM supply inlet with coupling nut for 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Weight: 1.75 lb
• Package Dimensions: 11.88 × 6.56 × 4.12 in
• Package Quantity: 1
• Availability: CF Now
• Manufacturer (Brand): Chicago Faucets
• Manufacturer Item Number: 333-E2805-765PSHAB
• UPC: 611943188917
• UOM: Eaches
• Mounting Style: Deck Mount
• Feature: Genuine OEM
• Model Number: 333 Series
• Operating Temperature: 40 to 140° F
• Pressure: 20 psi to 125 psi
• ADA Compliant: Yes
• ASME: ASME A112.18.1
• Application: Commercial
• BAA Compliant: Yes
• Bathroom Faucet Type: Metering
• CSA Certified: CSA B125.1
• Cartridge Type: Self Closing
• Collection: Commercial
• Color Finish Category: Chromes
• Color Finish Name: Polished Chrome
• Deck Plate Included: No
• Faucet Connection Size: 1/2 in
• Faucet Height: 4-5/8
• Faucet Material: Brass
• Faucet Mount: Deck Mount
• Flow Rate: 0.5 gpm
• Handle Included: Yes
• Handle Length (in): 1-5/8
• Handle Material: Metal
• Handle Type: Metering
• IAPMO Listed: No
• ISO: No
• Lead Law Compliance Level: Lead Free and Lead Leaching Compliant
• Lead Law Compliant: Yes
• Maximum Deck Thickness: 3/4
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Number of Handles: Single Handle
• Number of Holes: 1 Hole
• Origin: Domestic
• Proposition 65: !WARNING This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Spout Reach: 3-1/2
• Spout Swivel: 0°
• Spout Type: Fixed
• Stream Type: Non-aerated
• Supply Lines Included: No
• Type: C333E2805765PSHAB
• Spray Type: Pressure compensating Econo-Flo non-aerating laminar spray, 0.5 GPM
