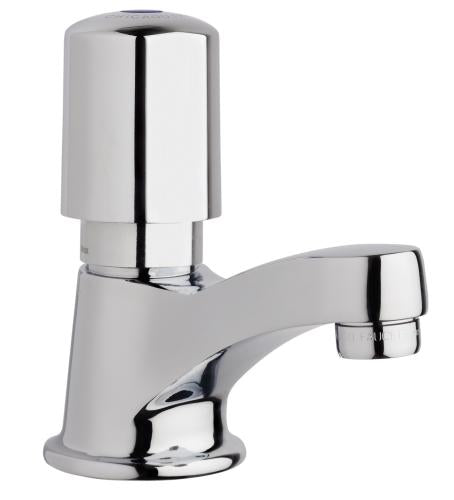

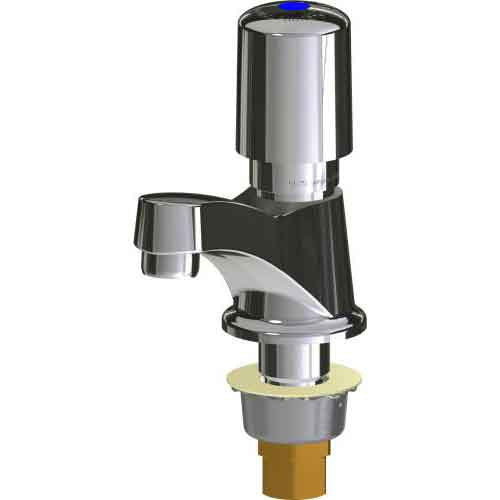

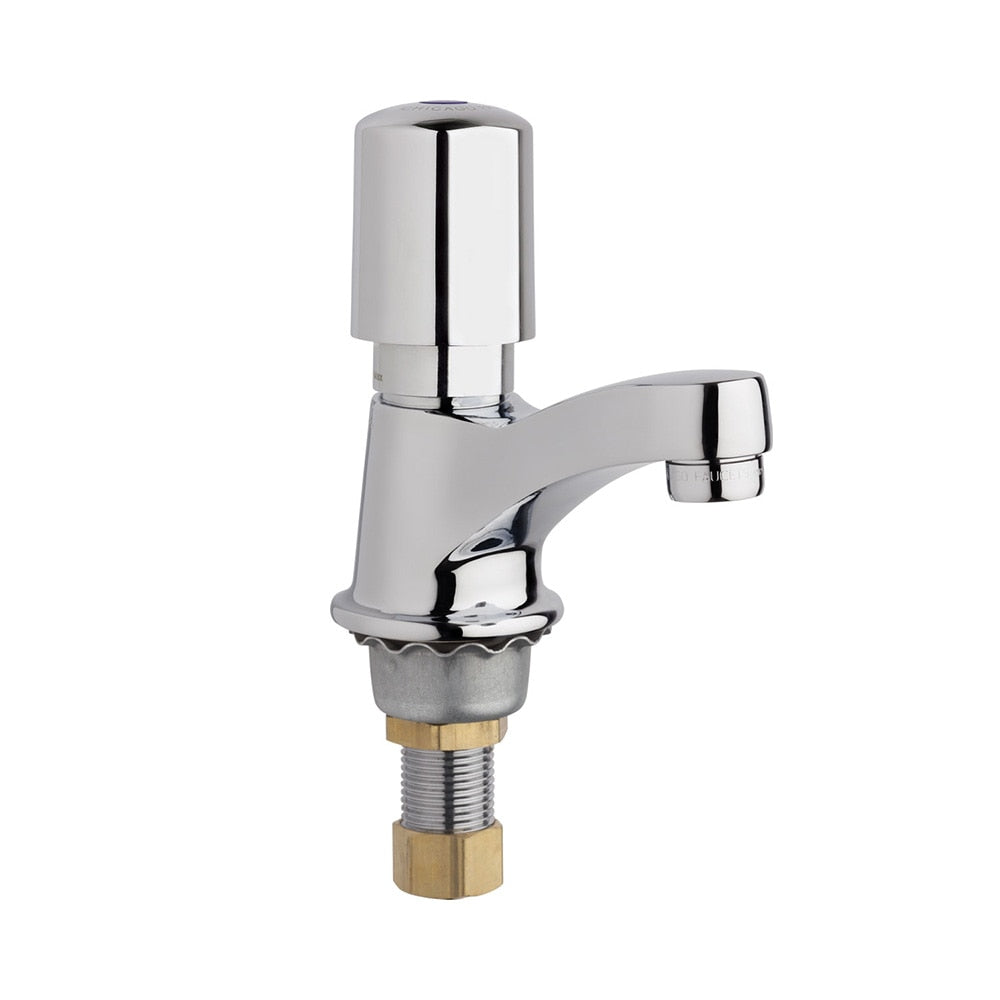

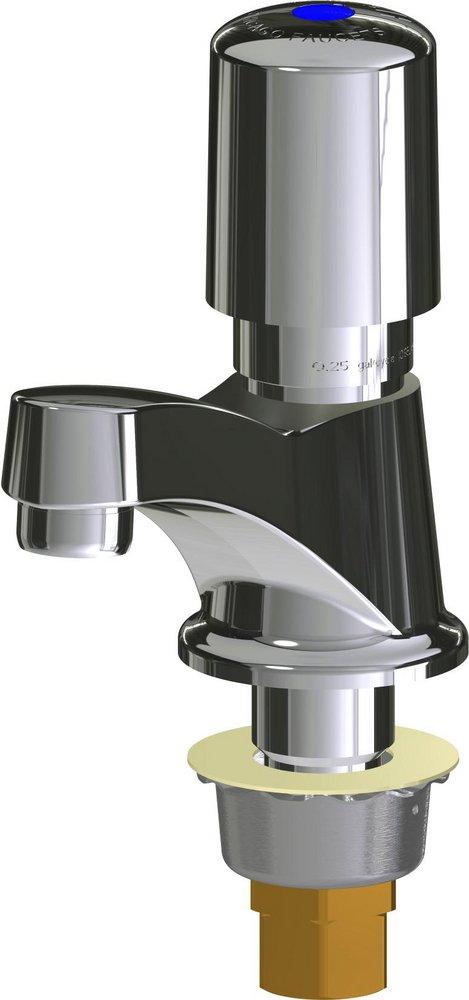

Chicago Faucets 333-765E39PSHABCP Series Deck-mounted Metering Faucet 0.35 GPM

Product Description

The CHICAGO FAUCETS 333-765E39PSHABCP is a deck-mounted metering faucet designed for single-hole, single-supply installations. It features a pressure compensating Econo-Flo non-aerating outlet that delivers a consistent flow rate of 0.35 gallons per minute. The MVP metering cartridge ensures timed water delivery, reducing waste and enhancing hygiene.

• Pressure compensating Econo-Flo non-aerating outlet, 0.35 GPM (E39JKABCP)
• 0.25 gal/cycle (0.95 L/cycle) max.
• 2" MVP metering push handle (765-PSHJKCP)

Product Highlights

Ideal for commercial and institutional settings, this faucet combines durability with water-saving technology.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 333-765E39PSHABCP

Technical Specifications

• Pressure compensating Econo-Flo non-aerating outlet: 0.35 GPM (E39JKABCP)
• Cycle: 0.25 gal/cycle (0.95 L/cycle) max.
• Handle: 2" MVP metering push handle (765-PSHJKCP)
• Cartridge: MVP metering cartridge and actuator (667-780KJKABNF)
• Mounting: Single-hole
• Inlet: Single-hole 1/2" NPSM supply inlet with coupling nut for 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Package Quantity: 1
• Manufacturer (Brand): Chicago Faucets
• Manufacturer Item Number: 333-765E39PSHABCP
• UPC: 611943188856
• Flow Rate: 0.35 GPM
• Mounting Style: Deck Mount, Single Hole
• Feature: Genuine OEM
• Valve Size: 1/2 Inch
• ADA Compliant: Yes
• ASME: ASME A112.18.1
• Application: Commercial
• BAA Compliant: Yes
• Bathroom Faucet Type: Metering
• CSA Certified: CSA B125.1
• Cartridge Type: Self Closing
• Collection: Commercial
• Color Finish Category: Chromes
• Color Finish Name: Polished Chrome
• Deck Plate Included: No
• Faucet Connection Size: 1/2 in
• Faucet Height: 4-5/8
• Faucet Material: Brass
• Faucet Mount: Deck Mount
• Handle Length (in): 1-5/8
• Handle Material: Metal
• Handle Type: Metering
• IAPMO Listed: No
• ISO: No
• Lead Law Compliance Level: Lead Free and Lead Leaching Compliant
• Lead Law Compliant: Yes
• Maximum Deck Thickness: 3/4
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Number of Handles: Single Handle
• Number of Holes: 1 Hole
• Origin: Domestic
• Spout Reach: 3-1/2
• Spout Swivel: 360
• Spout Type: Swivel
• Stream Type: Non-aerated
• Supply Lines Included: No
• Type: C333765E39PSHABCP
