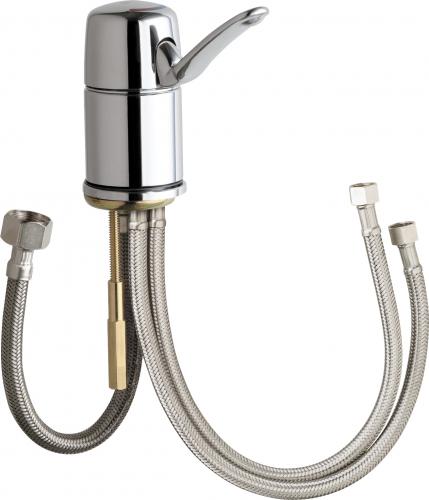

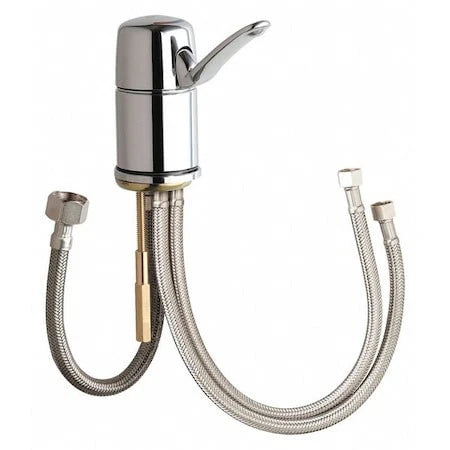

CHICAGO FAUCETS 2303-ABCP Single Lever Lavatory Faucet

Product Description

The Chicago Faucets 2303-ABCP is a single-lever lavatory faucet designed for deck mounting. This faucet features solid brass construction and a polished chrome finish.

• Metal lever handle with hot and cold indicators.
• Ceramic operating cartridge for volume control.
• Integral inlet shanks with 3/8 inch O.D. copper supply tube inlets.

Product Highlights

This faucet is compliant with ADA ANSI/ICC A117.1 requirements and meets industry standards.

Product Information

Standard Information

• Brand: CHICAGO FAUCET
• MPN: 2303-ABCP

Technical Specifications

• Product Type: Deck Mounted Single Lever Hot and Cold Water Mixing Sink Faucet
• Handle: 4 5/8 inch Lever
• Cartridge: Ceramic Operating
• Inlets: 3/8 inch O.D. Copper Supply Tube Inlets
• Operating Pressure: 20-125 PSI
• Operating Temperature: 40-140 degrees Fahrenheit
• Overall Height: 5 3/8 inches
• Required Installation Holes: 2
• Maximum Deck Thickness: 2 3/8 inches
• Connection: 1/2 inch
