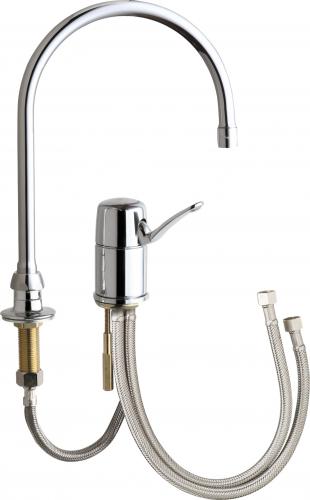

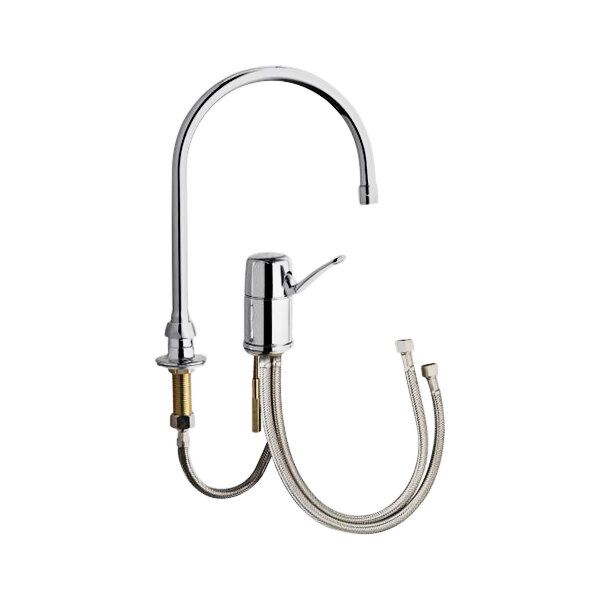

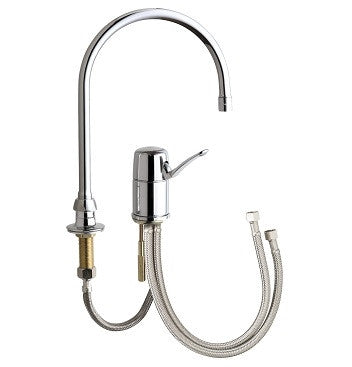

Chicago Faucets 2302-GN8AE73ABCP Deck-mounted Manual Faucet Two-hole Mounting 1.0 GPM 8 Inch Gooseneck Spout

Product Description

The CHICAGO FAUCETS 2302-GN8AE73ABCP is a deck-mounted manual faucet designed for two-hole installations. It features an 8-inch rigid/swing gooseneck spout with a 1.0 GPM pressure compensating non-aerating laminar outlet, ensuring efficient water flow. This faucet includes a 2-3/4 inch lever handle and a ceramic operating cartridge with volume control and a hot water limit stop for user safety and convenience. It is supplied with 3/8 inch compression flexible supply hoses.

• WaterSense certified for water efficiency
• ADA ANSI/ICC A117.1 compliant for accessibility
• ASME A112.18.1/CSA B125.1 compliant for plumbing standards

Product Highlights

Features a 1.0 GPM laminar outlet, ceramic cartridge, and is WaterSense and ADA compliant.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 2302-GN8AE73ABCP
• Country of Origin: USA

Technical Specifications

• Spout Type: 8" Rigid/Swing Gooseneck
• Outlet Type: E73AB - 1.0 GPM (3.8 L/min) Pressure Compensating Non-Aerating Laminar
• Flow Rate: 1.0 GPM (3.8 L/min)
• Handle Type: Lever
• Handle Length: 2-3/4"
• Cartridge Type: Ceramic Operating with Volume Control and Hot Water Limit Stop
• Supply Hoses: 3/8" Compression Flexible Stainless Steel
• Finish: Polished Chrome
• Spout Length: 8 Inches
• Faucet Width: 2 1/8 Inches
• Faucet Height: 12 1/8 Inches
• Faucet Centers: 6 Inches
• Material: ECAST® Cast Brass
• Operating Pressure: 20 - 125 PSI
• Spout Clearance: 6 5/8 Inches
• Operating Temperature: 40 - 140 Degrees F
• Water Inlet Size: 3/8 Inches
• Lead Content: <= 0.25% (by weighted average)
• Water Type: Hot and Cold
