Chicago Faucets 201-G8AE35-317XKAB Kit Fct

Product Description

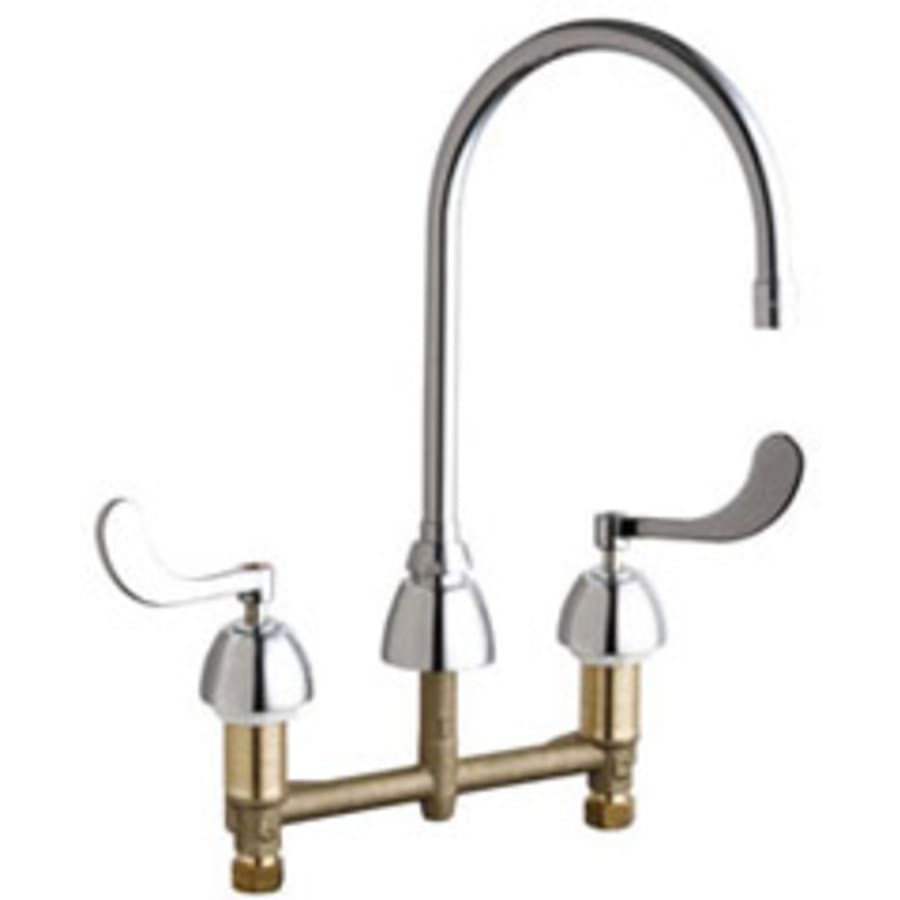

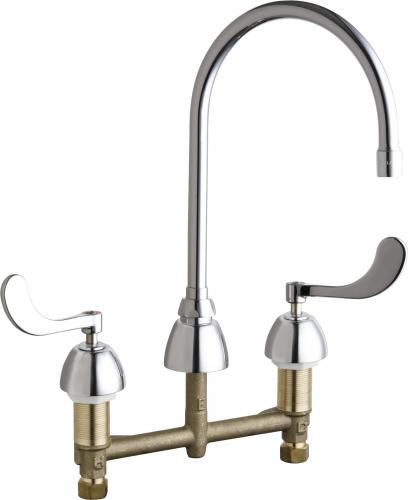

The CHICAGO FAUCETS 201-G8AE35-317XKAB Kit Fct is a deck-mounted manual sink faucet with 8 inch centers. It features a Quaturn cartridge for easy quarter-turn operation and ECAST construction for low lead content. Suitable for commercial settings but also for home use.

• 8 inch fixed centers
• 1.5 GPM (5.7 L/min) pressure compensating Softflo aerator
• 4 inch wrist blade handle

Product Highlights

This commercial grade high arch kitchen faucet is designed for durability and continuous use.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 201-G8AE35-317XKAB
• Country of Origin: USA

Technical Specifications

• MPN: 201-G8AE35-317XKAB
• Brand: CHICAGO FAUCETS
• 8" Rigid/swing gooseneck spout: GN8AJKABCP
• Pressure compensating Softflo aerator, 1.5 GPM: E35JKABCP
• 4" Wristblade handle (pair): 317-PRJKCP
• Ceramic 1/4-turn operating cartridge, left-hand: 377-XKLHJKABNF
• Ceramic 1/4-turn operating cartridge, right-hand: 377-XKRHJKABNF
• Application: Kitchen
• Style: Wristblade Handle
• Finish: Polished Chrome
• Flow Rate: 1.5 gpm
• Manufacturer: Chicago
• Model #: 201-G8AE35-317XKAB
• Faucet Handle Style: 4" Wristblade
• Overall Height: 13 1/8" (measured from mounting surface to highest point on faucet)
• Spout Height: 7 1/2" (measured from mounting surface to spout outlet)
• Spout Reach: 8" (measured from center of faucet body to center of spout outlet)
• Required Installation Holes: 3
• Maximum Deck Thickness: 1 3/8"
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Connection: 1/2"
• Faucet Centers: 8 in.
• Water Connection: 1/2"
• Faucet Type: Kitchen Faucet
• Handle Material: Metal
• Installation Type: Deck Mounted
• Material: Brass
• Number Of Handles: 2
• Valve Type: Ceramic Disc
• ADA: Yes
• Approved for Commercial Use: Yes
• ASME Code: A112.18.1
• CA Drought Compliant: Yes
• Certifications: ANSI, ASME, NSF, CSA
• CSA Code: B125.1
• Eco Friendly: Yes
• Lead Leaching Certified NSF/ANSI 61: Yes
• Low Lead Compliant: Yes
• Made in America: Yes
• Center Distance: 8 in
• Commercial / Residential: Commercial
• Handle Style: Lever
• Type: Concealed
• Connection Size: 1/2 in
• Connection Type: NPSM
• Dimensions: 13-1/8 in H
• Faucet Hole Size: 1-1/4
• Manufacturer #: 201-G8AE35-317XKAB
• Number of Faucet Holes: 3
• Series: 201
• Side Spray(Y / N): No
• Spout Type: Gooseneck
• Valve / Cartridge Type: Ceramic
