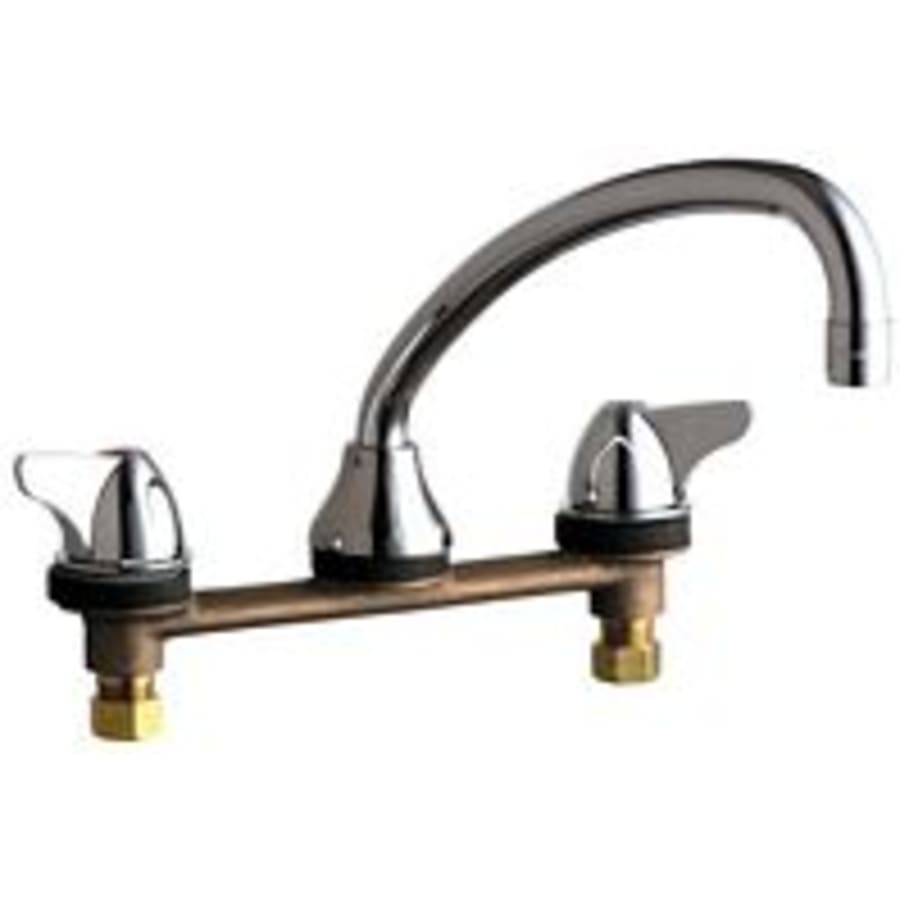

Chicago Faucets 1888-XKABCP Deck-mounted Manual Faucet 2.2 GPM 8 inches Centers

Product Description

The CHICAGO FAUCETS 1888-XKABCP is a deck-mounted manual faucet designed for reliable operation in commercial or kitchen settings. It features 8-inch fixed centers and a 9-1/2 inch swing tube spout with an integral flange. A pressure compensating Softflo� aerator delivers a 2.2 GPM (8.3 L/min) flow rate. Operation is managed by 2-inch canopy single-wing handles, controlling durable ceramic 1/4-turn operating cartridges. It includes 1/2 inch NPSM supply inlets for flexible risers.

• Deck-mounted installation with 8-inch fixed centers.
• Features a 9-1/2 inch swing tube spout and 2.2 GPM Softflo� aerator.
• Equipped with ceramic 1/4-turn operating cartridges for durability.

Product Highlights

ADA compliant, NSF/ANSI 61 Section 9 certified, and features ECAST construction for low lead content.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 1888-XKABCP
• Country of Origin: USA

Technical Specifications

• Spout Type: 9-1/2" Swing Tube with Integral Flange
• Flow Rate: 2.2 GPM (8.3 L/min)
• Handle Type: 2" Canopy Single-Wing (Pair)
• Cartridge Type: Ceramic 1/4-Turn Operating
• Faucet Centers: 8"
• Supply Inlets: 1/2" NPSM with Coupling Nut for 3/8" or 1/2" Flexible Riser
• Finish: Polished Chrome
• Application: Commercial
• Handle Style: 1-Wing Canopy
• Connection Size: 1/2"
• Connection Type: NPSM
• Overall Height: 6-3/8"
• Faucet Hole Size: 1-1/8"
• Material: Brass
• Maximum Deck Thickness: 3/8"
• Mounting Type: Deck
• Number of Faucet Holes: 3
• Number of Handles: 2
• Series: 1888
• Spout Height: 3-7/8"
• Spout Reach: 9-1/2"
• Operating Pressure: 20 to 125 PSI
• Operating Temperature: 40 to 140 �F
• Lead Content: � 0.25%
• ADA Compliant: Yes
• Certifications: ASME A112.18.1/CSA B125.1, NSF/ANSI 61 Section 9, ADA ANSI/ICC A117.1
• Drain Assembly Included: No
• Escutcheon Included: No
• Filtering: No
• Sidespray: No
• Soap Dispenser Included: No
• Valve Included: Yes
• Handle Material: Metal
• Pre Rinse: No
• Pullout Spray: No
• Approved for Commercial Use: Yes
• CA Drought Compliant: No
• Low Lead Compliant: Yes
