Chicago Faucets 116.592.AB.1T HyTronic for Patient Care Touch-Free Programmable Faucet 6V battery (Replaces 116.592.AB.1)

Product Description

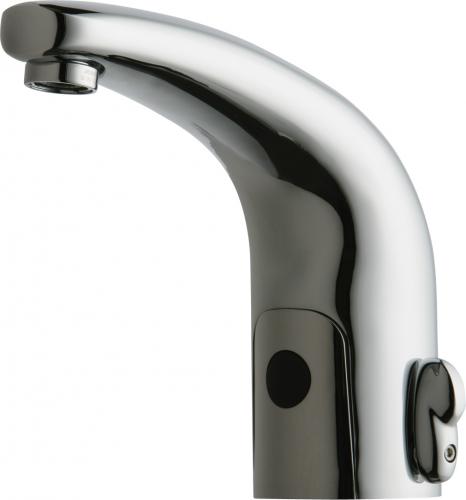

Chicago Faucets 116.592.AB.1T is a HyTronic touch-free programmable faucet for patient care applications with above-deck electronics. It includes a HyTronic traditional spout with user-adjustable temperature control, a vandal-resistant antimicrobial pressure-compensating laminar non-aerating outlet rated 1.5 GPM, built-in Bluetooth for CF Connect app configuration, and battery operation via the included 6 volt CR-P2 lithium cell. Dual hot/cold supply with 3/8" O.D. copper tubes; single-hole installation.

• Antimicrobial pressure-compensating laminar non-aerating outlet, 1.5 GPM (5.7 L/min); vandal-resistant silver ion outlet
• Built-in Bluetooth communication (CF Connect App) and HyTronic module; internal antenna (2400-2500 MHz, FCC ID 2APTX-CFC01)
• Battery powered (6 volt CR-P2 lithium included), dual hot/cold supply with 3/8" O.D. copper tubes, single-hole mount (4" and 8" deck plates available)

Product Highlights

Touch-free HyTronic faucet for patient care with 1.5 GPM antimicrobial laminar outlet, 6V battery operation, Bluetooth configurability, 40-second safety auto-timeout, and dual hot/cold supply.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 116.592.AB.1T

Technical Specifications

• Brand: Chicago Faucets
• Model / MPN: 116.592.AB.1T
• Series: HyTronic for Patient Care
• Product Name: HyTronic touch-free programmable faucet
• Spout: HyTronic Traditional spout with user temperature control (240.723.AB.1)
• Outlet Type: Antimicrobial pressure-compensating laminar flow non-aerating outlet; vandal-resistant silver ion laminar outlet (E62VPJKABCP)
• Flow Rate: 1.5 GPM (5.7 L/min)
• Handle: User temperature control handle kit, rounded (240.746.AB.1)
• Module: HyTronic module kit with Bluetooth communication (242.433.00.1T)
• Connectivity: Built-in Bluetooth; CF Connect App compatible
• Power: Battery operated
• Battery Type: 6 volt CR-P2 lithium battery included
• Run Time / Safety Timeout: 40 second run time with hand presence; safety auto-timeout shuts water off after 40 seconds
• Supply: Dual hot and cold supply; 3/8" O.D. copper supply tubes included
• Mounting Type: Single-hole installation (4" and 8" deck plates available)
• Finish: Polished chrome
• Weight: 5.15 lb
• Antenna Specs: Internal antenna peak gain -5.47 dBi; Frequency range 2400-2500 MHz; FCC ID 2APTX-CFC01
• Certifications / Standards: ASME A112.18.1/CSA B125.1; ADA ANSI/ICC A117.1; NSF/ANSI/CAN 61; NSF/ANSI/CAN 372 Low Lead Content; WaterSense certified
