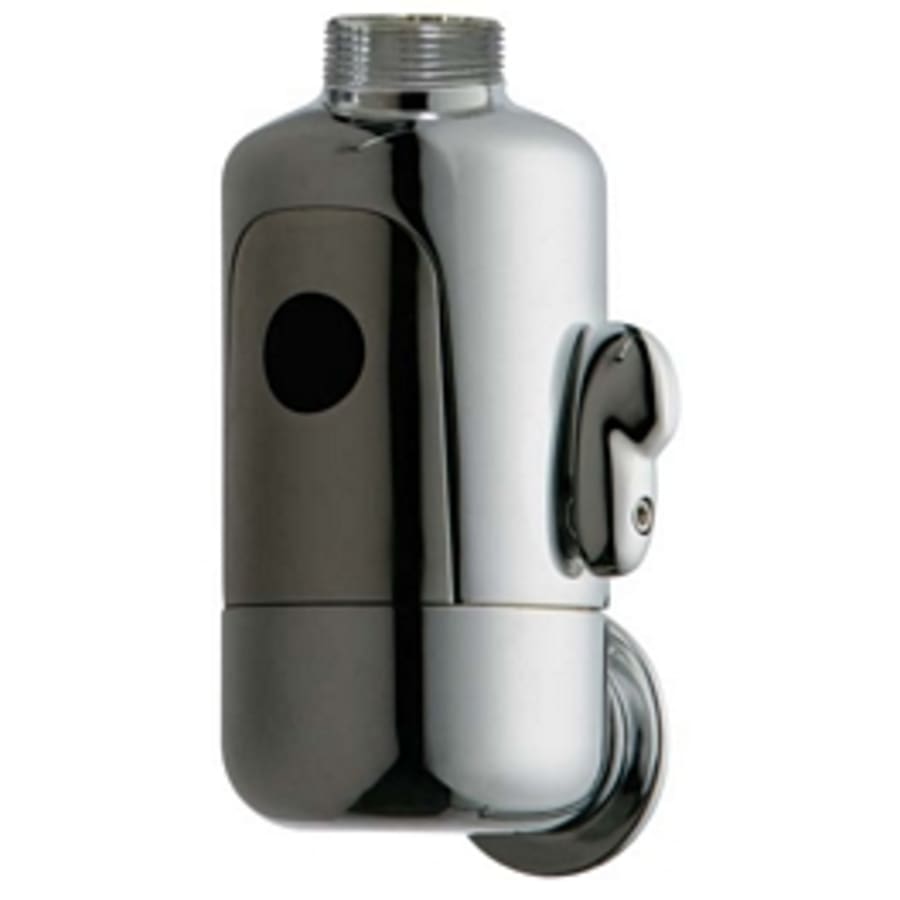

Chicago Faucets 116.424.AB.1 HyTronic Less Spout Sink Faucet

Product Description

The CHICAGO FAUCETS 116.424.AB.1 HyTronic® Series is a touch-free, programmable faucet with above-deck electronics. It features a user-adjustable temperature control mixer and includes a 6-volt lithium CRP2 battery. The faucet has dual supply for hot and cold water with flexible supply hoses included. Safety auto-timeout feature will shut the water off after 40 seconds.

• Touch-free, programmable faucet with above-deck electronics
• User adjustable temperature control mixer included
• Dual supply for hot and cold water; flexible supply hoses included

Product Highlights

Touch-free, programmable faucet with adjustable temperature control and safety auto-timeout feature.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 116.424.AB.1
• Country of Origin: USA

Technical Specifications

• Less Spout: S0
• User temperature control handle kit: rounded (240.746.AB.1)
• User adjustable temperature control mixer: included
• Single-hole: None
• Run time: 40 second run time with hand presence
• Battery: 6 volt lithium CRP2 battery included
• Supply: Dual supply for hot and cold water
• Finish: Polished chrome
• Package Quantity: 1
• Manufacturer: Chicago
• Model #: 116.424.AB.1
• User temperature control handle kit, rounded: 240.746.AB.1
• HyTronic module kit with Bluetooth communication: 242.433.00.1T
• Overall Height: 5 1/8" (measured from mounting surface to highest point on faucet)
• Required Installation Holes: 1
• Maximum Deck Thickness: 5/8"
• Mounting Configuration: Wall Mounted
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Integrated electronic sensor included: Yes
• Water Connection: 1/2"
• Faucet Holes: 1
• Installation Type: Wall Mounted
• Material: Brass
• Number Of Handles: 0
• Valve Type: Solenoid, Metering
• ADA: Yes
• Approved for Commercial Use: Yes
• ASME Code: A112.18.1
• CA Drought Compliant: Yes
• Certifications: ANSI, ASME, CSA, NSF
• CSA Code: B125.1
• Lead Leaching Certified NSF/ANSI 61: Yes
• Low Lead Compliant: Yes
• Made in America: Yes
• Type: Sensor
