Chicago Faucets 116.221.AB.1T Ccy Lfa 0.5 Elec Lav Fct Batry

Product Description

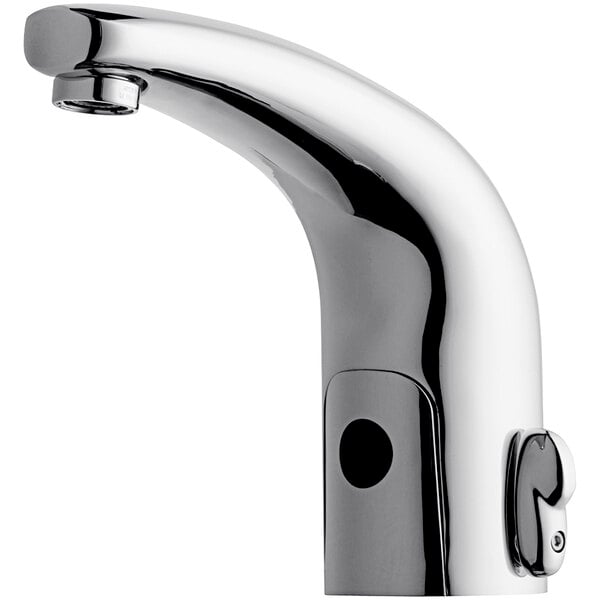

The CHICAGO FAUCETS 116.221.AB.1T is a touch-free, programmable faucet with above-deck electronics. It features a HyTronic traditional spout with user temperature control and a pressure compensating Econo-Flo non-aerating laminar spray with a 0.5 GPM flow rate. Built-in Bluetooth technology allows for adjustments and mode changes via the Chicago Faucets CF Connect App.

• Touch-free, programmable faucet
• Above-deck electronics
• User temperature control
• Built-in Bluetooth communication

Product Highlights

This touch-free faucet offers programmable features, user temperature control, and Bluetooth connectivity for easy adjustments.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 116.221.AB.1T
• Country of Origin: USA

Technical Specifications

• Spout: HyTronic Traditional spout with user temp control (240.723.AB.1)
• Spray: Pressure compensating Econo-Flo non-aerating laminar spray, 0.5 GPM (E2805JKABCP)
• Temperature Control: User temperature control handle kit, rounded (240.746.AB.1)
• Module Kit: HyTronic module kit with Bluetooth communication (242.433.00.1T)
• Mixer: User adjustable temperature control mixer included
• Flow Insert: Includes optional 1.5 GPM (5.7 L/min) laminar flow insert
• Mounting: Single-hole (4" and 8" deck plates available, see Accessories)
• Run Time: 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
• Battery: 6 volt lithium CRP2 battery included
• Bluetooth: Built-in Bluetooth technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
• Supply: Dual supply for hot and cold water; flexible supply hoses included
• Finish: Polished chrome
• Commercial/Residential: Commercial
• Connection Size: 3/8 in.
• Deckplate Included: Deckplate Not Included
• Faucet Finish: Polished Chrome
• Faucet Flow Rate: 0.5 GPM
• Faucet Handle Type: Touchless
• Faucet Material: Brass
• Faucet Spout Height: 5-5/8 in.
• Faucet Spout Reach: 5-1/2 in.
• Faucet Spout Type: High-Arc
• Handle Material: Brass
• Installation Type: Quick Install
• Maximum Deck Thickness: 1-1/2 in.
• Mounting Location: Deck
• Number of Faucet Holes: 1
• Number of Handles: 0
• Package Quantity: 1
• Supply Inlet Type: Braided Flexible
• Underbody Material: Brass
• Certifications & Standards: ASME Certified, ANSI Compliant, ADA Compliant, ICC Compliant
• Faucet Centers: Single
• Features: ADA Compliant, Bluetooth, Hands Free
• Material: Brass
• Mounting Holes Required: 1 Mounting Hole
• Mounting Style: Deck Mounted
• Power Type: Battery
• Pressure Rating: 20 - 125 PSI
• Spout Clearance: 5 1/2 Inches
• Spout Type: Cast
• Style: Hands Free
• Temperature Rating: 40 - 140 Degrees F
• Type: Touchless Faucets
• Water Inlet Size: 3/8 Inches
• Manufacturer: Chicago
• Model #: 116.221.AB.1
• Manufacturer Part #: 116.221.AB.1
• UPC Code: 611943474102
• Battery Type: CR-P2
