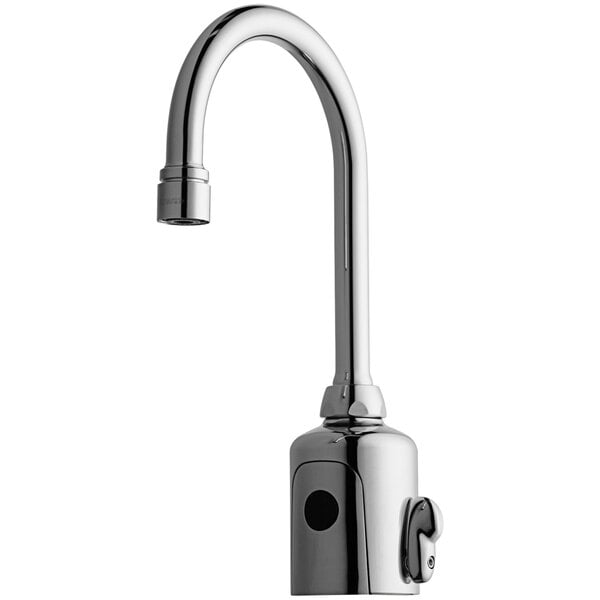

Chicago Faucets 116.123.AB.1T HyTronic Touch-free Programmable Faucet

Product Description

The CHICAGO FAUCETS 116.123.AB.1T is a touch-free, programmable faucet with above-deck electronics. It features Bluetooth communication and a user-adjustable temperature control mixer. The safety auto-timeout feature shuts the water off after 40 seconds. Adjustments and mode changes are easy using a smartphone or tablet with the Chicago Faucets CF Connect App.

• Touch-free, programmable faucet
• Above-deck electronics
• Bluetooth communication
• User adjustable temperature control mixer

Product Highlights

This HyTronic faucet combines touch-free operation with programmable features for efficient and hygienic use.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 116.123.AB.1T

Technical Specifications

• Spout: 5-1/4" Rigid/swing gooseneck spout (GN2AH8JKABCP)
• Outlet: Pressure compensating Econo-Flo non-aerating laminar spray outlet with adapter, 0.5 GPM (E2805-5JKABCP)
• Handle Kit: User temperature control handle kit, rounded (240.746.AB.1)
• Module Kit: HyTronic module kit with Bluetooth communication (242.433.00.1T)
• Mixer: User adjustable temperature control mixer included
• Flow Insert: Includes optional 1.5 GPM (5.7 L/min) laminar flow insert
• Mounting: Single-Hole
• Run Time: 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
• Transformer: 12 volt AC transformer required (order separately)
• Bluetooth: Built-in Bluetooth technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
• Supply: Dual supply for hot and cold water; flexible supply hoses included
• Finish: Polished Chrome
• Spout Length: 5 3/8 Inches
• Faucet Width: 2 1/2 Inches
• Faucet Height: 11 3/8 Inches
• Voltage: 12 Volts
• Faucet Centers: Single
• Features: ADA Compliant, Bluetooth, Hands Free
• Flow Rate: 0.5 GPM
• Included: Flex Inlets
• Material: Brass
• Mounting Holes Required: 1 Mounting Hole
• Mounting Style: Deck Mounted
• Power Type: AC Adapter
• Pressure Rating: 20 - 125 PSI
• Spout Clearance: 7 1/4 Inches
• Spout Type: Gooseneck
• Temperature Rating: 40 - 140 Degrees F
• Type: Sensor
• Water Inlet Size: 3/8 Inches
• Special Features: Touchless / Sensor
• Application: Kitchen
