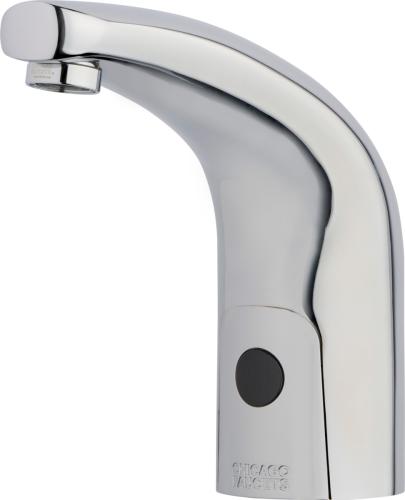

Chicago Faucets 116.111.AB.1T Electronic Sensor Faucet

Product Description

The CHICAGO FAUCETS 116.111.AB.1T electronic sensor faucet is a touch-free, programmable faucet with above-deck electronics. It features Bluetooth communication and a concealed internal temperature control mixer. The faucet includes a pressure compensating Econo-Flo non-aerating laminar spray. It also has a safety auto-timeout feature.

• Touch-free, programmable
• Above-deck electronics
• Bluetooth communication
• Concealed internal temperature control mixer

Product Highlights

This electronic sensor faucet offers touch-free operation and Bluetooth connectivity for easy adjustments. Ideal for commercial bathroom applications.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 116.111.AB.1T

Technical Specifications

• Part Number: 116.111.AB.1T
• Spout: HyTronic Traditional spout (240.724.AB.1)
• Spray: Pressure compensating Econo-Flo non-aerating laminar spray, 0.5 GPM (E2805JKABCP)
• Module Kit: HyTronic module kit with Bluetooth communication (242.433.00.1T)
• Temperature Control: Concealed internal temperature control mixer
• Flow Insert: Includes optional 1.5 GPM (5.7 L/min) laminar flow insert
• Mounting: Single-hole (4" and 8" deck plates available, see Accessories)
• Run Time: 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
• Transformer: 12 volt AC transformer required (order separately)
• Bluetooth: Built-in Bluetooth technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
• Supply: Dual supply for hot and cold water; flexible supply hoses included
• Finish: Polished chrome
• Mounting Type: Above Deck
• Number of Faucet Holes: 1
• Spout Height: 5-1/2 in
• Spout Reach: 5-1/2 in
• Spout Type: Traditional
• Spray Pattern: Non-Aerated Laminar
• Type: Touchless
• Valve/Cartridge Type: Solenoid Valve
• Commercial/Residential: Commercial
• Connection Size: 3/8 in
• Connection Type: Compression/Push
• Flow Rate: 0.5 gpm
• Material: Cast Brass
• Maximum Deck Thickness: 1-1/2 in
