Chicago Faucets 1102-GN8AE35-317AB Ecast Hot and Cold Water Dispenser 8 in Centers C1102GN8AE35317AB

Product Description

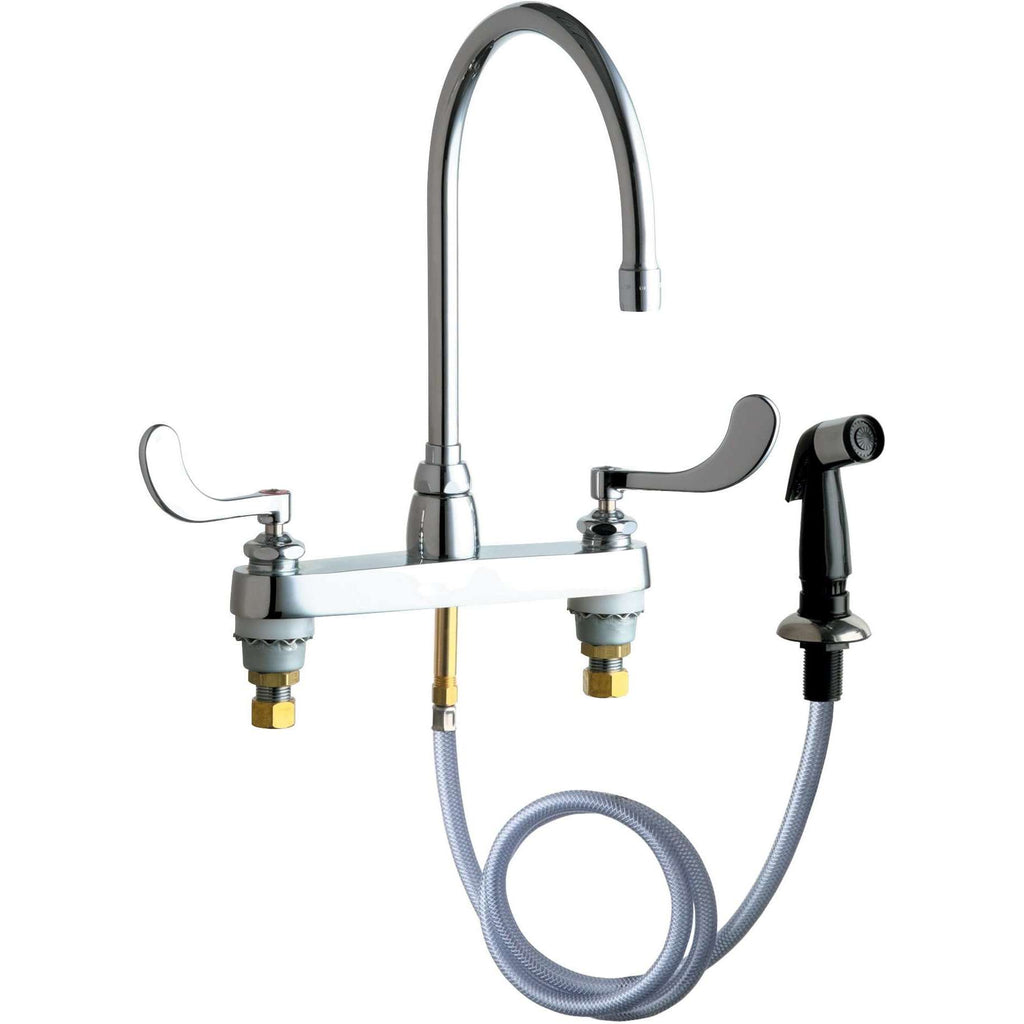

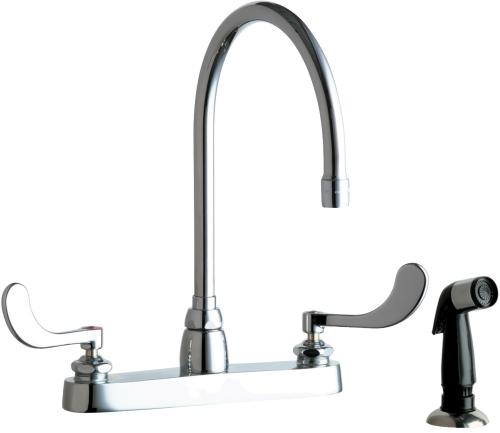

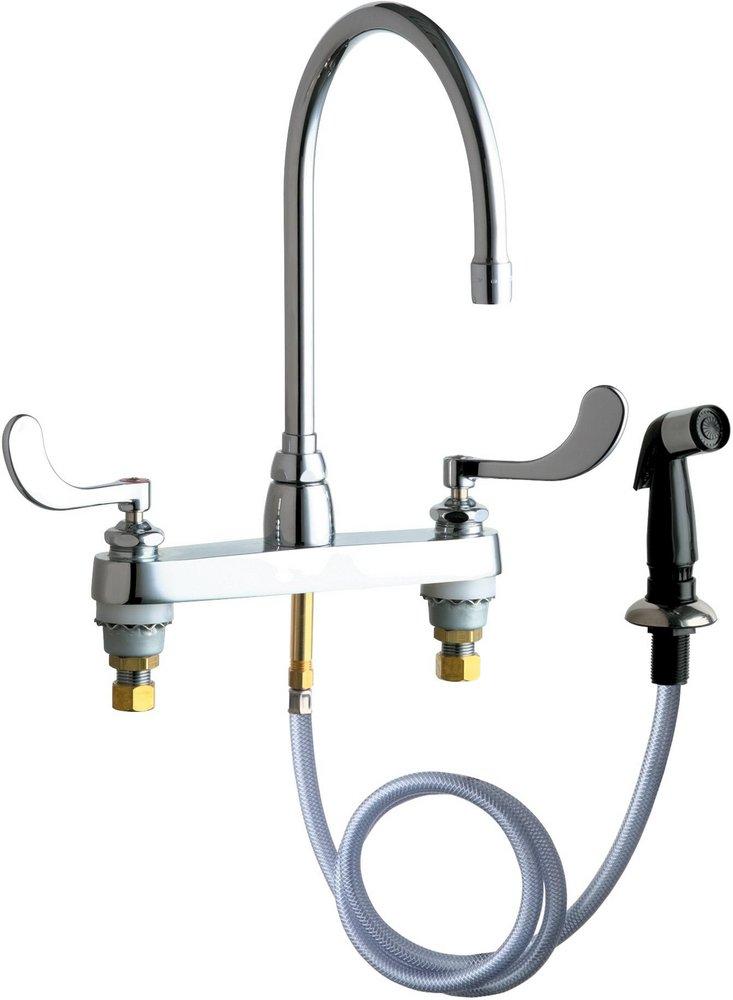

Chicago Faucets 1102-GN8AE35-317AB is an Ecast hot and cold water dispenser designed as a deck-mounted sink faucet for dedicated hot and cold service. The unit features an 8 in fixed-center rigid/swing gooseneck spout, a side spray with hose, and a 1.5 GPM (5.7 L/min) pressure-compensating Softflo aerator for water conservation. It uses Quaturn compression cartridges, vandal-proof 4 in wristblade handles, and 1/2 in NPSM supply inlets with coupling nut for flexible risers.

• Deck-mounted Ecast construction with 8 in fixed centers and rigid/swing gooseneck spout
• 1.5 GPM (5.7 L/min) pressure-compensating Softflo aerator and side spray with hose
• Quaturn compression operating cartridges with vandal-proof 4 in wristblade handles and 1/2 in NPSM supply inlets

Product Highlights

Deck-mounted Ecast faucet; 1.5 GPM Softflo aerator; side spray included

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 1102-GN8AE35-317AB

Technical Specifications

• Brand: Chicago Faucets
• Model / MPN: 1102-GN8AE35-317AB
• Manufacturer Part Number: C1102GN8AE35317AB
• SKU: 7114262
• UPC: 611943110093
• Product Type: Hot and cold water dispenser / sink faucet
• Mounting: Deck-mounted
• Centers: 8 in fixed centers
• Spout: 8 in rigid/swing gooseneck spout
• Aerator: Pressure-compensating Softflo aerator
• Flow Rate: 1.5 GPM (5.7 L/min)
• Handles: Vandal-proof 4 in wristblade handles (pair) with sixteen-point tapered broach
• Handle Type: Wristblade
• Cartridge: Quaturn compression operating cartridge
• Supply Inlets: 1/2 in NPSM supply inlets with coupling nut for 3/8 in or 1/2 in flexible riser
• Includes: Side spray with hose
• Finish: Polished chrome
• Construction: Ecast low-lead construction (less than or equal to 0.25% lead by weighted average)
• Weight: 7 lb
• Certifications: ASME A112.18.1/CSA B125.1; ADA ANSI/ICC A117.1; NSF/ANSI/CAN 61: Q less than or equal to 1; WaterSense certified
