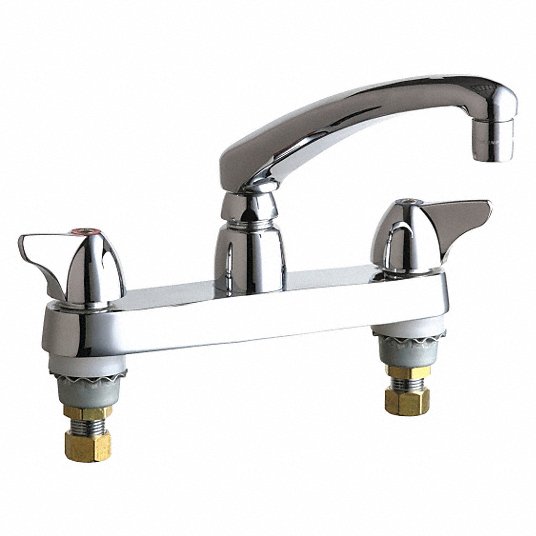

Chicago Faucets 1100-E35XKABCP Series Deck-mounted Manual Faucet 1.5 GPM

Product Description

The CHICAGO FAUCETS 1100-E35XKABCP is a deck-mounted manual faucet with 8" centers. Features an 8" L-type swing spout and a pressure compensating Softflo aerator with 1.5 GPM. Includes a ceramic 1/4-turn operating cartridge and 2" canopy single-wing handles. Constructed with ECAST construction with equal to or less than 0.25% lead content by weighted average.

• 8" L-type swing spout
• Pressure compensating Softflo aerator, 1.5 GPM
• Ceramic 1/4-turn operating cartridge

Product Highlights

This commercial grade faucet is built to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 1100-E35XKABCP
• Country of Origin: USA

Technical Specifications

• Spout: 8" L-type swing spout (L8LEOJKAB)
• Aerator: 1.5 GPM (5.7 L/min) Pressure Compensating Softflo Aerator
• Handles: 2" Canopy single-wing handle (pair) (1000-PRJKCP)
• Cartridge, right-hand: Ceramic 1/4-turn operating cartridge, right-hand (1-099XKJKABNF)
• Cartridge, left-hand: Ceramic 1/4-turn operating cartridge, left-hand (1-100XKJKABNF)
• Centers: 8" fixed centers
• Inlets: 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Package Quantity: 1
• Handle: Vandal Proof 2" Canopy Single Wing Handle
• Cartridge: Ceramic 1/4-Turn Operating Cartridge
• Overall Height: 6 5/8" (measured from mounting surface to highest point on faucet)
• Spout Height: 5.25 in.
• Spout Reach: 8 in.
• Required Installation Holes: 2
• Flow Rate: 1.5 gpm
• Maximum Deck Thickness: 1 1/2"
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Handles Included: 2
• Water Connection: 1/2"
• Faucet Centers: 8 in.
• Height: 6.625 in.
• Max Deck Thickness: 1.5 in.
• Spout Swivel: 360 Degrees
• Drain Assembly Included: No
• Escutcheon Included: Yes
• Filtering: No
• Sidespray: No
• Soap Dispenser Included: No
• Faucet Holes: 2
• Faucet Type: Kitchen Faucet
• Handle Material: Metal
• Handle Style: Lever
• Installation Type: Deck Mounted
• Material: Brass
• Number Of Handles: 2
• Pre Rinse: No
• Pullout Spray: No
• Theme: Basic
• Valve Type: Ceramic Disc
• ADA: Yes
• Approved for Commercial Use: Yes
• ASME Code: A112.18.1
• CA Drought Compliant: Yes
• Certifications: ANSI, ASME, NSF, CSA
• CSA Code: B125.1
• Eco Friendly: Yes
• Lead Leaching Certified NSF/ANSI 61: Yes
• Low Lead Compliant: Yes
• Made in America: Yes
• Brand: CHICAGO FAUCETS
• Product Type: Faucet
• Manufacturer Part Number: 1100-E35XKABCP
• UNSPSC: 40141702
• Kully Item #: 160453
• Manufacturer: Chicago
• Model #: 1100-E35XKABCP
• Application: Kitchen
• Style: Canopy Handle
