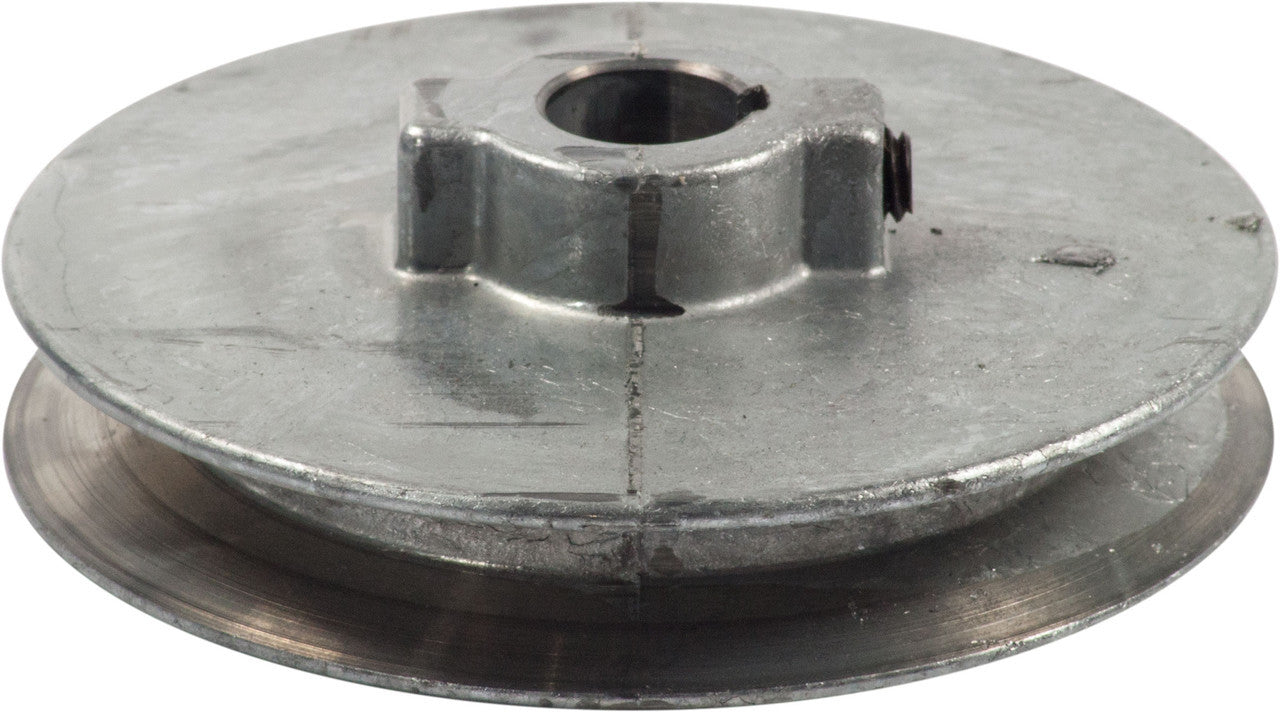

Chicago Die Casting 450-A-5/8 Single V-Groove Pulley

Product Description

The Chicago Die Casting 450-A-5/8 is a single V-groove pulley suitable for A section belts. It has a bore diameter of five eighths inches and is equipped with drilled and tapped set screws. The pulley features an outside diameter of four and a half inches and a pitch diameter of four and a quarter inches.

• Designed for A section belts
• Drilled and tapped with set screws
• Bore diameter of five eighths inches

Product Highlights

This pulley is constructed with zero spokes, providing durability and stability needed for efficient operation in various applications.

Product Information

Standard Information

• Brand: Chicago Die Casting
• MPN: 450-A-5/8

Technical Specifications

• Outside Diameter: 4.50 inches
• Pitch Diameter: 4.25 inches
• Bore Diameter: 0.625 inches
• Weight: 15.5 ounces
• Width: 1.21875 inches
• F: 0.6875 inches
• Height: 1.500 inches
• Number of Spokes: 0
