Chicago Die Casting 225-A-5/8 Pulley

Product Description

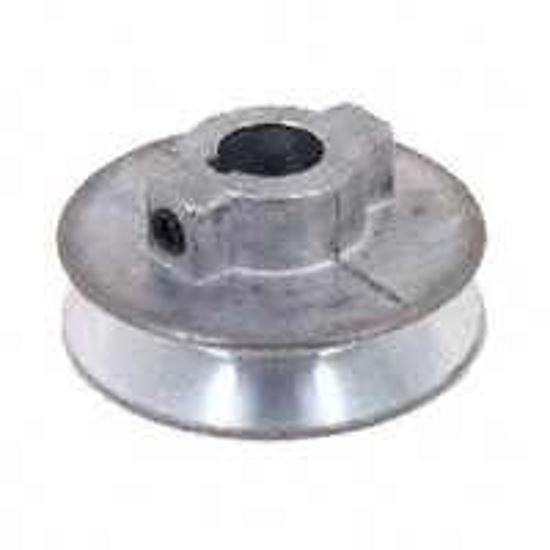

The Chicago Die Casting 225-A-5/8 is a single V-groove pulley specifically designed for A belts. It features a bore size of five-eighths inches and an outside diameter of two and one-quarter inches. This model is equipped with hollow head set screws that ensure secure fastening. It is manufactured from zinc and may include a keyway depending on the bore size.

• Designed for A belts.
• Features a bore size of five-eighths inches and an outside diameter of two and one-quarter inches.
• Includes hollow head set screws.

Product Highlights

Ideal for efficient power transmission with A belts, this pulley is suitable for various applications including machinery and equipment that require reliable operation.

Product Information

Standard Information

• MPN: 225-A-5/8
• Belt Size: one-half inch width x eleven-thirty-seconds inch thickness

Technical Specifications

• Bore Size: five-eighths inch
• Face Width: eleven-sixteenths inch
• Includes: hollow head set screws
• Keyway Size: three-sixteenths inch x three-thirty-seconds inch
• Material: zinc
• Outside Diameter: two and one-quarter inches
• Pitch Diameter: two inches
• Width: one and seven-thirty-seconds inches
