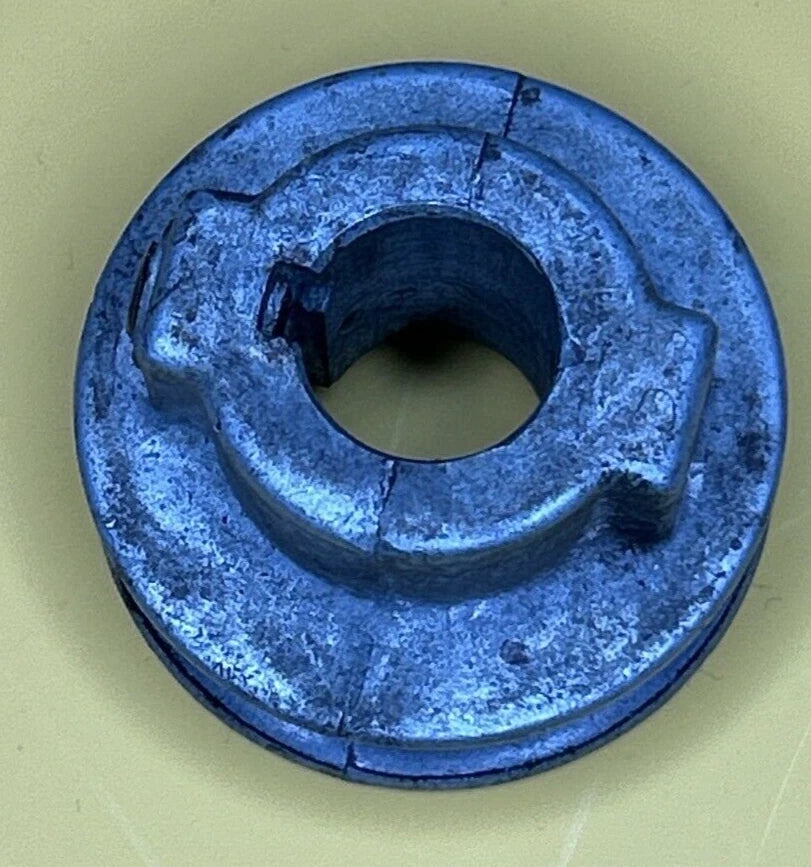

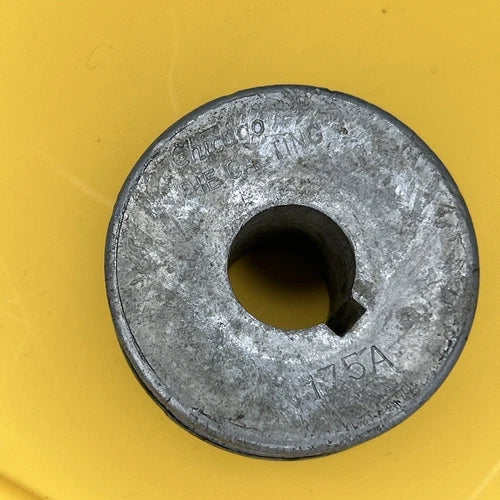

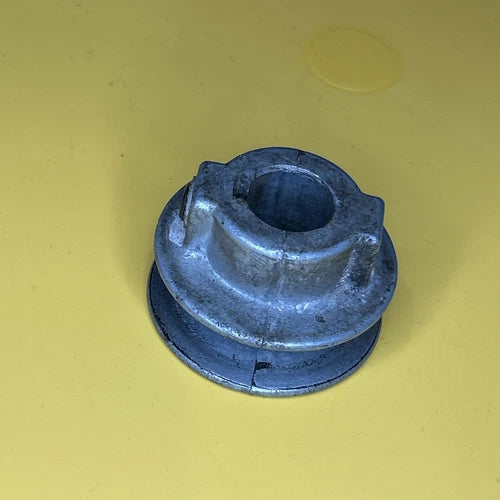

Chicago Die Casting 175-A-3/8 Single Groove Fixed Bore Die Cast Pulley

Product Description

The Chicago Die Casting 175-A-3/8 is a single groove fixed bore pulley made from durable die-cast Zamak #3 material. This pulley efficiently works with 3L, 4L, or A type V-belts, making it suitable for various applications. It features set screws for secure installation and may come with standard keyways and bore sizes.

• Compatible with 3L, 4L, or A Type V-Belts
• Features a single groove design
• Constructed from die-cast Zamak #3 material

Product Highlights

Reliable for powering machinery with multiple V-belt types.

Product Information

Standard Information

• Brand: Chicago Die Casting
• MPN: 175-A-3/8

Technical Specifications

• Outside Diameter: 1.75 inches
• Pitch Diameter: 1.50 inches
• Bore Diameter: 0.375 inches
• Keyway: 3/16 inches
• Weight: 4 ounces
• W: 1.1718 inches
• F: 0.6875 inches
• H: 1.375 inches
