Chicago Die Casting 175-A-1/2 Single V-Groove Pulley

Product Description

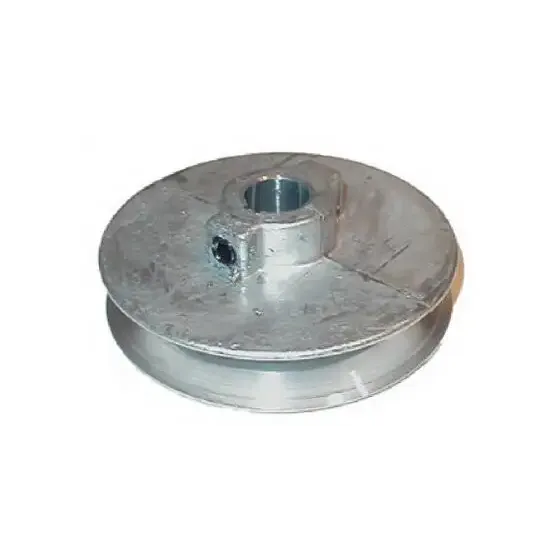

The Chicago Die Casting 175-A-1/2 is a single V-groove pulley suitable for use with A, B, and O section belts. This pulley features drilled and tapped holes along with set screws for secure installation.

• Designed for A, B, and O section belts.
• Drilled and tapped with set screws.
• Includes standard keyways and bore sizes.

Product Highlights

The pulley is constructed with an outside diameter of one point seventy-five inches and a pitch diameter of one point fifty inches. Its bore sizes support various options, making it versatile for different applications in machinery.

Product Information

Standard Information

• Brand: Chicago Die Casting
• MPN: 175-A-1/2

Technical Specifications

• Outside Diameter: 1.75 inches
• Pitch Diameter: 1.50 inches
• Bore Diameter .375: Yes
• Bore Diameter .500: Yes
• Bore Diameter .625: Yes - 3/16 Keyway
• Bore Diameter .750: Yes - 3/16 Keyway
• Bore Diameter 1: None
• Number of Spokes: 0
• Weight: 4 ounces
• W: 1.1718
• F: 0.6875
• H: 1.375
