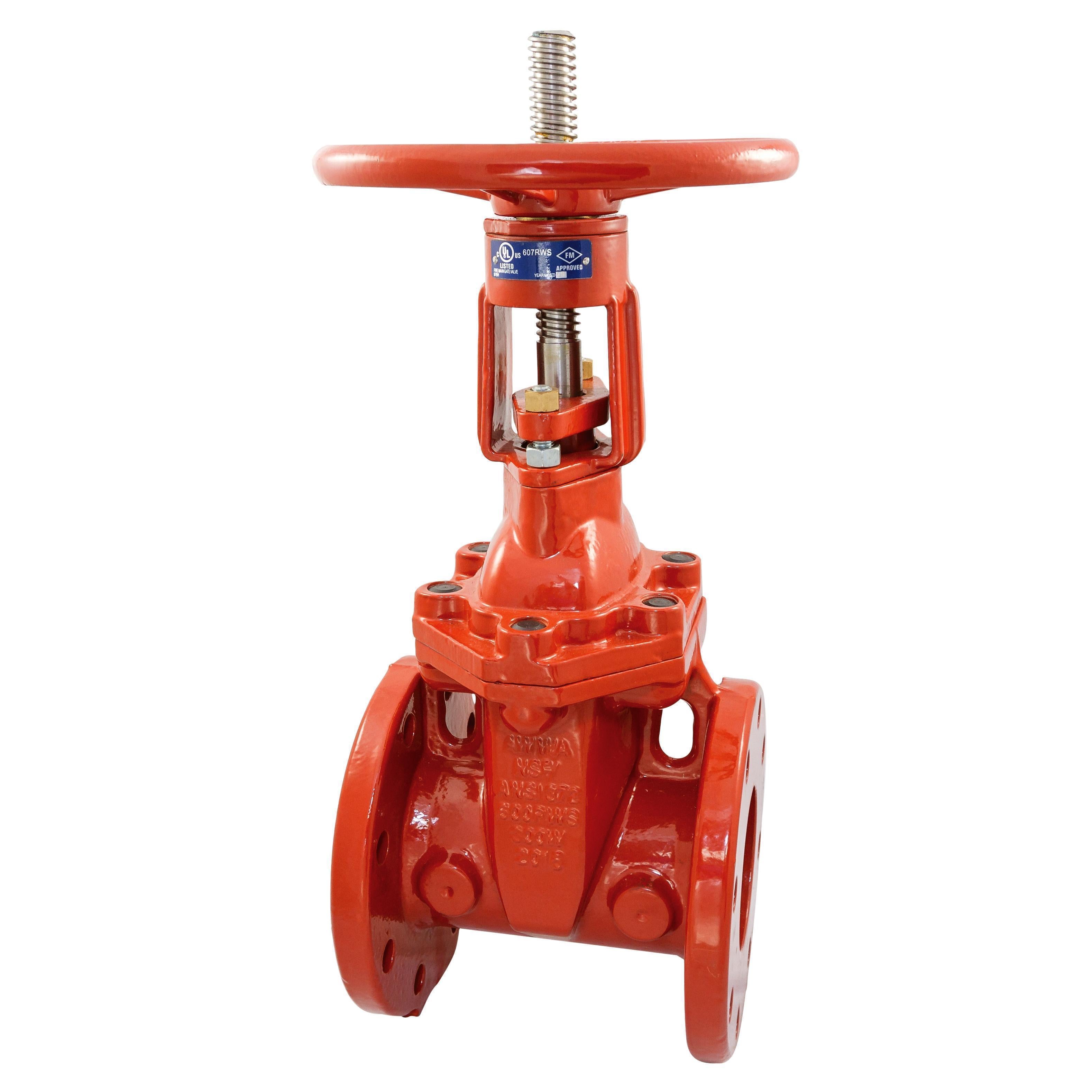

CHEMTROL NS2921XF F-607-RWSB Gate Valve With Ports 3 in

Product Description

The CHEMTROL NS2921XF F-607-RWSB Gate Valve is designed for reliable performance in various applications. It features a ductile iron body and is suitable for commercial, mechanical, and fire protection systems. The valve has a flanged end style for easy installation.

• Resilient wedge design enhances shutoff capabilities.
• Operates at a pressure rating of three hundred psi.
• Features an outside screw and yoke for visual position indication.

Product Highlights

This valve is ideal for users needing a quick visual check for open and closed positions. Its robust construction and certification by Underwriters Laboratories ensure it meets safety standards.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer: NIBCO Inc.

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Ductile Iron
• End Style: Flanged
• Pressure Class: 125 lb
• Pressure Rating: 300 psi
• Series: F-607-RWSB
• Nominal Size: 3 in
• Inlet to Outlet Length: 8 in
• Top to Inlet Center: 19.7 in
• Trim Material: 304 Stainless Steel
• Hand Wheel Diameter: 7.9 in
• Finish: Epoxy Coated
