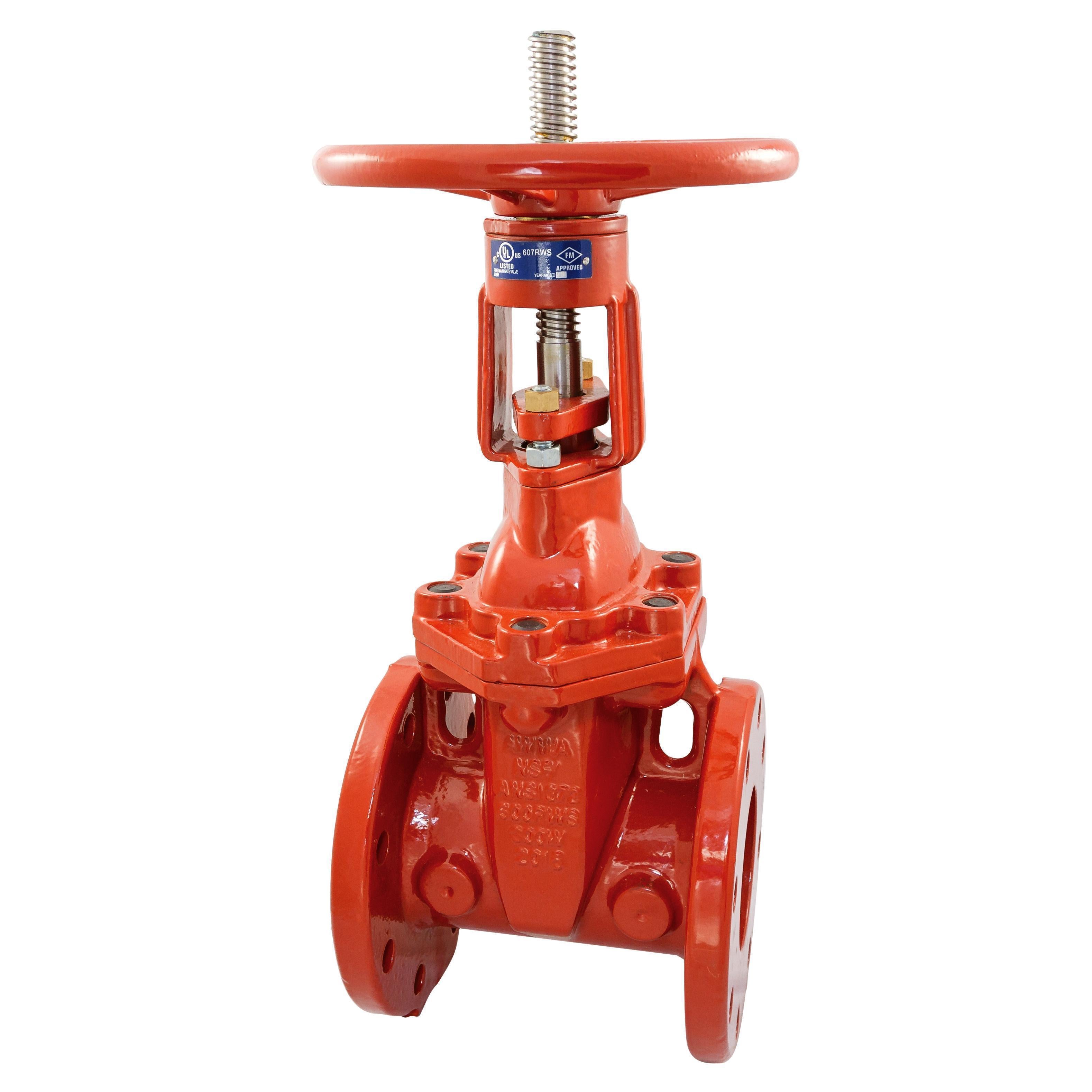

CHEMTROL NS2921XE F-607-RWSB Gate Valve With Ports, 2-1/2 in Nominal, Flanged End Style, 125 lb

Product Description

The CHEMTROL NS2921XE is a durable gate valve designed for various applications, including commercial and industrial settings. This valve features a resilient wedge and is constructed from ductile iron for long-lasting performance. Class 125 flanged connections mean easy installation and maintenance.

• Pipe Compatibility: Flanged End Style
• Pressure Rating: 300 psi
• Handwheel Actuator Included

Product Highlights

This valve offers effective shutoff with a clear open/closed position indicator. Ideal for fire protection and mechanical systems.

Product Information

Standard Information

• Brand: CHEMTROL
• Manufacturer: NIBCO Inc.

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Ductile Iron
• End Style: Flanged
• Finish: Epoxy Coated
• Nominal Size: 2-1/2 in
• Pressure Class: 125 lb
• Pressure Rating: 300 psi
• Inlet to Outlet Length: 7-1/2 in
• Top to Inlet Center: 17.8 in
