Chemical 00161 Static Mixer

Product Description

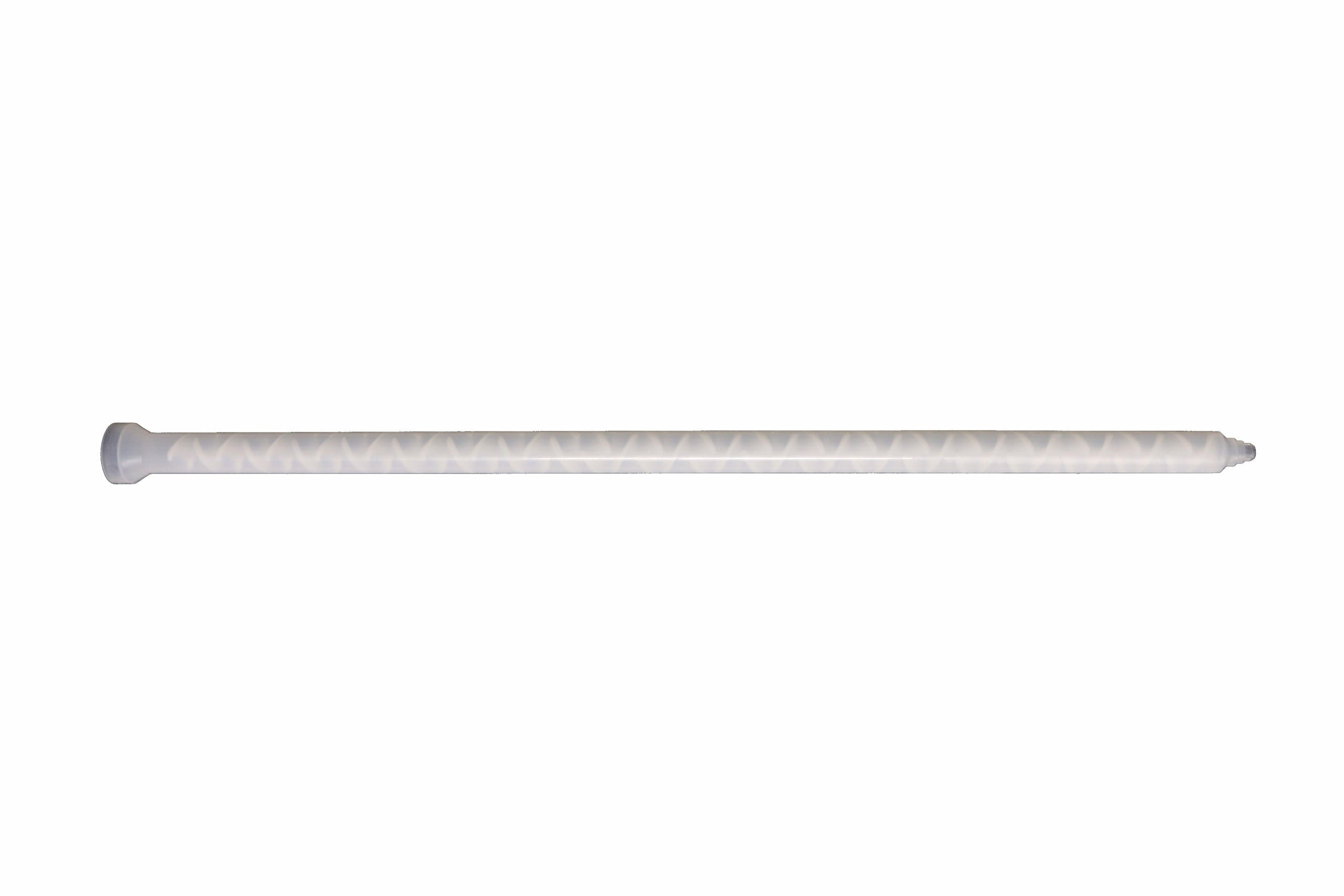

The Chemical 161 Static Mixer features an effective design for mixing two materials, A and B, through separate inlets. The mixer includes a bell inlet to minimize gelling and plugging during operation. Built from polypropylene housing and an acetal element, it accommodates standard cartridges and comes equipped with a stepped tip.

• Utilizes 24 mixing elements with an internal diameter of 0.5 inches.
• Entire housing length measures 11.54 inches.
• Constructed from robust polypropylene housing and acetal material.

Product Highlights

This mixer is ideal for applications requiring precise material mixing in various industries, including adhesives, coatings, and sealants.

Product Information

Standard Information

• Brand: Chemical
• MPN: 00161

Technical Specifications

• Part #: 161-224
• Mixing Elements: 24
• Element Diameter: 0.5 inches (13.0 mm)
• Housing Length: 11.54 inches (292.58 mm)
• Outside Diameter: 0.658 inches (16.71 mm)
• Outlet Tip Orifice: 0.12 inches (3.05 mm)
• Outlet Style: Step
• Storage: -20°C
