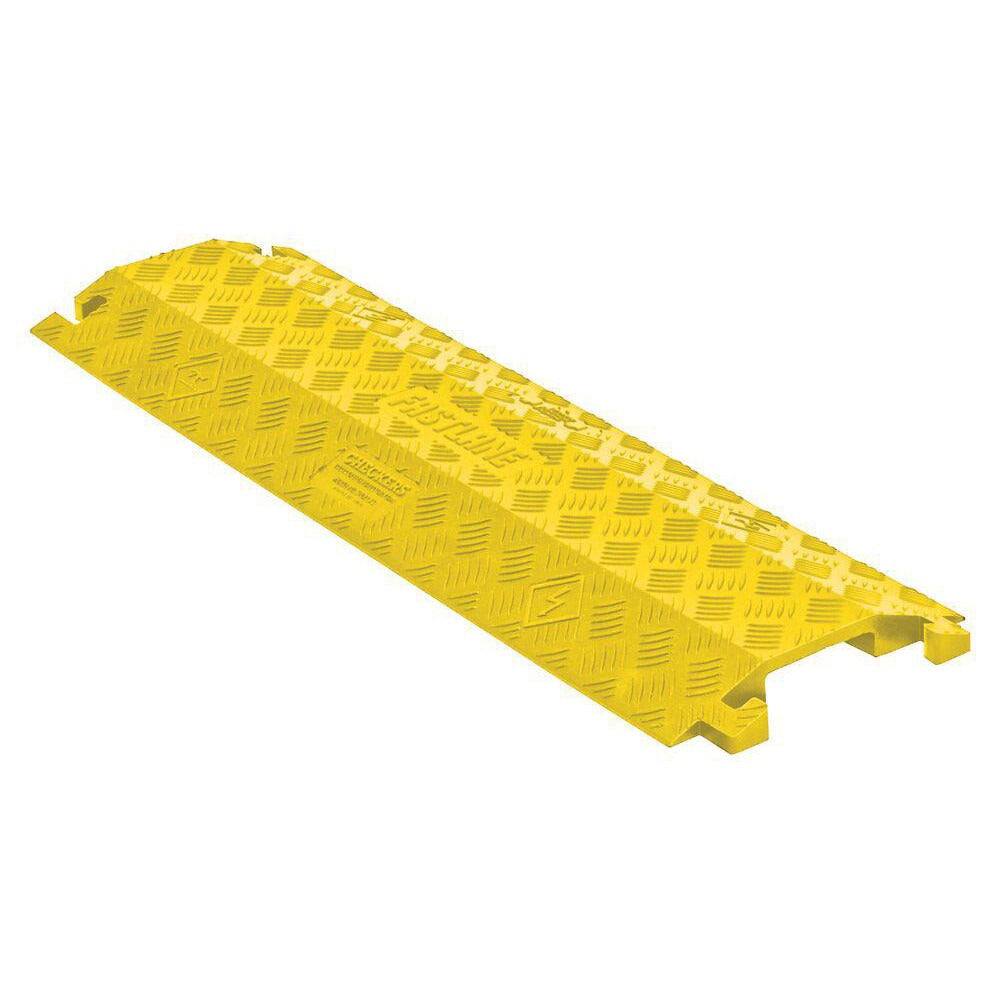

Checkers FL1X4-Y Drop Over Cable Ramp 1 Channel 36in

Product Description

The CHECKERS FL1X4-Y is a single-channel drop-over cable ramp designed to protect cables and hose lines routed across traffic areas. Built from polyurethane with a crisscross texture surface, this ramp handles a working load limit of 2,100 pounds while keeping a single cable or hose line secure beneath it. The lay-under cable entry style lets installers place the cable first, then set the ramp directly on top without threading. At 36 inches long and 11 inches wide, it provides solid coverage in high-traffic zones on job sites, warehouses, events, or industrial floors. The L-shaped connection type allows multiple units to link end-to-end for extended runs.

This ramp is intended for single runs of cable and hose lines in environments where foot traffic, light vehicle traffic, or equipment movement poses a risk of cable damage or trip hazards. The orange color provides high visibility, which is critical in active work zones. At 1.5 inches overall height with a 1-inch channel height and 4-inch channel width, it accommodates cables and hoses up to 1 inch in diameter. Polyurethane construction resists crushing, abrasion, and outdoor conditions, making it a practical fit for both indoor and outdoor temporary or semi-permanent cable protection applications.

Key Features

• Drop-over ramp style with lay-under cable entry for fast, tool-free cable placement
• Single channel accommodates cables and hoses up to 1 inch in diameter
• 2,100-pound working load limit supports foot and light vehicle traffic
• L-shaped connection type allows end-to-end linking for longer cable runs
• Polyurethane construction with crisscross texture for durability and traction
• High-visibility orange color improves site safety in active work zones

Compatibility

Designed for use with single runs of cable and hose lines requiring surface-level protection in temporary or permanent installations where drop-over placement is required.

Installation Notes

No special tools are required for installation. Place the cable or hose line flat on the ground along the intended route, then set the ramp directly over it using the lay-under entry. When linking multiple sections, verify that L-shaped connectors are fully seated before the area is opened to traffic. Inspect the ramp and cable periodically for wear or displacement, particularly in high-cycle or heavy-traffic areas.
