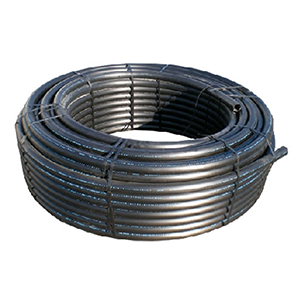

Charter Plastics 3/4X800 Geothermal Pipe 0.75in X 800ft Sdr

Product Description

The CHARTER PLASTICS 3/4X800 is a geothermal ground loop pipe supplied in an 800-foot coil at 0.75 inches nominal diameter and manufactured to SDR dimensional standards. SDR-rated pipe maintains a consistent wall thickness-to-diameter ratio, which is critical for pressure performance in closed-loop geothermal heat pump systems. This pipe is designed for direct burial in horizontal, vertical, or pond loop configurations and is typically installed by licensed HVAC contractors or geothermal system specialists. Its long coil length reduces the number of field joints required, minimizing potential leak points in the ground loop.

This pipe is used in residential and light commercial geothermal heat pump installations where a heat exchanger loop is buried underground or submerged to exchange thermal energy with the earth. It is suited for horizontal trenched loops, vertical borehole installations, and open-body pond loops. The 800-foot coil length is well matched to single-loop or multi-loop geothermal field designs where continuous runs are preferred to reduce fittings and labor.

Key Features

• SDR-rated construction provides consistent wall thickness for reliable pressure performance
• 0.75 inch nominal diameter suitable for standard residential geothermal loop circuits
• 800-foot continuous coil reduces field joints and potential leak points
• Designed for direct burial in geothermal ground loop applications
• Compatible with horizontal trench, vertical bore, and pond loop system configurations

Compatibility

Designed as an OEM-style replacement and new-installation pipe for residential and light commercial closed-loop geothermal heat pump ground loop systems.

Installation Notes

Installation is typically performed by a licensed HVAC or geothermal contractor familiar with closed-loop ground heat exchanger systems. Shut off and isolate the geothermal system before making any connections to existing loop piping. Fusion welding or approved mechanical fittings should be used per manufacturer guidelines and local mechanical codes to ensure leak-free joints. Burial depth and loop spacing must comply with local codes and geothermal system design specifications.

Technical Specifications

• Nominal Diameter: 0.75 inches
• Coil Length: 800 ft
• Pipe Standard: SDR
• Application: Geothermal ground loop

Standard Information

• Brand: CHARTER PLASTICS
• Manufacturer Part Number: 3/4X800
