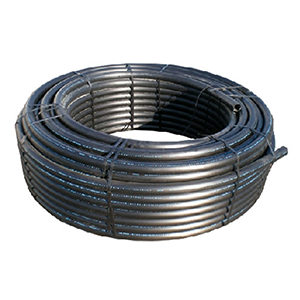

Charter Plastics 0 Geothermal Pipe 3/4 in X 500 Ft Sdr

Product Description

The CHARTER PLASTICS 0 is a geothermal ground loop pipe sized at 3/4 inch diameter in a 500-foot coil, rated to SDR (Standard Dimension Ratio) pressure standards. This pipe is designed for closed-loop and open-loop geothermal heat pump systems, where it circulates fluid between the heat pump unit and the buried ground loop. HVAC technicians and geothermal system installers use this pipe for new installations and loop field replacements. The SDR rating ensures consistent wall thickness relative to the outside diameter, supporting the pressure demands typical of geothermal loop applications.

This pipe is used in residential and light commercial geothermal heating and cooling systems. It is buried in horizontal trenches, vertical boreholes, or pond loop configurations depending on site conditions. The 500-foot coil length reduces the number of joints required in longer loop runs, which lowers the risk of connection failures underground. Geothermal loop installers and licensed HVAC contractors handling ground-source heat pump systems are the primary installers of this product.

Key Features

• 3/4 inch diameter sized for standard residential geothermal loop applications
• 500-foot coil length minimizes underground joints and connection points
• SDR-rated construction provides consistent wall thickness and pressure performance
• Suitable for closed-loop and open-loop ground heat exchanger configurations

Compatibility

Designed as an OEM-style replacement or new-installation pipe for residential and light commercial geothermal ground loop systems requiring 3/4 inch SDR-rated polyethylene pipe.

Installation Notes

Installation should be performed by a licensed HVAC contractor or geothermal loop installer familiar with ground-source heat pump systems. Shut down the heat pump system and depressurize the loop before making any connections or splices. Heat fusion or approved mechanical fittings should be used per manufacturer and local code requirements to ensure leak-free underground joints. Burial depth and trench specifications must comply with local building codes and the system designer's loop field layout.

Technical Specifications

• Pipe Diameter: 3/4 inch
• Length: 500 feet
• Pipe Rating: SDR
• Application: Geothermal ground loop

Standard Information

• Brand: CHARTER PLASTICS
• Manufacturer Part Number: 0
