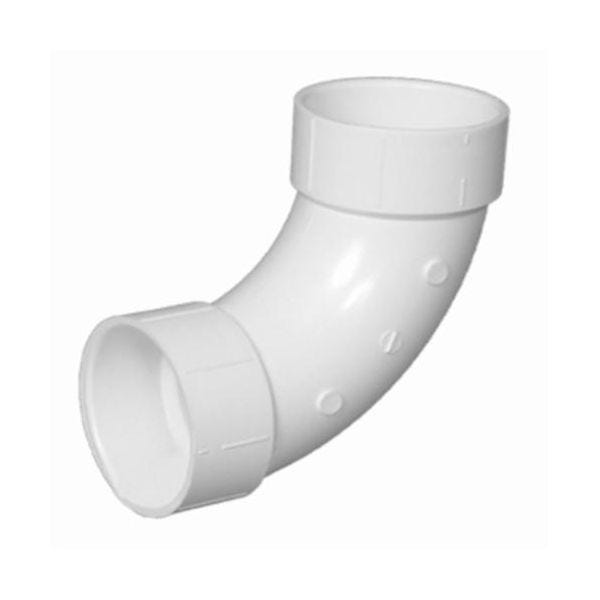

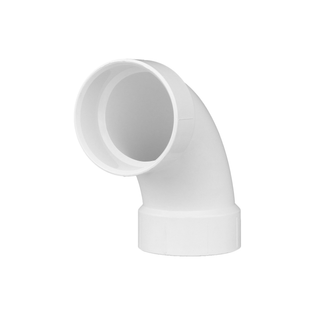

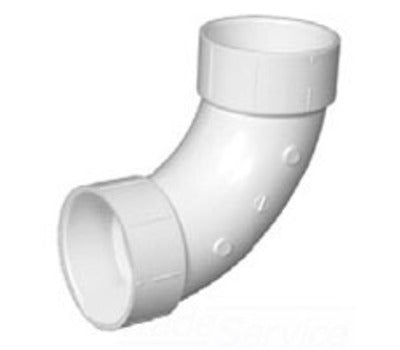

CHARLOTTE PVC003041400 Charlotte PVC003041400 6-Inch Long Sweep 90-Degree Elbow REPLACEMENT MPN

Product Description

The Charlotte PVC003041400 is a six-inch, 90-degree long sweep elbow fitting designed specifically for drain, waste, and vent systems. Constructed from high-quality PVC, this fitting features hub end style connections, making it easy to install using solvent cement without the need for special tools.

• Suitable for non-pressure applications
• Designed for systems with temperatures up to 140 degrees Fahrenheit
• Features hub x hub connections

Product Highlights

This elbow fitting provides a reliable solution for your drain, waste, and vent needs in plumbing projects.

Product Information

Standard Information

• Brand: Charlotte Pipe
• MPN: PVC003041400

Technical Specifications

• Material: PVC
• Nominal Size: six inches
• Type: Long Sweep
• Temperature Rating: 140 degrees F
• Color: White
• Schedule Rating: SCH 40/STD
• Fitting/Connector Type: 90-degree Elbow
• End Style: Hub
• Bend Angle: 90 degrees
• Specifications Met: ASTM D 1784, ASTM D 2665, ASTM D 3311
• Maximum Operating Temperature: 140 degrees F
• Minimum Operating Temperature: 32 degrees F
• Connection Size: 6 x 6 inches
• Weight: 6.673 lb
• Domestic/Import: Domestic
