Charlotte Pipe XBRS-MA-2LF Cpvc Low Lead Brass Male Adapter 2in

Product Description

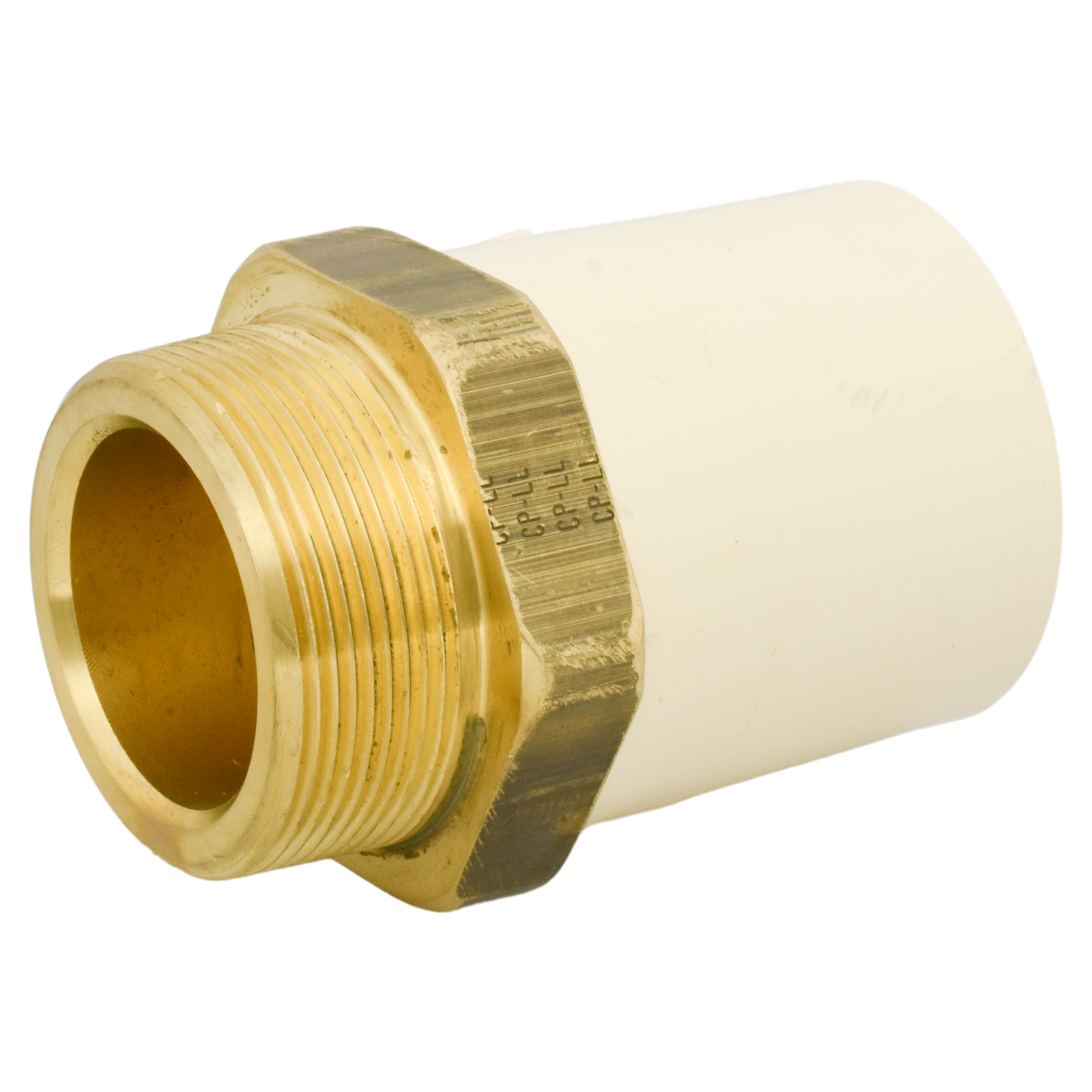

The CHARLOTTE PIPE XBRS-MA-2LF is a 2-inch low lead brass male adapter designed for CPVC CTS (Copper Tube Size) piping systems used in hot and cold potable water distribution. Built in a Thompson-style configuration, it transitions from a male iron pipe (MIP) threaded brass end to a CPVC socket end, creating a secure, leak-resistant connection between metallic and plastic piping. This adapter is rated for pressure systems where operating temperatures do not exceed 180 degrees F, making it well suited for residential and light commercial plumbing installations. Licensed plumbers are the primary installers for this fitting in new construction and retrofit applications.

This fitting is intended for use with FlowGuard Gold CPVC CTS hot and cold water distribution systems. It is appropriate for residential and commercial pressure piping applications where a reliable threaded brass-to-CPVC transition is required. The low lead brass construction meets current regulatory requirements for use in potable water systems. No primer is required when solvent-cementing the CPVC socket end, which simplifies installation workflow compared to PVC fittings.

Key Features

• Low lead brass construction meets potable water regulatory requirements
• Thompson-style MIP x CPVC male adapter configuration for reliable metal-to-plastic transitions
• Rated for temperatures up to 180 degrees F in pressure service
• Compatible with FlowGuard Gold CPVC CTS systems — no primer required on the CPVC socket end
• Resistant to rust and corrosion for long-term service life
• Manufactured in the USA

Compatibility

Designed for use with FlowGuard Gold CPVC CTS hot and cold water distribution piping in 2-inch size. Suitable for pressure systems with operating temperatures not exceeding 180 degrees F.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure before beginning work. Apply solvent cement to the CPVC socket end per the cement manufacturer instructions — no primer is required for the CPVC side. Hand-tighten the MIP threaded end into the mating female fitting, then wrench-tighten as appropriate; do not overtighten brass threads into plastic female fittings.

Technical Specifications

• Size: 2 inches (CTS)
• Connection Type: MIP x CPVC Socket (Thompson Style)
• Material: Low Lead Brass
• Maximum Temperature: 180 degrees F
• Application: Hot and Cold Potable Water Distribution
• Country of Origin: USA
• UPC: 611942124091

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: XBRS-MA-2LF
