Charlotte Pipe XBRS-MA-1LF Cpvc Cts Brass Male Adapter 1 in

Product Description

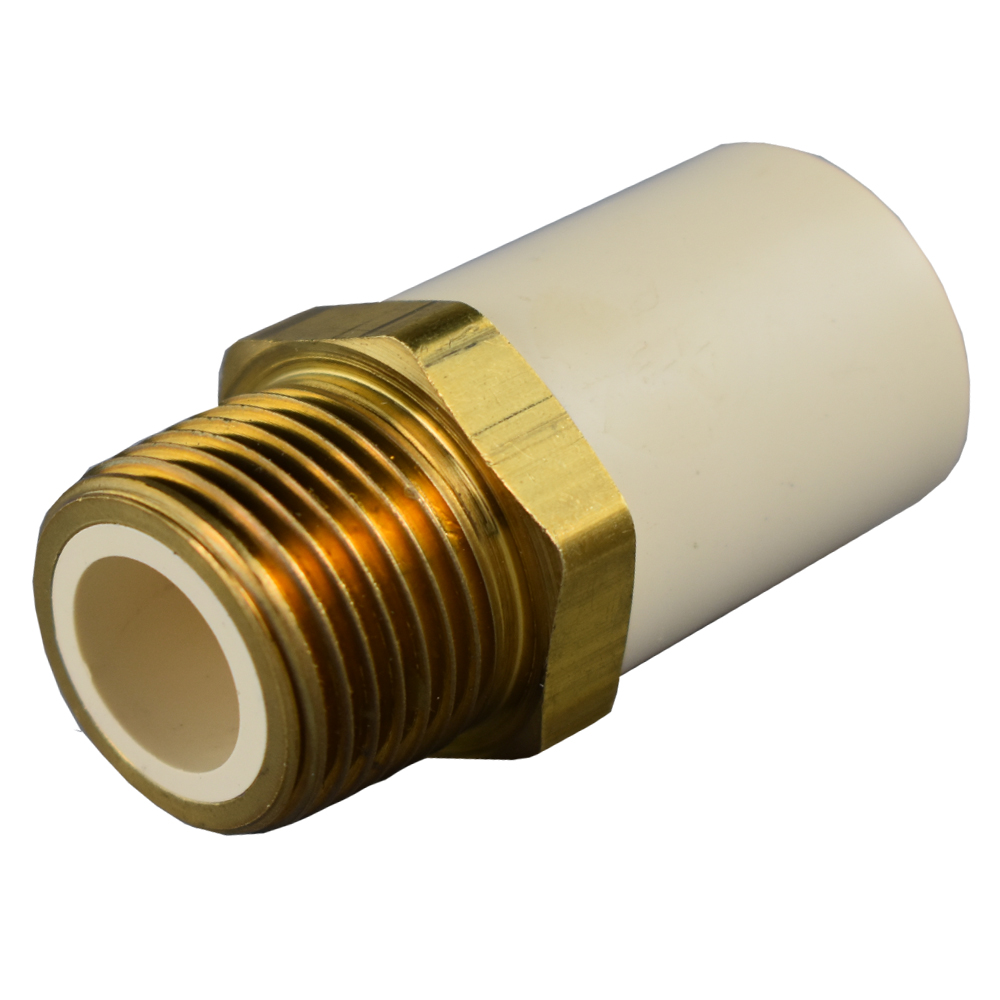

The CHARLOTTE PIPE XBRS-MA-1LF is a 1-inch low lead brass male adapter designed for CPVC CTS (Copper Tube Size) plumbing systems. This Thompson-style fitting connects a CPVC pipe to a male iron pipe thread (MIP) connection, serving as a reliable transition point in hot and cold water distribution systems. It is manufactured from low lead brass to meet current potable water regulations. The adapter is suited for pressure systems where operating temperatures do not exceed 180 degrees F. Licensed plumbers and pipefitters install this type of fitting in residential and light commercial water distribution applications.

This fitting is used in FlowGuard Gold CPVC CTS pressure piping systems for both hot and cold water service. It is appropriate for residential water distribution lines and light commercial installations where a transition from CPVC pipe to a threaded male connection is required. No primer is required for the CPVC socket end, which simplifies installation workflow. The fitting is non-toxic and meets stringent industry standards for potable water contact.

Key Features

• Low lead brass construction meets current federal and state lead-free requirements for potable water fittings
• Thompson-style male adapter connects CPVC CTS pipe to MIP threaded fittings
• Rated for pressure systems with temperatures up to 180 degrees F
• No primer required on the CPVC socket end, reducing installation steps
• Non-toxic materials suitable for potable hot and cold water distribution
• Manufactured in the USA

Compatibility

Designed for use with FlowGuard Gold CPVC CTS hot and cold water distribution systems operating as pressure piping. Compatible with 1-inch CTS CPVC pipe and standard MIP threaded fittings and valves.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply and depressurize the line before cutting or joining any pipe. Apply CPVC-rated solvent cement to the socket end per the cement manufacturer's instructions. Use thread sealant tape or compound rated for potable water on the MIP threads before assembly. Do not over-tighten threaded connections, as brass fittings can crack under excessive torque.

Technical Specifications

• Size: 1 inch CTS
• Connection Type: CPVC Socket x Male Iron Pipe Thread (MIP)
• Material: Low Lead Brass
• Maximum Temperature: 180 degrees F
• Application: Hot and Cold Potable Water Distribution
• Style: Thompson Style (302-405NL)
• UPC: 611942153602
• Country of Origin: USA

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: XBRS-MA-1LF
