Charlotte Pipe XBRS-FA-34LF Cpvc Female Adapter 3/4 in

Product Description

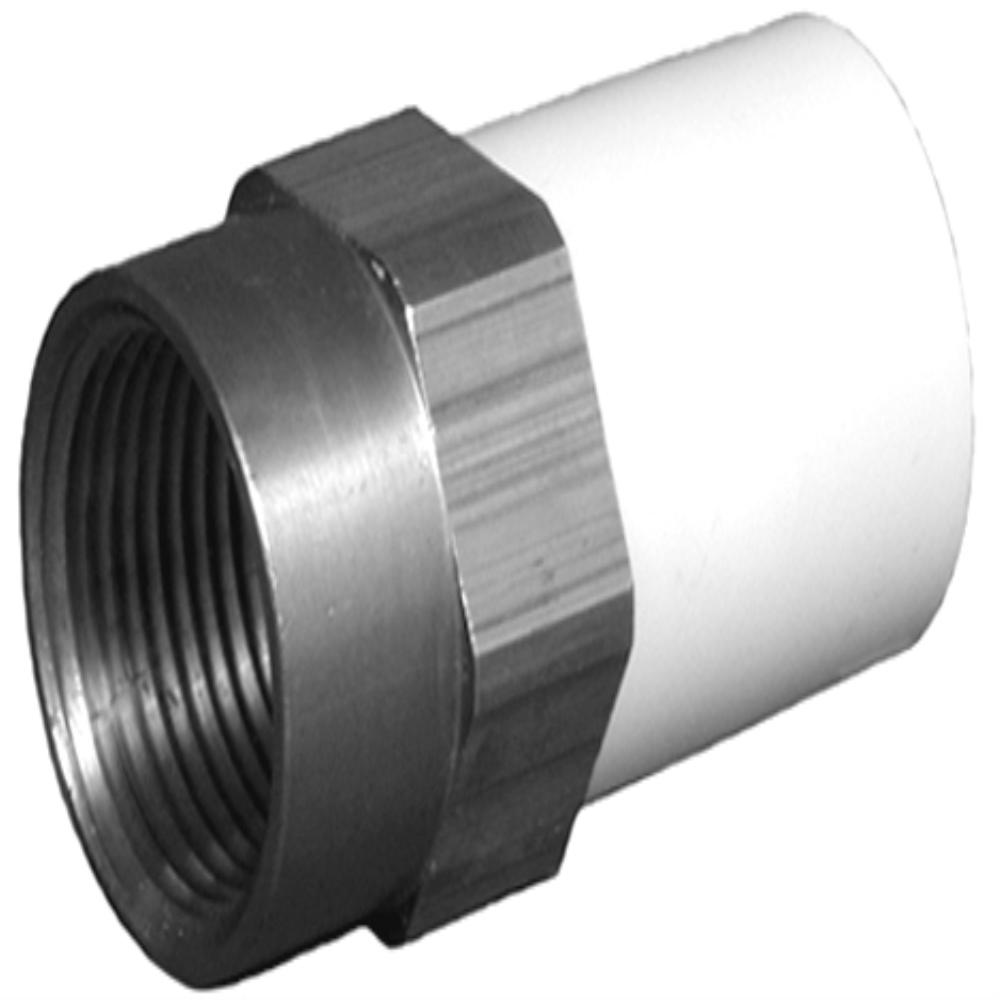

The CHARLOTTE PIPE XBRS-FA-34LF is a 3/4-inch CTS low-lead brass female adapter designed to transition between a female iron pipe (FIP) brass thread and a CPVC socket end. This fitting is manufactured in the Thompson style and is built for use in hot and cold potable water distribution systems operating under continuous pressure. The low-lead brass construction meets current Safe Drinking Water Act compliance requirements, making it appropriate for installation in residential and light commercial plumbing where lead content restrictions apply. Licensed plumbers install this fitting as part of FlowGuard Gold CPVC piping assemblies.

This adapter is used in 3/4-inch CTS CPVC pressure piping systems for hot and cold water distribution where temperatures do not exceed 180 degrees F. It is suited for residential water supply lines, multi-family construction, and light commercial applications. The female threaded brass end accepts a standard male iron pipe thread, while the CPVC socket end connects directly to 3/4-inch CTS CPVC pipe. No primer is required on the CPVC socket side, simplifying installation in tight spaces or retrofit scenarios.

Key Features

• Low-lead brass construction compliant with Safe Drinking Water Act requirements for potable water systems
• 3/4-inch CTS sizing connects standard CPVC pipe without requiring primer on the plastic side
• FIP threaded brass end provides a reliable, pressure-rated connection to threaded metal fittings and valves
• Rated for use in systems where operating temperatures do not exceed 180 degrees F
• Non-toxic materials suitable for hot and cold potable water distribution
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed for use with 3/4-inch CTS FlowGuard Gold CPVC piping systems in hot and cold water distribution applications. Replaces Thompson style fitting reference 302-414NL (H48101).

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and relieve system pressure before installing or removing any fitting. Apply CPVC solvent cement to the CPVC socket end per the cement manufacturer's instructions — no primer is required on the CPVC side, but ensure pipe and fitting surfaces are clean and dry before cementing. Use a strap wrench on the brass threaded end to avoid over-tightening, which can crack the fitting body or damage the thread seal.

Technical Specifications

• Pipe Size: 3/4 inches CTS
• Connection Type: Female Iron Pipe (FIP) Brass Thread x CPVC Socket
• Material: Low-Lead Brass / CPVC
• Style: Thompson Style (302-414NL)
• Maximum Temperature Rating: 180 degrees F
• Application: Hot and Cold Potable Water Distribution, Pressure Systems
• Lead Compliance: Low-Lead (Safe Drinking Water Act compliant)
• Country of Origin: USA
• UPC: 611942123612

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: XBRS-FA-34LF
