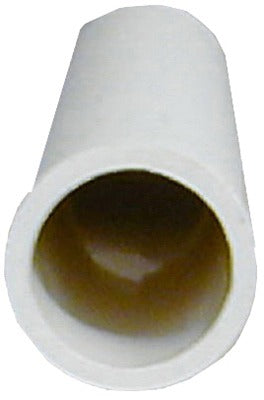

Charlotte Pipe PVC200070600 Sdr 21 Pvc Pipe 3/4 in X 10 Ft

Product Description

The CHARLOTTE PIPE FOUNDRY CO. PVC200070600 is a solid-wall, plain-end PVC pressure pipe rated for 200 PSI service. Built to SDR 21 dimensions, this pipe delivers consistent wall thickness relative to outside diameter, making it a reliable choice for pressure-rated water distribution and irrigation systems. Manufactured to ASTM D-2241 standards and certified to NSF Standard 14 and 61, it meets the material and potable-water safety requirements that inspectors and engineers routinely call out on commercial and residential projects. Each stick measures 3/4 inch nominal diameter by 10 feet in length. Licensed plumbers and irrigation contractors are the primary installers for this product type.

This pipe is suited for buried and above-grade pressure applications where PVC is an approved material under local plumbing or irrigation codes. Typical uses include residential and light-commercial potable water supply lines, irrigation mainlines, and reclaimed-water distribution. The plain-end configuration accepts solvent-welded socket fittings throughout. SDR 21 pipe is commonly specified where a 200 PSI cold-water working pressure rating is required and where PVC is permitted by the authority having jurisdiction. This product ships in a package quantity of 10 sticks.

Key Features

• 200 PSI cold-water working pressure rating for demanding pressure-distribution applications
• SDR 21 solid wall construction provides uniform wall thickness-to-diameter ratio
• Plain end configuration designed for solvent-weld socket fittings
• Manufactured to ASTM D-2241 for dimensional and material consistency
• NSF Standard 14 and 61 certified for use in potable water systems
• Sold in a package quantity of 10 sticks per order unit

Compatibility

Designed for use with standard 3/4 inch SDR 21 or Schedule-rated PVC solvent-weld pressure fittings in potable water, irrigation, and general pressure-distribution piping systems where ASTM D-2241 PVC pipe is specified.

Installation Notes

Installation should be performed by a licensed plumber or certified irrigation contractor in accordance with applicable local codes, IPC, and manufacturer solvent-welding instructions. Depressurize and drain the system completely before cutting into any existing line. Use a fine-tooth saw and deburring tool to prepare cut ends, and apply primer and solvent cement rated for PVC pressure pipe per ASTM standards. Allow full cure time before pressurizing the system.
