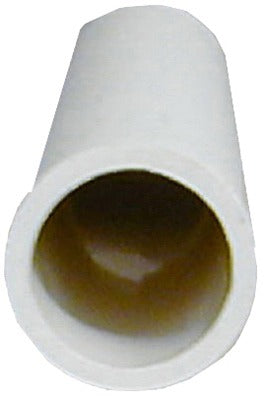

Charlotte Pipe PVC160200600HC 2in SDR26 Pvc Pipe 160 Psi

Product Description

The CHARLOTTE PIPE FOUNDRY CO. PVC160200600HC is a solid-wall, plain-end PVC pressure pipe rated for 160 PSI service. Manufactured to SDR 26 dimensional standards, this pipe measures 2 inches in diameter and comes in 10-foot lengths. It meets ASTM D-2241 specifications for PVC pressure-rated pipe and carries NSF Standard 14 and 61 certification, making it suitable for potable water and pressure distribution applications. Licensed plumbers and irrigation contractors are the primary installers of this product in both residential and light commercial systems.

This pipe is used in water distribution, irrigation mainlines, and other pressure piping systems where a reliable, chemically resistant thermoplastic is required. The SDR 26 wall thickness delivers a consistent 160 PSI pressure rating across the full pipe diameter. Plain-end construction allows for solvent-cement socket fittings or approved mechanical couplings. It is well suited for underground burial in residential potable water supply lines, agricultural irrigation systems, and municipal service connections where ASTM D-2241 compliance is specified.

Key Features

• 160 PSI pressure rating per ASTM D-2241
• SDR 26 solid wall construction for consistent wall thickness
• Plain end configuration compatible with solvent-cement socket fittings and mechanical couplings
• NSF Standard 14 and 61 certified for potable water contact
• 2-inch diameter in 10-foot length for straightforward field cutting and installation

Compatibility

Designed as an OEM-style pressure pipe for use with standard 2-inch schedule and SDR-series PVC socket fittings and couplings rated for 160 PSI or higher pressure service in ASTM D-2241 compliant systems.

Installation Notes

Installation should be performed by a licensed plumber or qualified irrigation contractor in accordance with applicable local plumbing codes and ASTM D-2241 guidelines. Depressurize and isolate the system completely before cutting into any existing line. Use only NSF-listed PVC primer and solvent cement rated for pressure pipe joints, and allow full cure time before pressurizing. Do not exceed the rated working pressure or expose the pipe to solvents, fuels, or incompatible chemicals.
