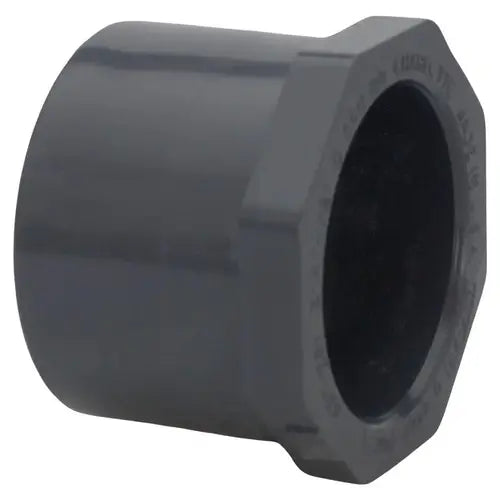

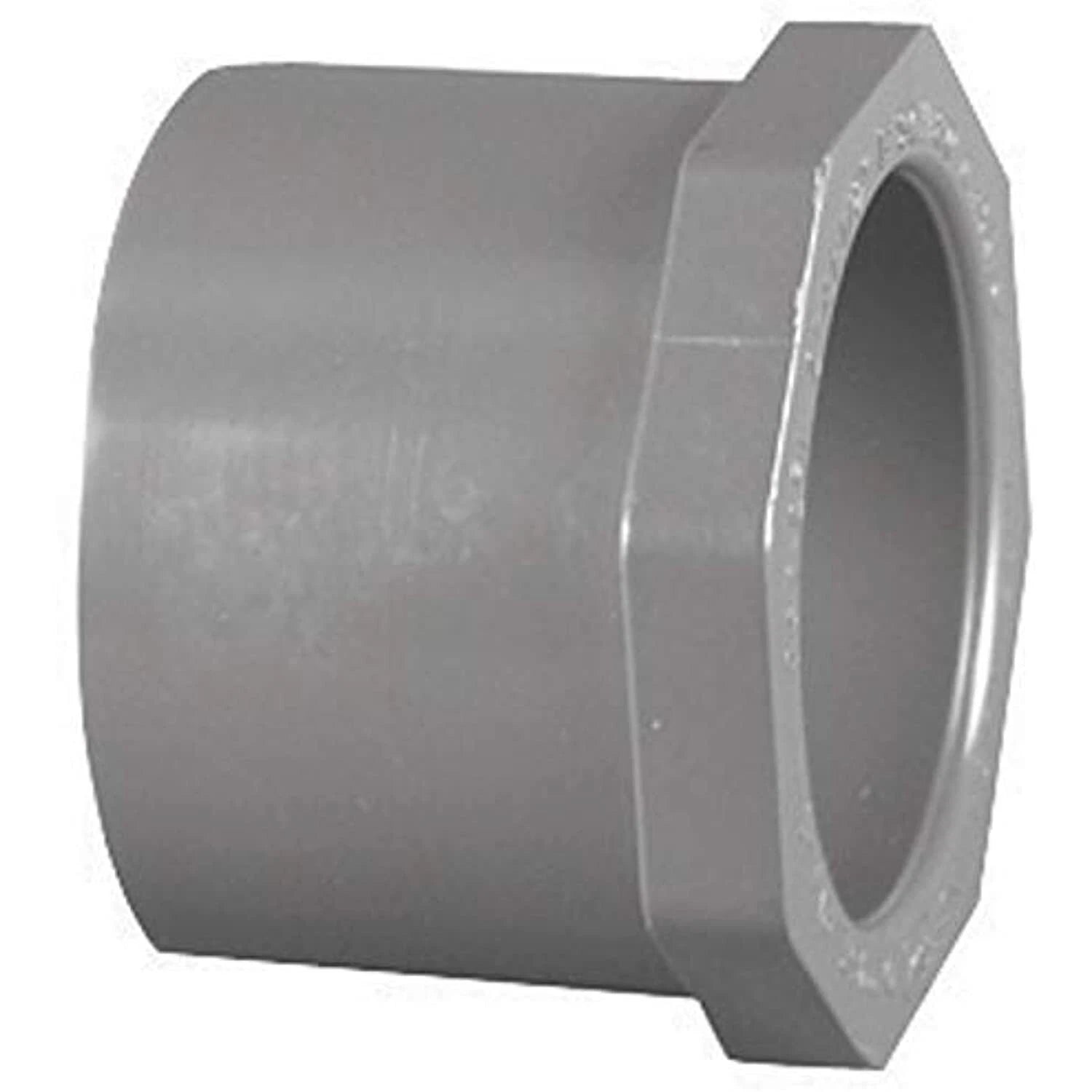

Charlotte Pipe PVC081072600 Reducing Bushing Schedule 80 1-1/2 in Spigot x 3/4 in Slip

Product Description

The Charlotte Pipe PVC081072600 is a reducing bushing made of PVC. This product is designed for pressure applications and is constructed with a thicker wall than Schedule 40 fittings. It provides high tensile and impact strength, making it durable for various installations. Additionally, it offers improved sound deadening qualities compared to PVC and ABS Foam Core.

• Fitting type: Reducing bushing
• Fitting schedule: Schedule 80
• Application: Pressure applications

Product Highlights

This fitting requires primer and solvent cement for installation.

Product Information

Standard Information

• Product Type: Reducing Bushing
• Material: PVC

Technical Specifications

• End 1 Type: Spigot
• End 2 Type: Slip
• End 1 Diameter: 1-1/2 inches
• End 2 Diameter: 3/4 inches
• Schedule Type Number: Schedule 80
• Maximum Temperature: 140 degrees F
• Maximum Pressure: 470 psi
• IAPMO Certified: Yes
• NSF Listed: Yes
