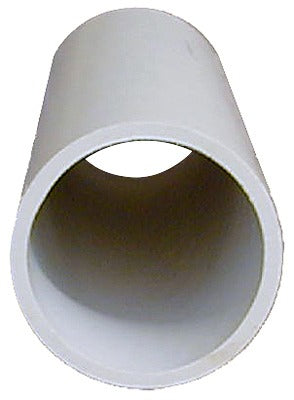

Charlotte Pipe PVC071000600HC Sch 40 Pvc Pipe 1-1/4 in

Product Description

The Charlotte Pipe Foundry Co. PVC071000600HC is a Schedule 40 solid-wall PVC pipe rated for both pressure and drain-waste-vent (DWV) applications. Each length measures 1-1/4 inches in diameter and 10 feet long, with plain ends ready for solvent-cement socket fittings. The pipe carries a 370 psi pressure rating, making it suitable for cold-water supply lines, irrigation systems, and DWV drain runs alike. It meets ASTM D-1785 for rigid PVC pressure pipe and ASTM D-2665 for PVC DWV pipe, and is certified to NSF Standard 14 and NSF Standard 61 for potable water contact. Licensed plumbers and pipefitters are the primary installers of this product.

This pipe is used in residential and light commercial plumbing systems where a single product must handle both pressure supply and gravity-drain service. Common applications include potable cold-water distribution, building drain and vent stacks, irrigation mainlines, and industrial process piping where PVC chemical resistance is required. The solid-wall construction and plain-end design accommodate a wide range of Schedule 40 socket fittings and transition couplings available in the same pipe schedule.

Key Features

• Schedule 40 solid-wall construction rated to 370 psi for cold-water pressure service
• Dual-listed for pressure and DWV applications under ASTM D-1785 and ASTM D-2665
• NSF Standard 14 and NSF Standard 61 certified for potable water contact
• Plain ends accept standard Schedule 40 solvent-cement socket fittings
• 1-1/4 inch nominal diameter, 10-foot length per stick
• Sold in packages of 5 sticks

Compatibility

Designed for use with standard Schedule 40 PVC socket fittings and solvent-cement couplings in 1-1/4 inch nominal size, consistent with ASTM D-1785 and ASTM D-2665 dimensional requirements.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and depressurize the line before cutting into any existing system. Use a fine-tooth saw or PVC pipe cutter to square the cut, deburr all cut ends, and apply the appropriate PVC primer and solvent cement for the service pressure and temperature rating. Do not use this pipe for hot-water supply lines or above the pressure and temperature ratings listed on the pipe markings.
