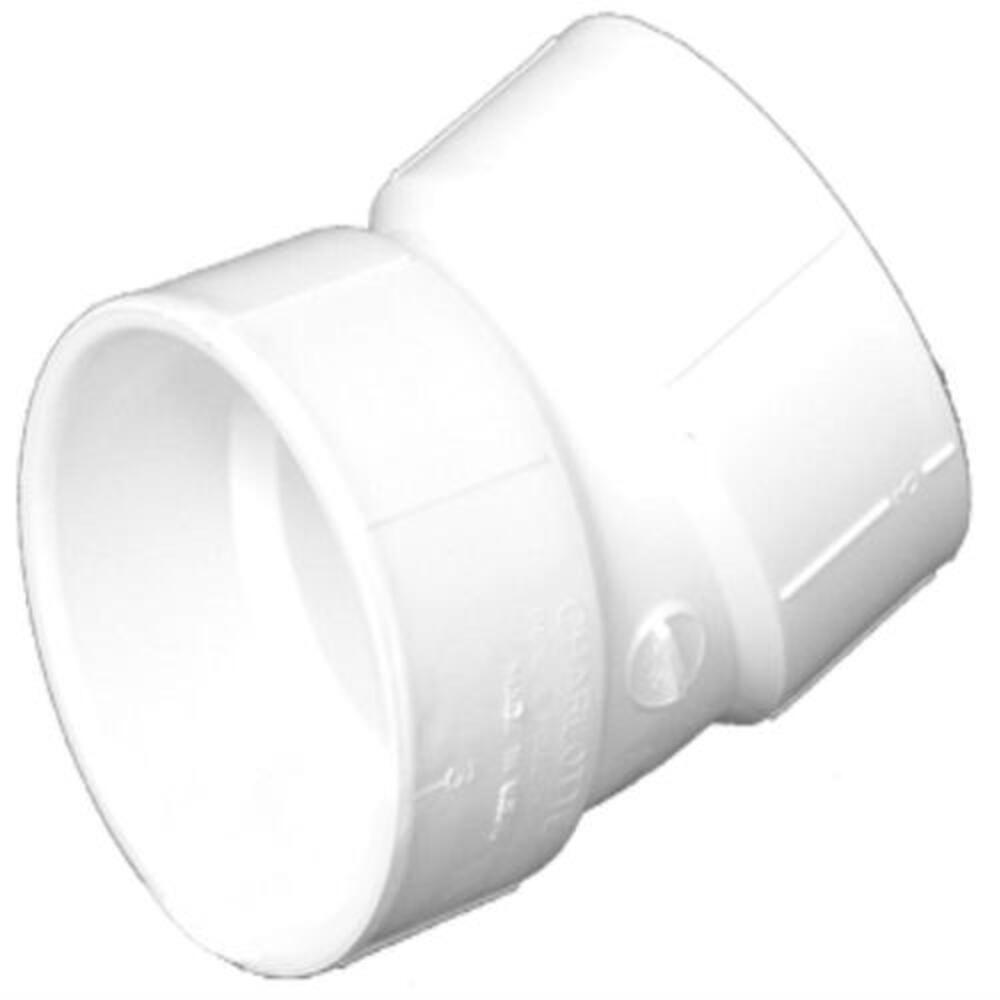

CHARLOTTE PIPE PVC003241800 10 in Hub x Hub PVC DWV 22-1/2-Degree Ell

Product Description

The CHARLOTTE PIPE PVC003241800 is a 10 inch hub x hub PVC DWV 22-1/2-degree ell designed for drainage, waste, and vent applications. This product is made from Schedule 40 PVC, offering durability with high tensile strength. It features better sound-deadening qualities than typical DWV foam core options. Installation requires primer and solvent cement for secure connections.

• Application: DWV (Drain, Waste and Vent)
• Connection Type: Hub x Hub
• Material: PVC

Product Highlights

This product is ideal for plumbing installations requiring dependable drainage and venting solutions. The 22-1/2 degree bend allows for versatile routing of pipes while maintaining a smooth flow.

Product Information

Standard Information

• Brand: CHARLOTTE PIPE
• Item ID: 0609PVC32410

Technical Specifications

• Model Number: PVC 00324 1800
• Connection Size: 10 x 10 inches
• Width: 13.755 inches
• Height: 11.568 inches
• Length: 15.704 inches
• Weight: 9.48 lb.
• Bend Angle: 22.5 degrees
• Color: White
• Operating Temperature Range: 32 to 140 degrees F
• Specifications Met: ASTM D2665, NSF Approved
